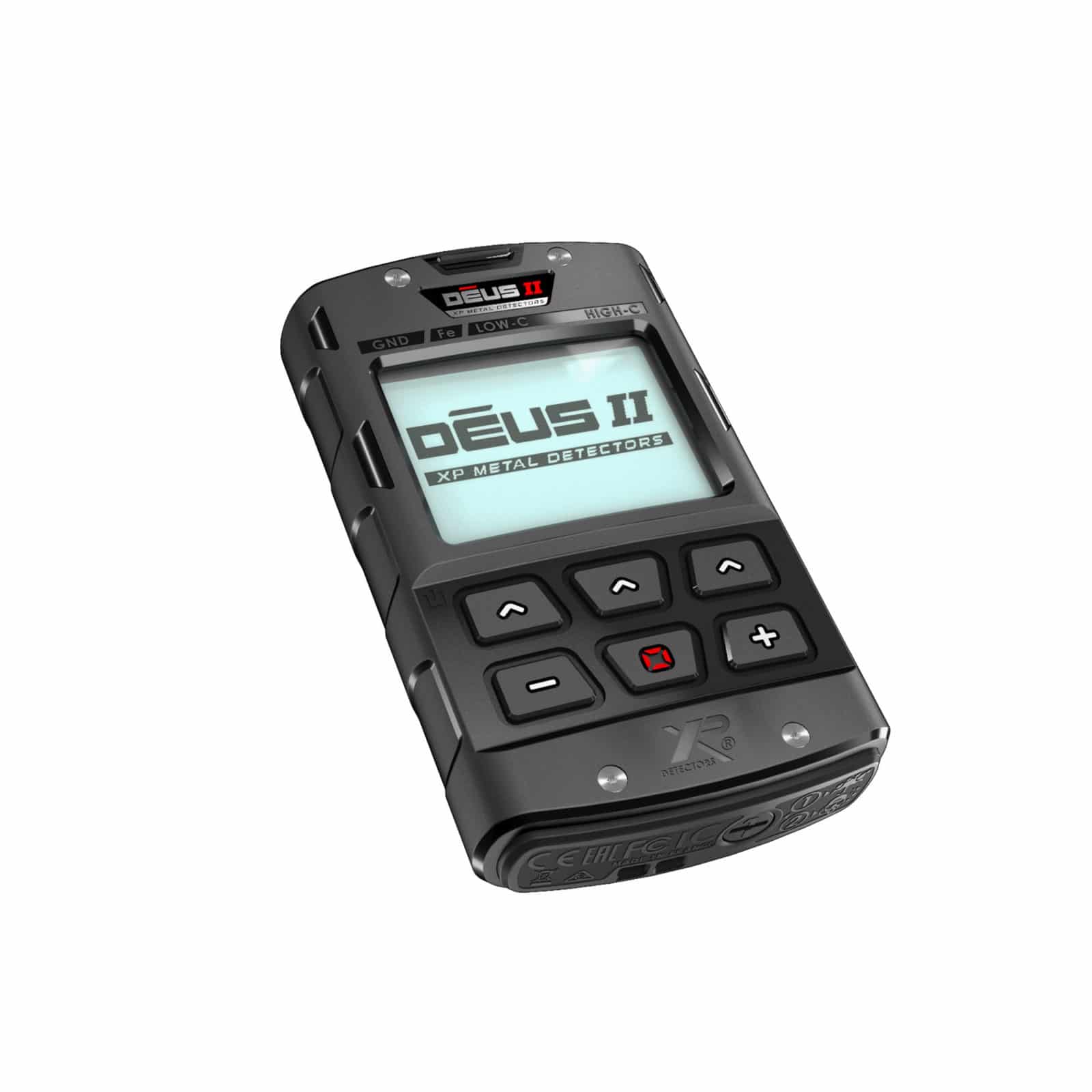

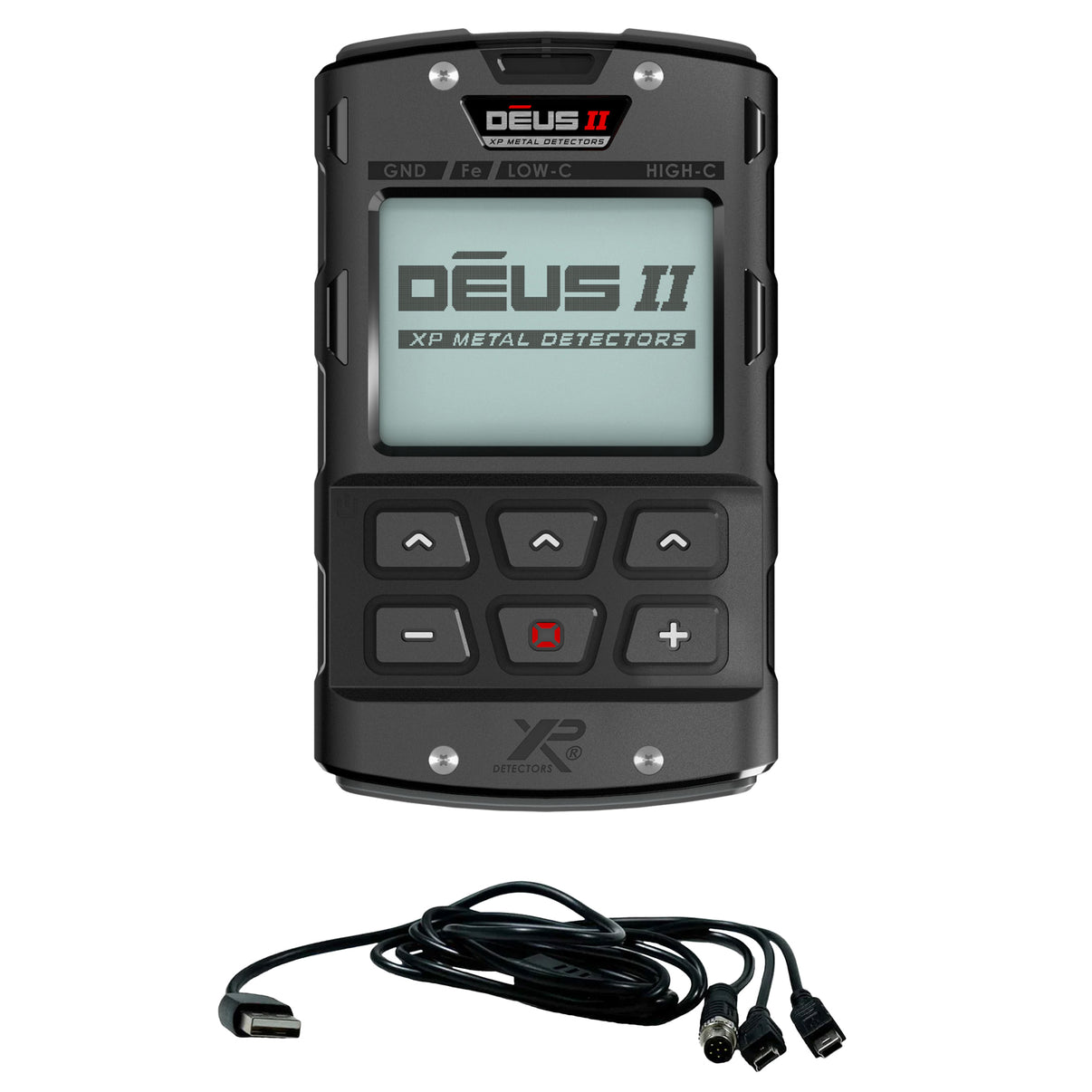

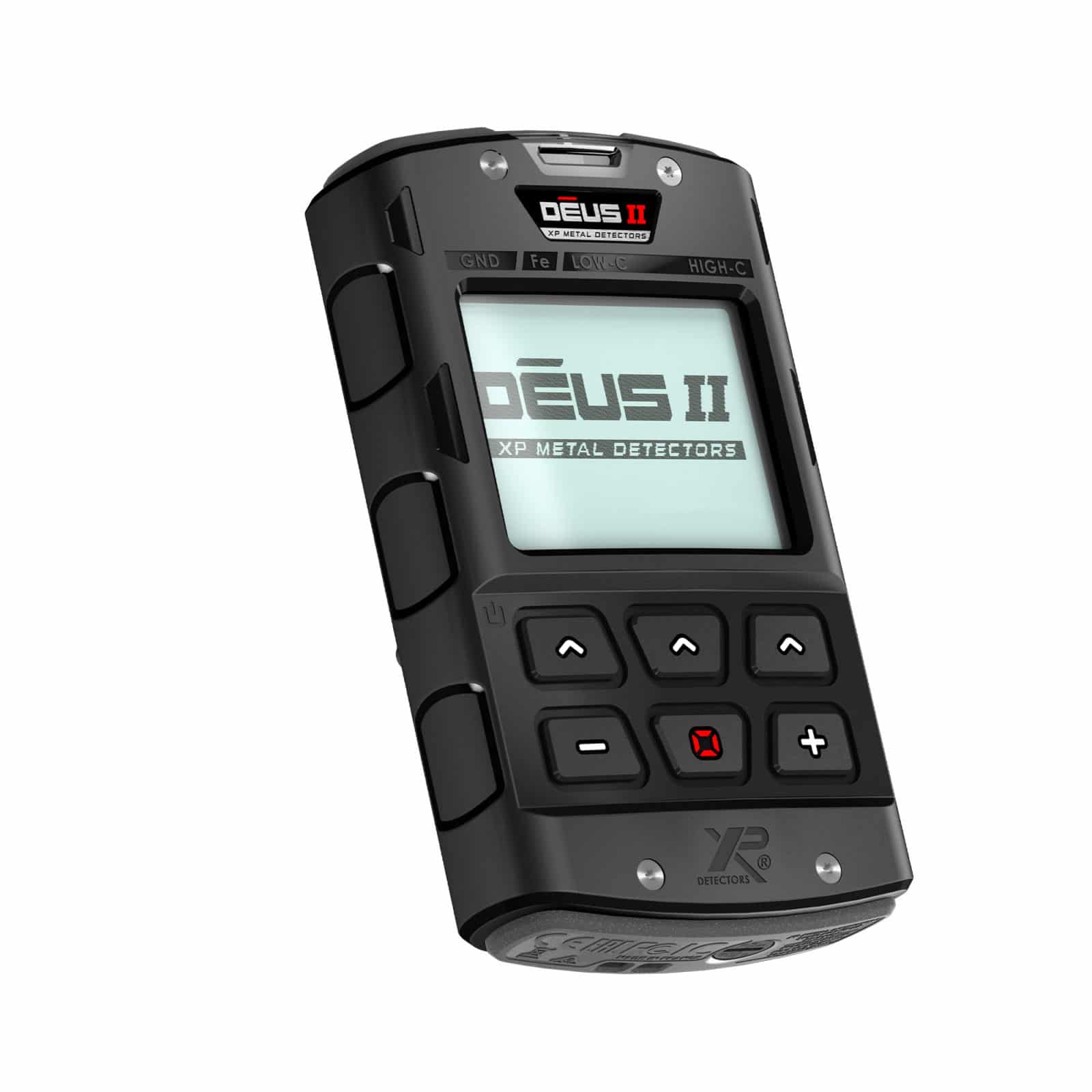

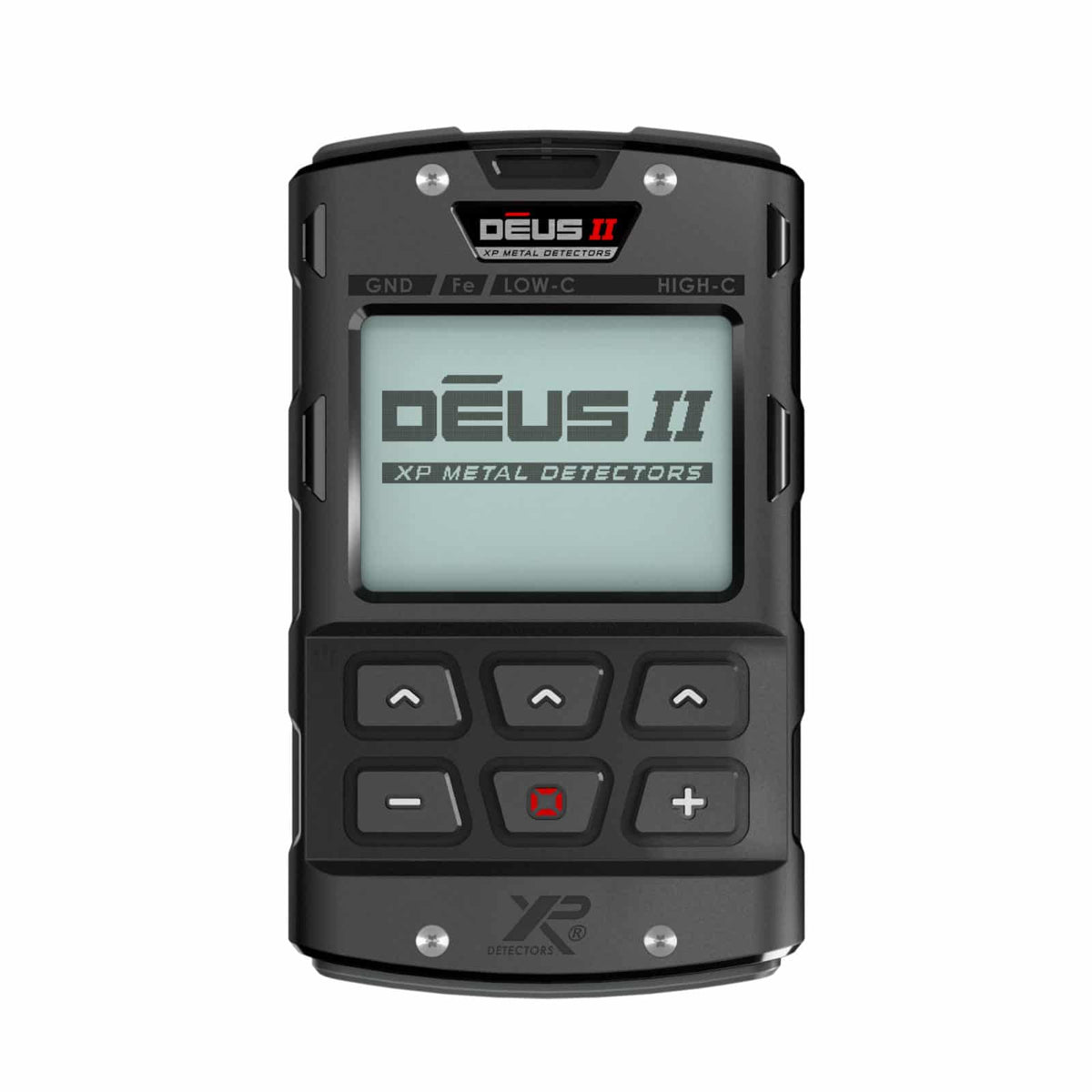

XP Deus II Back-lit LCD Display Remote Control

Yes, the Deus II remote control is optional when you pair the detector with WS6 Master headphones. The WS6 headphones function as a standalone control interface, giving you access to all 12 factory programs, ground balance, sensitivity, and discrimination settings through the headphone menu. The remote becomes necessary when you want stem-mounted controls, prefer a visual LCD readout over audio menus, or need to switch programs quickly without cycling through headphone buttons. Many beach hunters carry the remote in a pocket as a backup interface. Our XP metal detectors collection includes both remote-based and headphone-only Deus II configurations.

The XP Deus II remote ships with two waterproof caps for the rear connector port: a grey cap rated for land use or shallow submersion to 1 meter, and a red cap rated for deep underwater use to 20 meters. The grey cap is the default for park hunting, dry sand, and wading scenarios where the remote might get splashed but not fully submerged. The red cap provides higher pressure resistance for scuba diving, surf hunting, and river detecting where the remote will be underwater for extended periods. XP recommends swapping back to the grey cap after deep dives to prevent unnecessary wear on the red cap's seal. Both caps thread onto the same XP multi-feature connector on the back of the remote.

The Deus II remote battery delivers up to 25 hours of runtime on a full charge, though actual duration varies with your audio output settings. Running the remote's internal speaker at high volume drains the battery faster than using wireless headphones with the speaker muted. Backlight brightness and program-switching frequency also affect battery life. In our field use, a weekend of park hunting (12 to 15 hours total) typically leaves 30 to 40 percent charge remaining. The remote recharges fully in three hours via the included USB cable, and the rear XP connector displays battery level when you plug in the charging cable or check the remote's settings menu.

The Sensitive and Fast programs excel in iron-contaminated park sites where pull-tabs and nails outnumber coins. Sensitive (program 2) uses XP's FMF frequency-addition platform up to 40 kHz with reactivity set at 2.5, giving strong target separation without excessive chatter. Fast (program 4) raises reactivity to 3 and switches to pitch audio mode with square-wave processing, speeding up recovery time between targets. Both programs handle mineralized soil well, ensuring you won't lose depth in tough ground conditions. Explore the technologies behind modern detectors to see how FMF frequency stacking improves target separation.

Yes, the Deus II remote carries an IP68 waterproof rating certified to 20 meters (66 feet) depth, which covers recreational scuba diving, spearfishing, and surf hunting. Before submerging the remote beyond shallow wading depth, replace the grey connector cap with the red cap (included in the box). The red cap provides higher pressure resistance and maintains the IP68 seal under sustained submersion. After your dive, rinse the remote with fresh water to remove salt and sand, then swap back to the grey cap for land use. The remote's shockproof housing and sealed button membrane prevent water ingress through the keypad, and the back-lit LCD remains readable underwater in clear conditions.

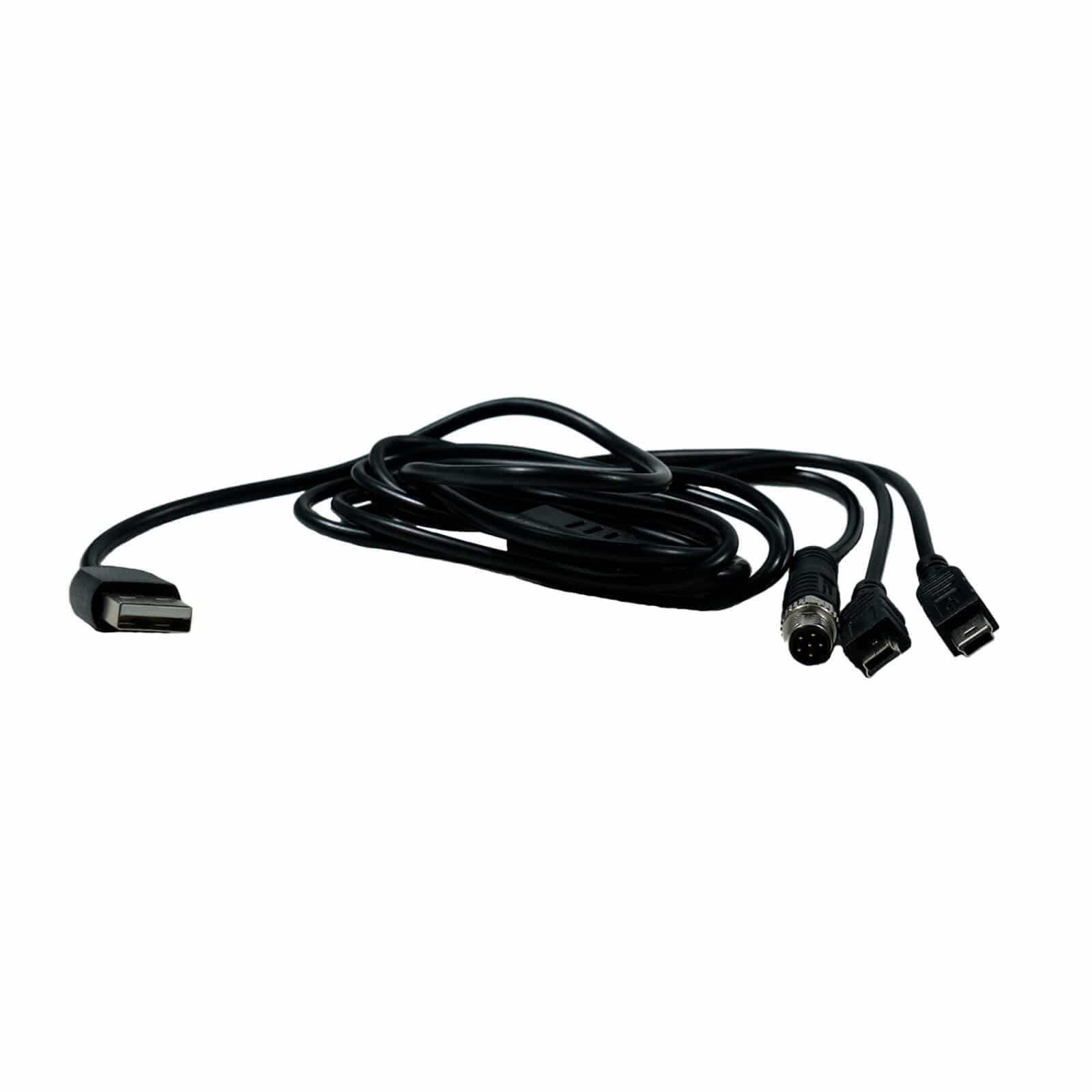

Yes, XP releases firmware updates for the Deus II remote through the XP Update Tool software (available on XP's website). Connect the remote to your computer using the included USB charging cable, which plugs into the multi-feature XP connector on the back of the remote. The Update Tool recognizes the remote, displays the current firmware version, and prompts you to install any available updates. Firmware updates typically add new features, refine program behavior, or improve wireless pairing stability with the WS6 headphones and MI-6 pinpointer. Keep your remote updated to match the latest coil and headphone firmware versions for optimal performance. Our team at Serious Detecting can walk you through the update process if you encounter pairing issues.

No, the Deus II remote is not compatible with the original XP Deus (Deus I) detector. The Deus II platform uses a different wireless protocol, expanded frequency range (4 to 45 kHz versus the Deus I's 4 to 28 kHz), and redesigned FMF processing that the Deus I hardware cannot support. The Deus I remote and Deus II remote are physically similar but use incompatible firmware and communication standards. If you own a Deus I and want to upgrade, you'll need the full Deus II system (remote, coil, and headphones) rather than swapping individual components.

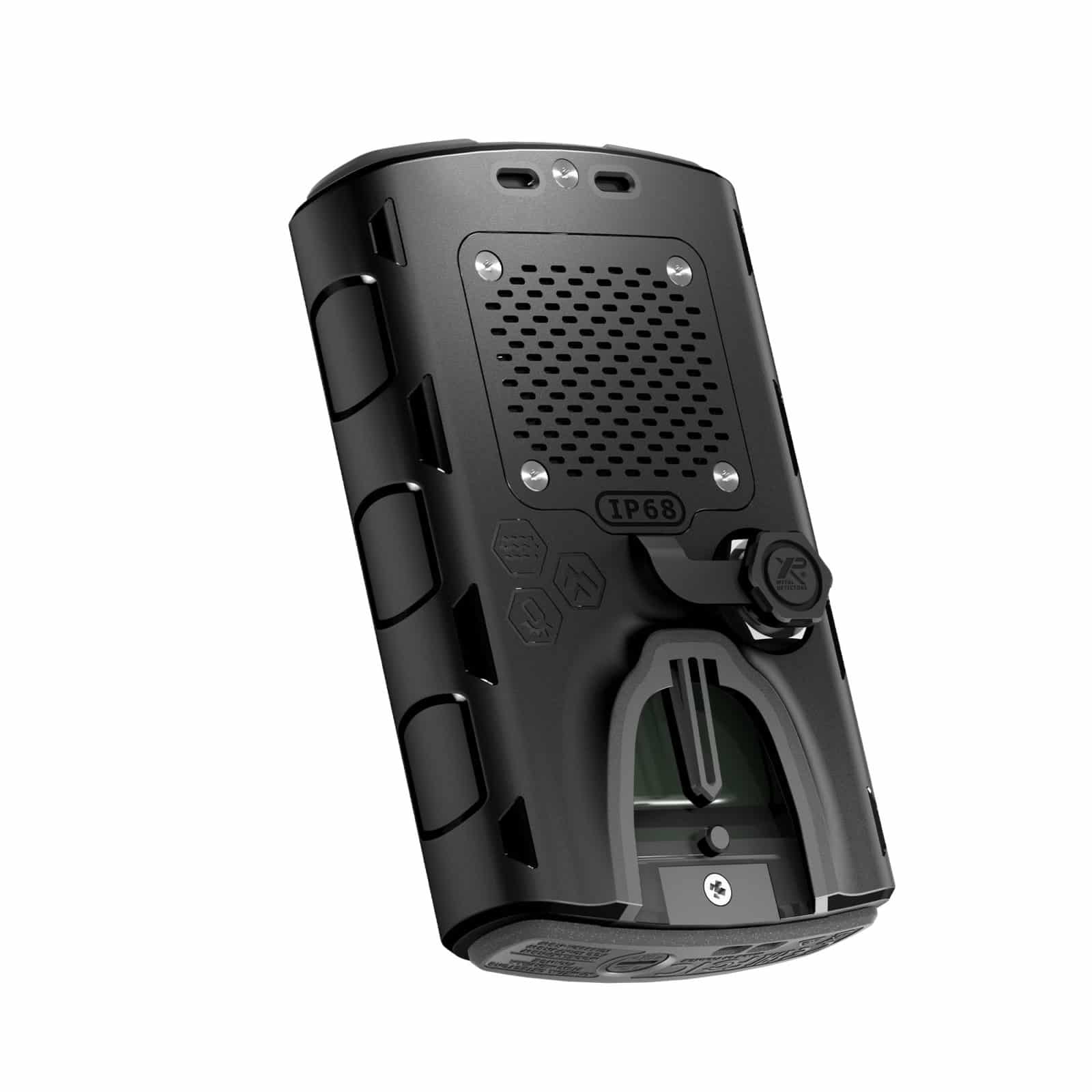

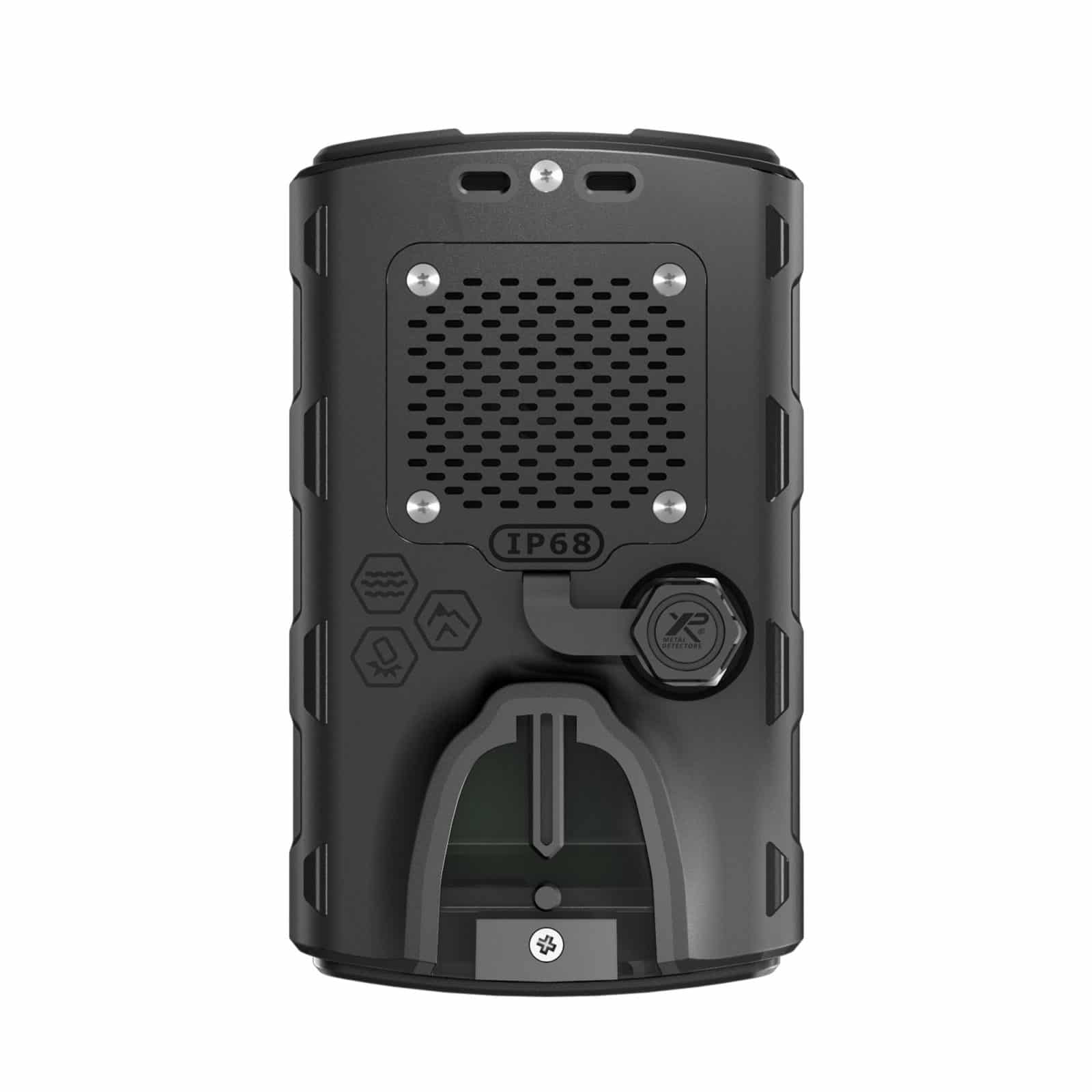

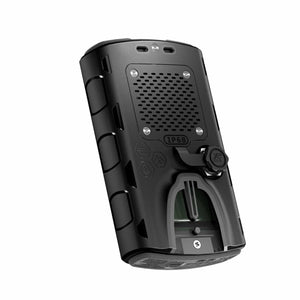

The Deus II remote features a quick-release clip on the back that attaches to the detector's lower shaft in under two seconds. Press your thumb on the bottom of the remote's clip to open the spring-loaded clamp, slide the clip over the shaft tube, then release to lock it in place. The clip grips round and oval shaft profiles without tools or straps. To remove the remote, press the thumb release again and slide the clip off the shaft. Many hunters mount the remote just above the coil cable connection for easy thumb access, while others prefer a mid-shaft position to reduce arm fatigue. Check our metal detector parts and accessories section for aftermarket shaft mounts if you want an angled or offset position.

FMF (Fast Multi-Frequency) mode transmits multiple frequencies simultaneously to improve target separation, depth, and ground balance across varying soil types. Eleven of the Deus II's 12 factory programs use FMF with different frequency combinations optimized for land or saltwater conditions. The Deus Mono program (program 7) operates on a single adjustable frequency from 4 to 45 kHz. This reduces electromagnetic interference (EMI) in urban areas where multiple simultaneous frequencies might cause instability, allowing you to isolate specific targets like small gold jewelry at 40 kHz or deep silver coins at 8 kHz.

Yes, the XP multi-feature connector on the back of the remote supports optional wired headsets (sold separately by XP). The connector accepts XP's proprietary wired headphone cable, which bypasses the wireless audio link and delivers sound directly to wired earbuds or over-ear headphones. Wired mode is useful in high-EMI environments where wireless pairing struggles, or when you prefer the simplicity of a physical connection. The remote also supports XP's BH-01 bone-conduction headphones through the same connector, which leave your ears open for situational awareness during roadside or group hunts. Note that wired headphones do not draw power from the remote's battery; they use the detector's audio output only.

The Deus II remote stores 12 user-configurable programs in addition to the 12 factory programs, giving you 24 total program slots. User programs let you save custom settings for specific sites: a low-reactivity, high-sensitivity setup for deep silver in open fields, a high-reactivity, narrow discrimination window for tot lots, or an all-metal configuration with manual ground balance for gold prospecting. Each user program retains your frequency selection (FMF or mono), audio mode (pitch, full tones, or multi-tones), discrimination pattern, sensitivity, reactivity, and ground-balance method. Access the user programs through the remote's menu system, and name each one (up to eight characters) for quick identification in the field.
