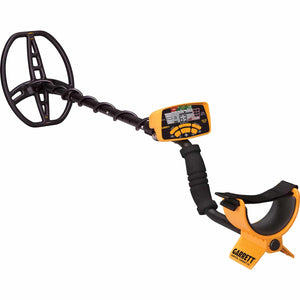

    • Garrett ACE 400 metal detector with black DD search coil, coiled cable, yellow control box, foam grip and arm cuff

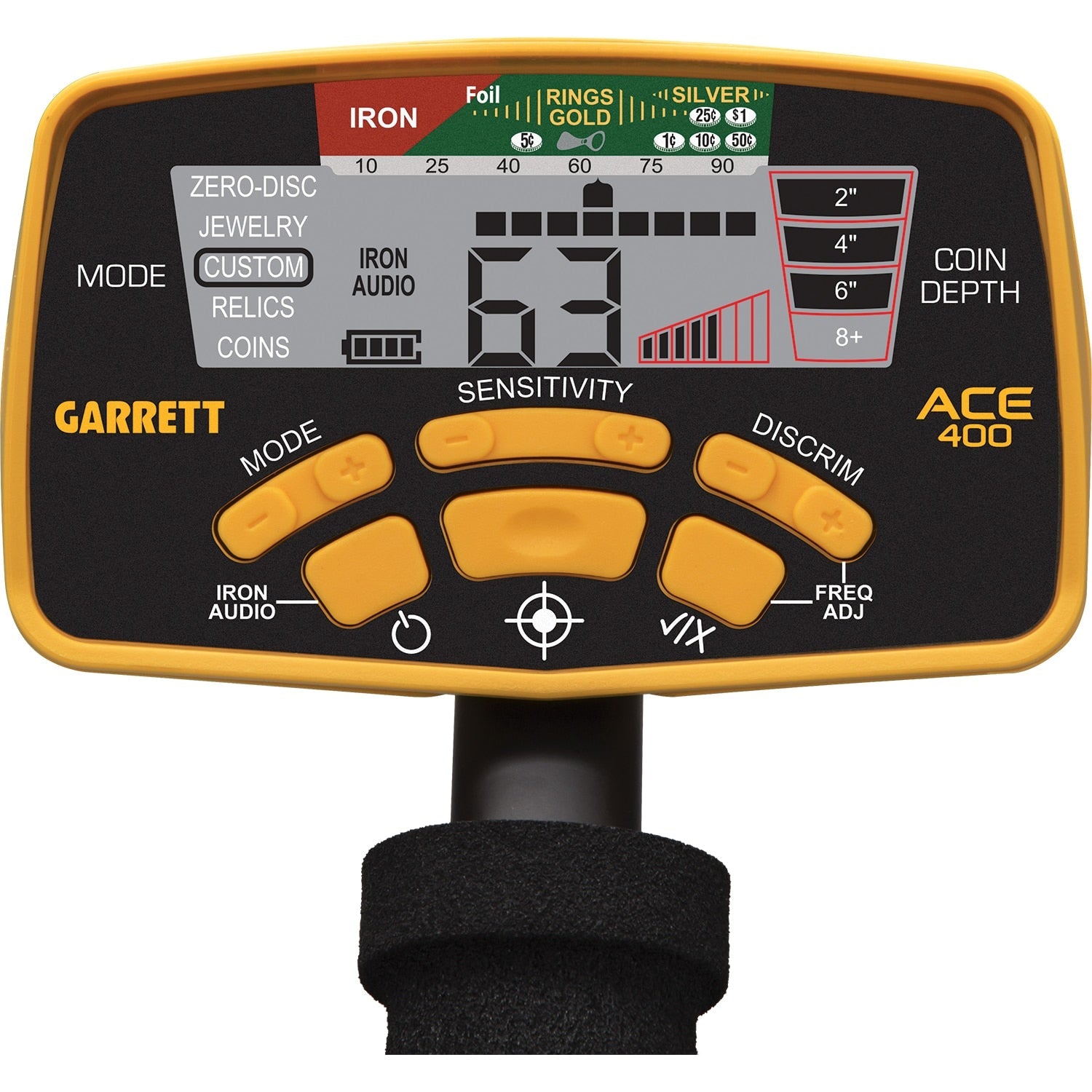

    • Garrett ACE 400 metal detector control box with LCD showing target ID 63, mode and coin depth, and yellow buttons

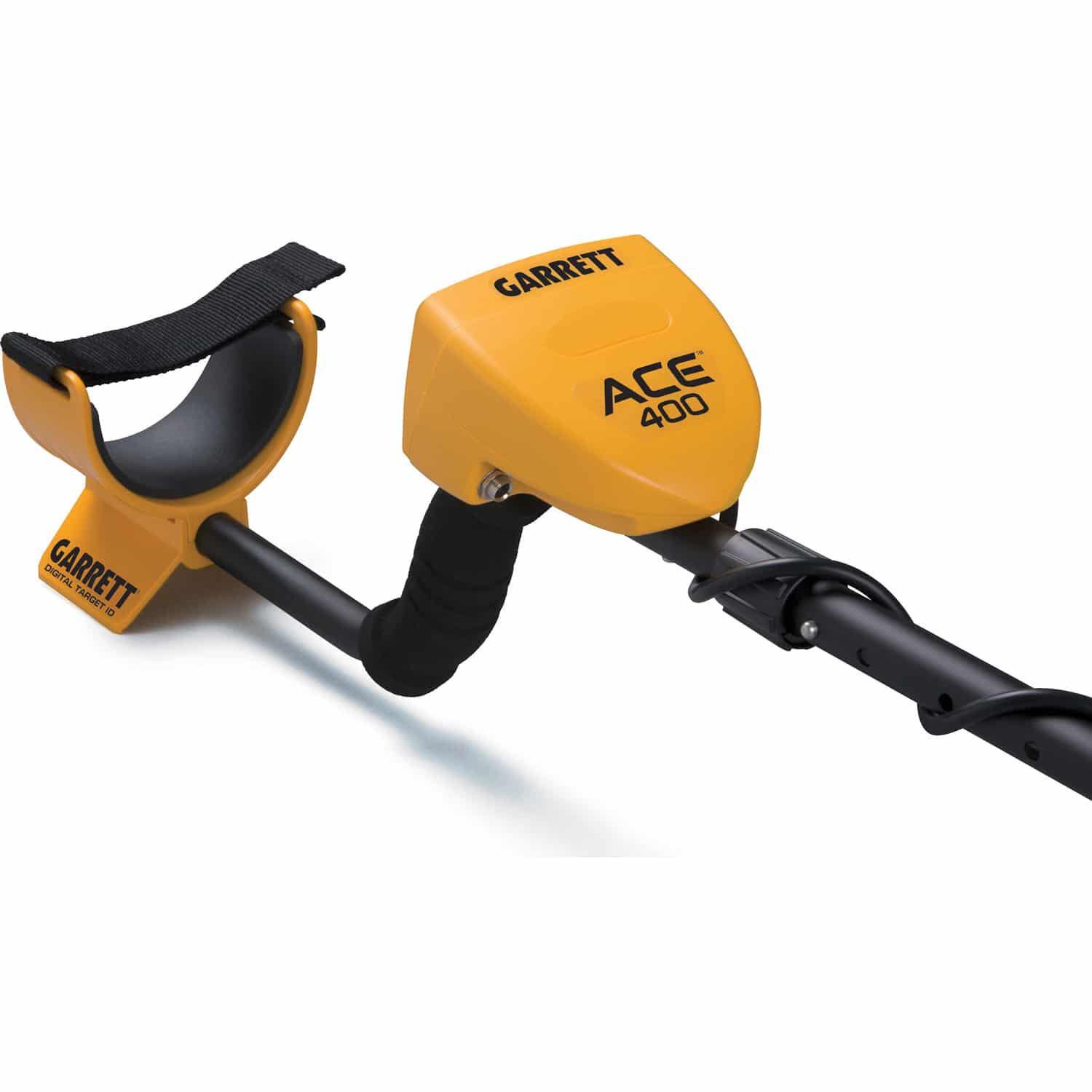

    • Garrett ACE 400 metal detector control box with yellow housing, padded black handle, arm cup with strap and shaft

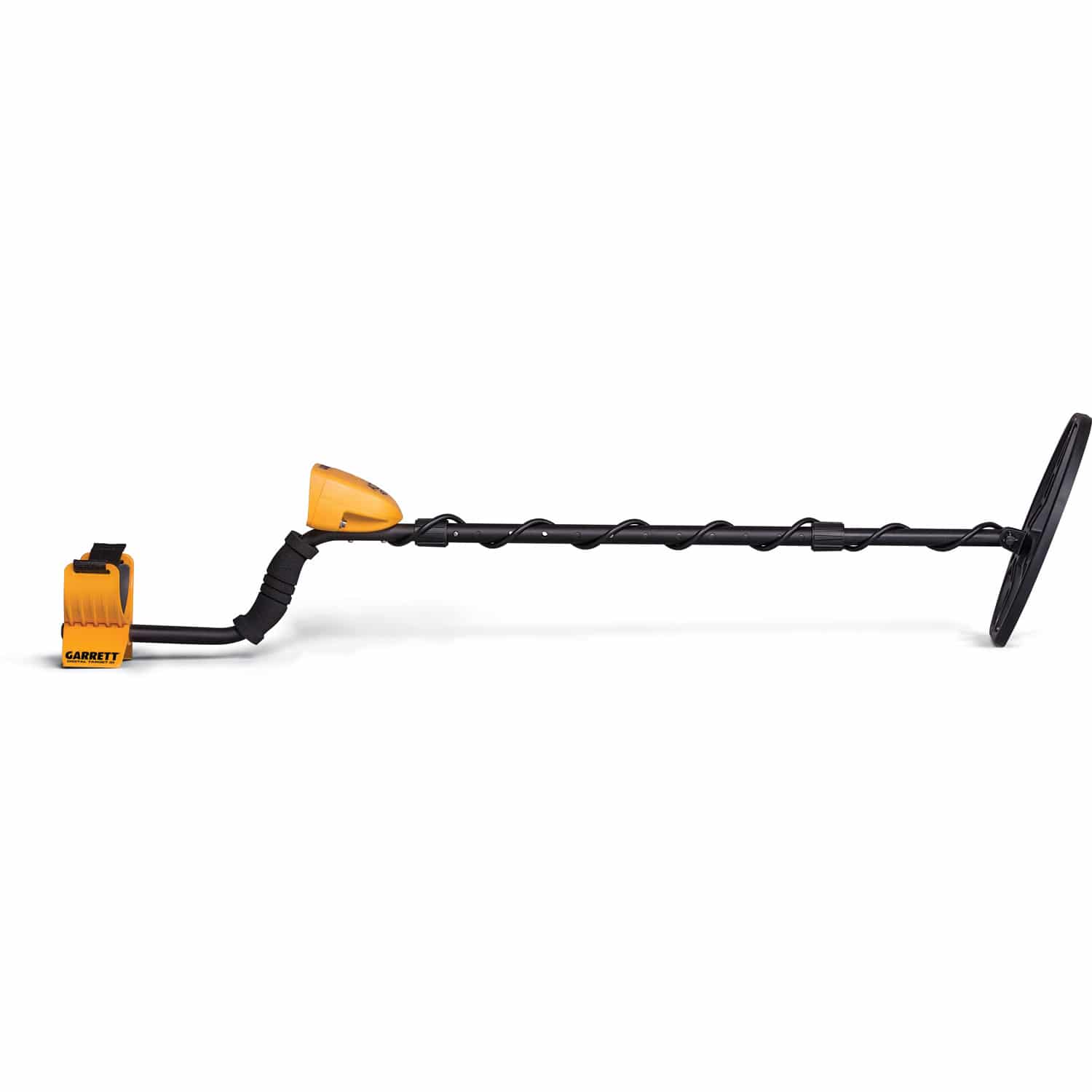

    • Side view of Garrett ACE 400 metal detector with yellow control box, black shaft with coiled cable and round search coil

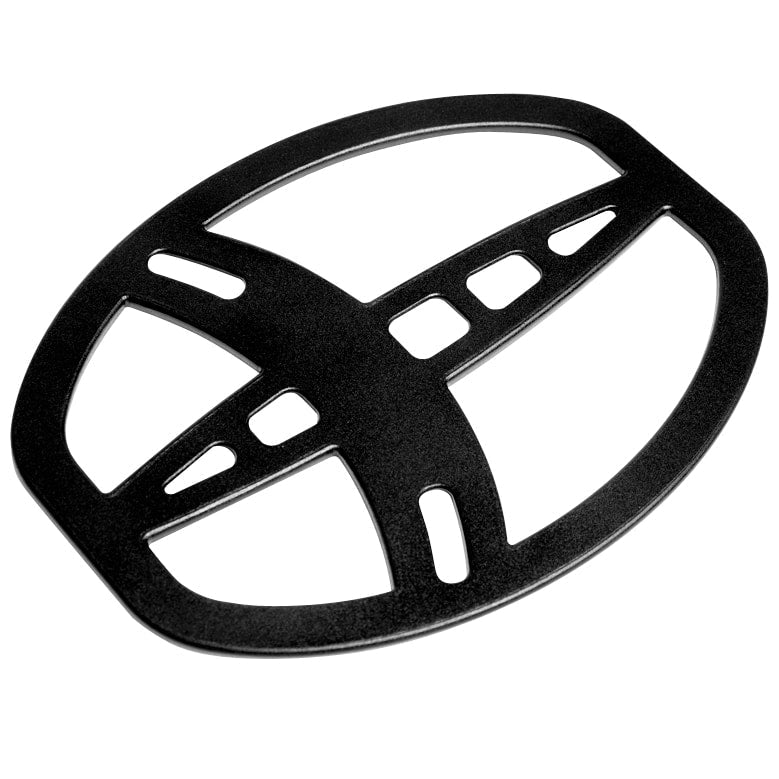

    • Black oval search coil cover with an X-shaped cross brace and slotted cutouts, a Garrett ACE 400 metal detector part
    • Woman wearing headphones sweeps a Garrett ACE 400 metal detector across the lawn in front of an old pink Victorian house
    • Smiling man kneeling outdoors holds up a found coin beside a Garrett ACE 400 metal detector lying on the grass
    • Garrett Metal Detectors green logo with bold GARRETT lettering between two horizontal green lines on white
    • Garrett ACE 400 metal detector logo with yellow-orange ACE 400 lettering and TM mark on a black background

    Open Box Garrett ACE 400 Metal Detector

    SKU: OBWS_1141260
    Sale Price $322.15 Regular Price $357.99
    10% Off

    Out of Stock

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping Contiguous U.S. on orders $99+.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    Best for

    Highlighted icons show the targets, ground and experience level this detector is built for.

    An open box Garrett ACE 400 brings Iron Audio, a 10 kHz frequency and the 8.5 x 11 inch DD searchcoil to older parks, farm fields and historical properties at a discount, with the full 3-year Garrett warranty. Garrett's ACE 400 box holds the 8.5 x 11 inch PROformance DD searchcoil and Garrett TreasureSound headphones; the searchcoil is submersible, but the control housing is not.

    Configuration
    Condition Open box
    Detector Garrett ACE 400 with camlock stem and arm cuff
    Coil 8.5 x 11 in PROformance DD, submersible, with coil cover
    Headphones Garrett TreasureSound headphones with in-line volume control
    Garrett ACE 400 metal detector with yellow control box, black shaft, and large search coil assembly

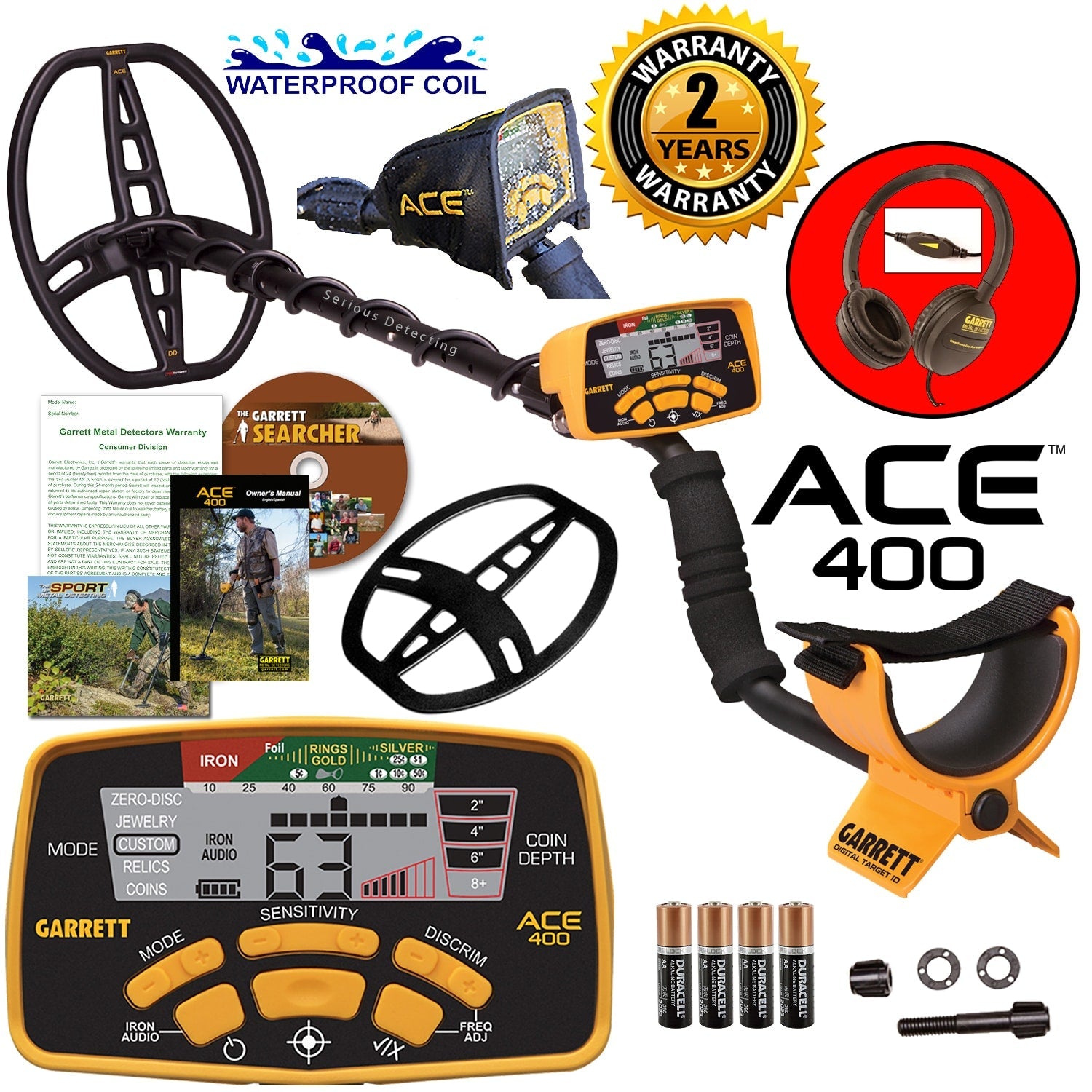

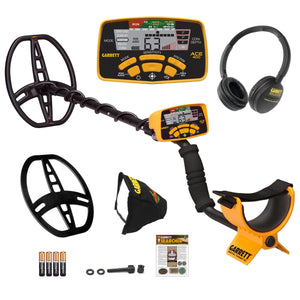

    What is in the box with this open box Garrett ACE 400

    Garrett's standard contents for the ACE 400 (Garrett part 1141260)

    • Garrett ACE 400 control housing with S-shaped stem, upper and lower stem with camlocks
    • Adjustable arm cuff and arm strap
    • 8.5 x 11 inch PROformance DD searchcoil (submersible)
    • Coil cover
    • Searchcoil hardware: bolt, nut and mounting washers
    • Garrett TreasureSound headphones with in-line volume control (Garrett part 1612500)
    • 4 AA batteries (installed)
    • Owner's manual

    About this open box Garrett ACE 400

    Open Box: Metal detectors with damaged or opened packaging, offered at a reduced price. Full manufacturer’s warranty included. Questions about a specific unit? Call us. The full 3-year Garrett limited parts and labor warranty applies, the same as on a new ACE 400. You can compare every open box and demo detector in our open box collection.

    Detectorist holding found coin beside yellow Garrett metal detector in overgrown field

    About the Garrett ACE 400

    The Garrett ACE 400 keeps the straightforward ACE layout and adds Iron Audio, a 10 kHz operating frequency and a larger 8.5 x 11 inch PROformance DD searchcoil than the 7 x 10 inch concentric coil on the Garrett ACE 300. Garrett calls it the top of the ACE family. What we like is that Iron Audio and the larger DD coil make it more interesting for someone who wants to learn how to evaluate complicated targets. We would choose the ACE 400 when you want a straightforward detector with better tools for investigating ground full of iron.

    Garrett ACE 400 search modes and key settings

    • Five search modes plus Pinpoint: Zero-Disc, Jewelry, Custom, Relics and Coins, with Coins as the factory default. Discrimination is one of the settings worth learning: know which target categories a mode rejects.
    • Iron Audio: lets you hear discriminated iron that is normally silenced, so a flat iron target such as a bottle cap or washer can give itself away before you dig.
    • Discrimination and Iron Check: four iron discrimination segments within a 12-pixel discrimination bar, set with DISCRIM (+/-) and the ELIM button for notching. Graphic Target Analyzing shows a target's conductivity together with the discrimination pattern.
    • Digital Target ID from 0 to 99: with three audio tone ID levels and a coin depth indicator.
    • Frequency and sensitivity: 10 kHz with four minor frequency adjustments (F1 to F4) to reduce interference from electrical sources or other detectors, and eight sensitivity levels.
    • Ground handling: the ACE 400 adjusts automatically for ground minerals, without a manual ground balance control.

    Water and beach use with the Garrett ACE 400

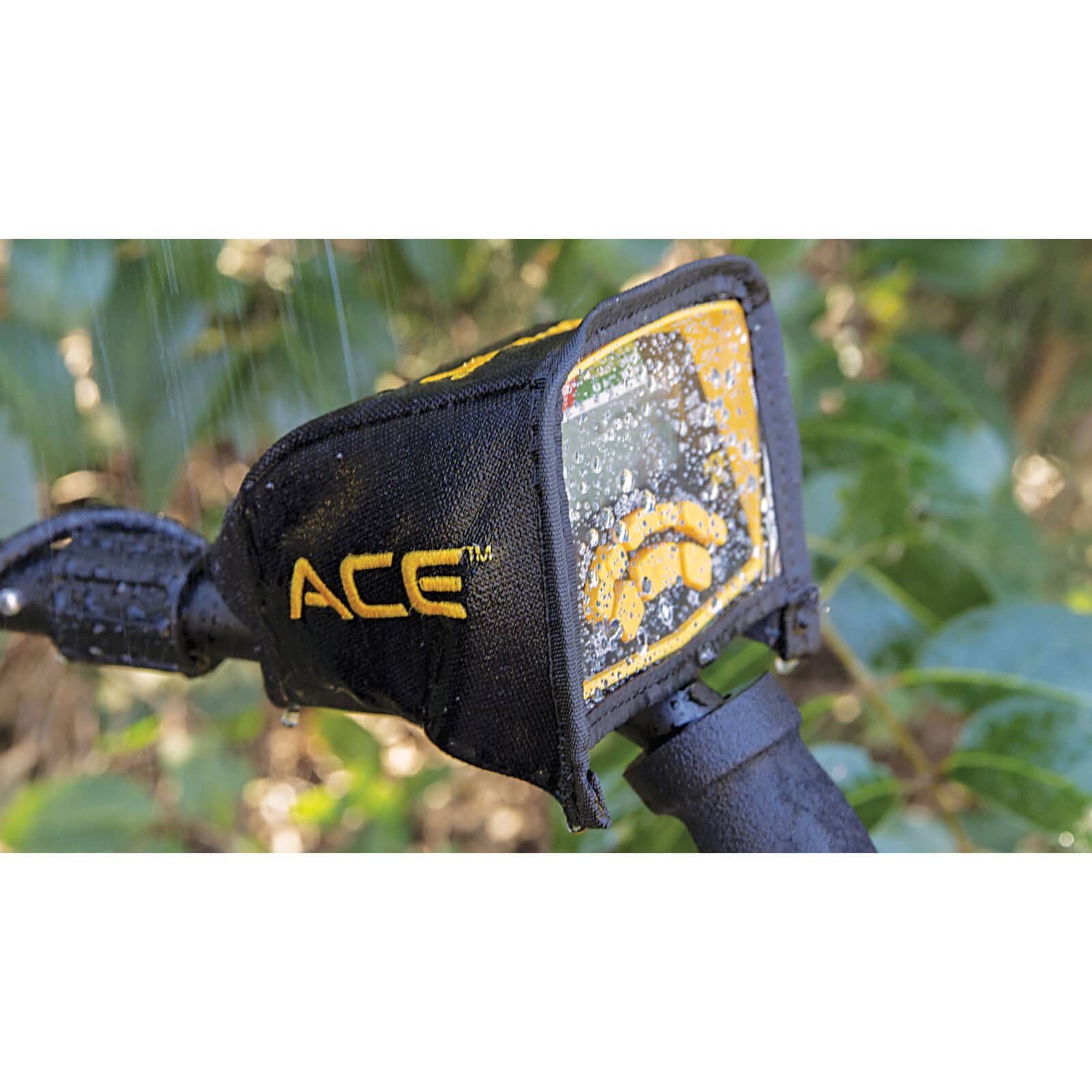

    Garrett's manual says the searchcoil is submersible, but the control housing and connectors are not, and it advises protecting the control housing from heavy mist, rain and blowing surf. The coil can work in shallow water as long as the control housing stays dry. For someone wanting simultaneous multi-frequency operation or regular saltwater beach capability, we would recommend the Garrett ACE Apex or the Garrett Vortex VX7; see also our beach metal detectors.

    Where the Garrett ACE 400 works well

    We recommend the ACE 400 to beginners and intermediate coin and relic hunters searching parks, older properties and fields. Picture an old yard with rusty bottle caps and the occasional coin: we would use Iron Audio to investigate questionable signals rather than digging on the target ID alone, with target ID, discrimination and electronic pinpointing to help sort the rest. See more relic and treasure metal detectors.

    Garrett ACE 400 compared with the AT Pro

    The Garrett AT Pro is fully submersible to 10 feet (3 m) and offers automatic and manual ground balance and Pro modes with proportional audio.

    Garrett ACE 400 coil, battery and build

    The 8.5 x 11 inch PROformance DD coil is larger than the ACE 300's 7 x 10 inch concentric coil, and learning how it behaves on your own sites is worth the time, along with Iron Audio, discrimination and sensitivity. Garrett lists the ACE 400 at 2.9 lbs (1.32 kg) with a stem that adjusts from 42 to 51 inches (1.06 to 1.29 m) and camlocks for stem stability. Four AA batteries run 20 to 40 hours depending on battery type and quality, a battery condition indicator shows the charge, and the headphone jack takes a 1/4 inch plug.

    One mistake to avoid with the Garrett ACE 400

    Assuming Iron Audio identifies every bottle cap correctly is the mistake we would warn about. Rusty iron can still produce misleading responses, so treat Iron Audio as one more clue on a questionable signal.

    Garrett ACE 400 specifications

    Specification Garrett ACE 400
    Part number Garrett 1141260
    Frequency 10 kHz, adjustable (four minor settings, F1 to F4)
    Search modes 5: Zero-Disc, Jewelry, Custom, Relics, Coins (factory default), plus Pinpoint
    Digital Target ID 0 to 99
    Audio tone ID levels 3
    Iron Audio Yes
    Iron discrimination 4 segments (Iron Check); 12-pixel discrimination bar
    Notch discrimination Adjustable
    Sensitivity 8 levels
    Ground handling Automatic adjustment for ground minerals
    Depth indicator Coin depth
    Searchcoil 8.5 x 11 in DD PROformance, submersible
    Water Searchcoil submersible; control housing and connectors not submersible
    Headphones Garrett TreasureSound headphones with in-line volume control; 1/4 in jack
    Length 42 to 51 in (1.06 to 1.29 m), camlocks
    Weight 2.9 lbs (1.32 kg)
    Power 4 AA (included), 20 to 40 hours, battery condition indicator
    Made in America
    Warranty 3 years, limited parts and labor

    Garrett covers the ACE 400 with a 3-year limited parts and labor warranty.

    For our full Garrett ACE 400 guide, settings advice and comparisons, see the Garrett ACE 400 collection.

    Product Specifications
    Specification Name Specification Value
    Detection
    Detector Type Treasure & Relic Detectors
    Skill Level Suitable for Kids and Beginner / Intermediate
    Detection Technology Very Low Frequency (VLF)
    Frequencies 10 kHz
    Number of Frequencies 1
    Frequency Type Single
    Search Modes Zero-Disc, Jewelry, Custom, Relics, and Coins
    Number of Search Modes 5
    Target ID 0-99
    Target ID Segments 0-99 (100 segments)
    Discrimination 12 segments
    Notch Filter Yes
    Sensitivity 1-8
    Ground Balance Fixed
    Pinpoint Mode Yes
    Depth Indicator Yes
    Controls & Audio
    Tone Options 3 tones
    Headphone Jack 1/4"
    Interchangeable Headphones Yes
    Wireless Audio None
    Coil
    Stock Coil PROformance 8.5" x 11" (22 x 28 cm) waterproof DD
    Coil Size 8.5" x 11" (22 x 28 cm)
    Coil Type Double-D (DD)
    Coil Shape Elliptical
    Coil Build Open
    Swappable Coil Yes
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof Coil
    Power
    Battery Type AA Alkaline
    Battery Quantity 4
    Battery Life 20-40 hours
    Rechargeable No
    Build
    Weight 2.9 lb / 1.32 kg
    Length (Min) 42 in (106 cm)
    Length (Max) 51 in (129 cm)
    Adjustable Shaft Yes
    Details
    Color Yellow
    Box & Warranty
    Warranty 3 Years
    Service & Support

    Warranty & Product Assurance

    At Serious Detecting, we stand behind the quality of every product we offer. Warranty coverage is provided directly by the manufacturer and may vary depending on the item. We’re here to help you understand your coverage and assist with the warranty process when needed. If you ever have questions or need support navigating a warranty claim, our team is happy to guide you.

    Technical Support & Expert Guidance

    Whether you’re setting up new gear, optimizing performance, or troubleshooting an issue in the field, our knowledgeable support team is here to help. We use this equipment ourselves, so we can offer real-world tips and step-by-step assistance to get you detecting with confidence. Message us anytime and we’ll do our best to get you pointed in the right direction fast.

    Manuals, Resources & Downloads

    Access user manuals, setup guides, safety tips, and technical documentation in our online support center. These resources help you understand your equipment, learn recommended settings, and get the most out of every hunt.

    Replacement Parts & Accessories

    Keep your equipment running strong with genuine parts and accessories. We carry coils, batteries, chargers, protective gear, digging tools, and more — fully compatible with your detector and backed by manufacturer standards. Not sure what fits your model? Just ask — we’re here to help.

    Training & Tutorials

    New to detecting or upgrading to advanced equipment? Our resource library includes helpful guides, maintenance tips, how-to videos, and expert advice from experienced detectorists. From ground balancing and coil choices to target ID basics and field technique, you’ll find the knowledge you need to level up your success.

    Customer Questions & Expert Answers

    Get real answers from outdoor explorers and our product experts. Browse questions about performance, features, and setup — or ask your own to make sure this gear fits your next adventure.

    Does an open box Garrett ACE 400 come with a warranty?

    Yes, an open box Garrett ACE 400 comes with a warranty: the full 3-year Garrett limited parts and labor warranty applies, the same as on a new ACE 400. Garrett's ACE 400 standard contents, including the Garrett TreasureSound headphones, are listed on the page. You can compare every open box and demo detector we have in our open box collection.

    Answered by John W. · September 2026

    What is the difference between the Garrett ACE 300 and ACE 400?

    The difference between the Garrett ACE 300 and ACE 400 is that the ACE 400 adds Iron Audio, runs at 10 kHz instead of 8 kHz, and uses an 8.5 x 11 inch PROformance DD searchcoil instead of the 7 x 10 inch concentric. Iron Audio lets you hear discriminated iron that is normally silenced, and the DD coil may help in some mineralized or trashy conditions. Both have a 0 to 99 Digital Target ID, adjustable frequency, five search modes and eight sensitivity levels. For trashy parks and relic sites the ACE 400 gives more tools, while for occasional coin hunting the Garrett ACE 300 may be all you need.

    Answered by Richard T. · September 2026

    Is the Garrett ACE 400 waterproof?

    The Garrett ACE 400 is not fully waterproof: Garrett's manual says the searchcoil is submersible, but the control housing and connectors are not, so the housing must stay dry. It adjusts automatically for ground minerals but has no adjustable ground balance, so we would not position it as a wet saltwater beach machine. For full submersion, the Garrett AT Pro is rated to 10 feet (3 meters).

    Answered by Dan P. · September 2026
