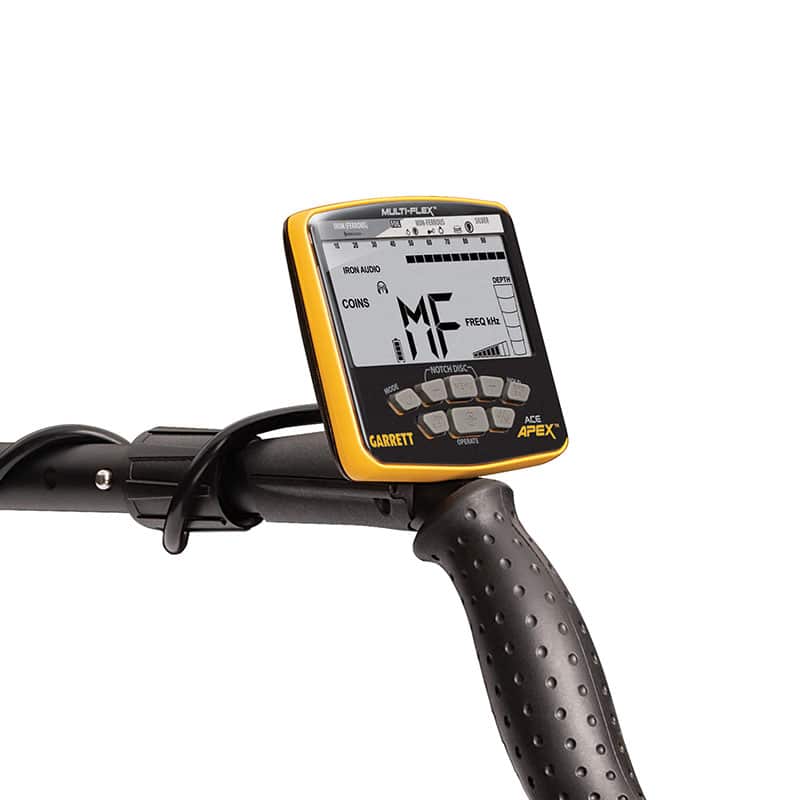

    • Garrett ACE Apex control box showing the MF multi-frequency indicator and target ID display
    • Garrett ACE Apex metal detector kit black and yellow with Multiflex coil, digital display control box on white background.

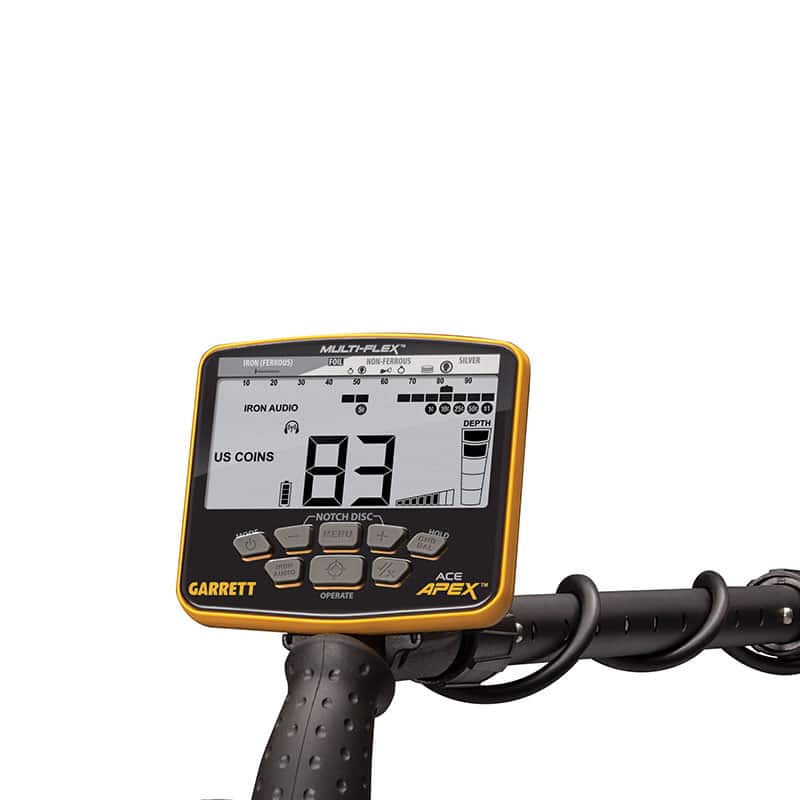

    • Garrett ACE Apex LCD showing target ID 83 with notch discrimination scale
    • Garrett ACE APEX Metal Detector Treasure Bundle
    Sale!

    Open Box Garrett ACE Apex Metal Detector with 6 x 11 in Viper Coil

    SKU: OBWS_1142320
    Sale Price $346.49 Regular Price $429.99

    Hurry up! Only 1 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    Best for

    Highlighted icons show the targets, ground and experience level this detector is built for.

    An open box Garrett ACE Apex with the 6 x 11 inch Viper coil comes at a reduced price with Garrett's 3-year warranty. We recommend it to beginners and intermediate detectorists searching parks, fields, freshwater locations and saltwater beaches, particularly when saltwater capability is useful but underwater submersion is not required. It runs four single frequencies, 5, 10, 15 and 20 kHz, plus Multi-Frequency and Multi-Salt, with built-in Z-Lynk wireless and a searchcoil and lower stem Garrett rates fully submersible.

    Configuration
    Condition Open box
    Detector Garrett ACE Apex with built-in Z-Lynk wireless transmitter and rechargeable lithium-ion battery
    Coil 6 x 11 in DD Multi-Flex Viper, submersible, with coil cover
    Audio Built-in speaker, Z-Lynk wireless transmitter and 1/8 in headphone jack
    Garrett ACE Apex metal detector with yellow-black control box, black coil, armrest, and accessories displayed

    What is in the box with this open box Garrett ACE Apex

    Garrett's standard contents for the ACE Apex (Garrett part 1142320)

    • Garrett ACE Apex control box on the S-shaped stem, with built-in Z-Lynk wireless transmitter and rechargeable lithium-ion battery
    • Armrest with armrest strap
    • Upper and lower stem, connected, with push-pin locks and camlocks
    • 6 x 11 inch DD Multi-Flex Viper searchcoil with coil cover installed
    • Searchcoil mounting hardware: nut, bolt and mounting washers
    • Micro-USB charging cable
    • Quick-Start Guide

    About this open box Garrett ACE Apex

    Open Box: Metal detectors with damaged or opened packaging, offered at a reduced price. Full manufacturer’s warranty included. Questions about a specific unit? Call us. Garrett's 3-year warranty applies, the same as on a new ACE Apex. Every open box and demo detector we have is in our open box collection.

    Garrett ACE Apex control box with yellow frame above the black handgrip, backlit display showing US Coins mode with target ID 83, coil cable wrapped around the shaft

    Multi-Frequency, Multi-Salt and single frequencies

    Multi-Frequency runs several frequencies at once. For someone who normally searches Michigan parks and takes a vacation to Florida, we would use Multi-Frequency at home and Multi-Salt on wet ocean sand. Multi-Salt, labeled MS on the menu, uses a blend of frequencies to help overcome the negative effects of saltwater beaches, where sand saturated with conductive salt water produces signals that interfere with buried metal. Garrett notes that lower frequencies generally do better on larger, more conductive targets such as large silver coins, and higher frequencies on smaller, less conductive targets such as hammered silver coins and gold nuggets.

    Ground balance, Iron Audio and target ID

    • Ground balance: automatic, with 175 points of ground balance resolution ranging from ferrous ground to saltwater, the same resolution Garrett gives the Garrett AT Max. Moving from mild park soil to more mineralized ground, ground balancing helps compensate for the soil's own signals, but severe ground can still reduce detection performance.
    • Iron Audio: lets you hear discriminated iron that is normally silenced, which Garrett says helps identify complex iron objects such as bottle caps.
    • Iron Volume: eight adjustments lower the volume of iron targets while non-ferrous targets stay at normal volume.
    • Discrimination and search modes: twenty pixels of notch discrimination, including eight pixels of iron, and six search modes: Zero, Coins, US Coins (with coin icons), Jewelry, Relics and Custom, plus Pinpoint.
    • Target ID and audio: large 0 to 99 Target ID numbers on a backlit LCD, five audible tones, a target depth indicator and a hybrid audio system that adds subtle proportional audio for faint targets to the binary audio of earlier ACE detectors.

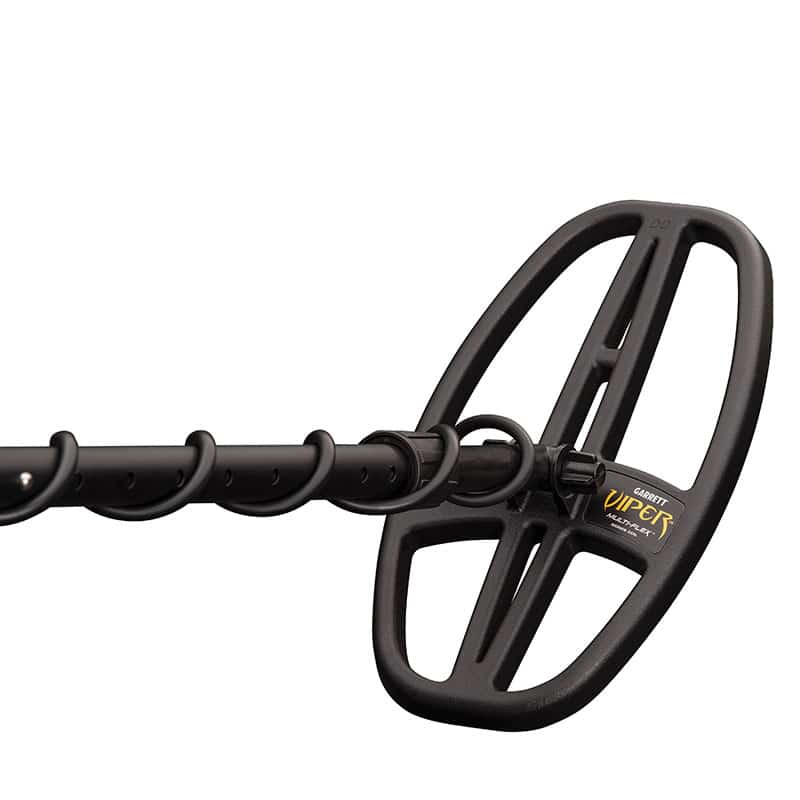

    The 6 x 11 inch DD Viper searchcoil

    Garrett describes the 6 x 11 inch DD Multi-Flex Viper as a narrow coil with excellent maneuverability and depth that allows excellent target separation in trashy areas, with a sleek profile that slides into cramped areas between rocks, roots and crop stubble. It balances ground coverage and maneuverability: the 11 inch length covers a reasonable amount of ground with each sweep, while the narrow 6 inch width works around obstacles and closely spaced targets. The entire coil can be submerged, the coil cover protects it from scratches and wear, it weighs 1.3 lbs out of the box, and it works only with Garrett Apex detectors. See our metal detector search coils.

    Z-Lynk wireless audio on the Garrett ACE Apex

    Every ACE Apex has a built-in Z-Lynk wireless transmitter, which Garrett says is up to 6 times faster than Bluetooth. Garrett says any Garrett Z-Lynk wireless product is compatible with the ACE Apex, including Garrett Z-Lynk wireless headphones and the PRO-Pointer AT Z-Lynk pinpointer. Bluetooth headphones do not work with it, because Z-Lynk is Garrett's own technology, and Garrett's WR-1 Z-Lynk receiver module lets wired headphones work wirelessly. Wired headphones plug into the 1/8 inch jack, and a 1/4 inch plug needs a 1/8 to 1/4 inch adapter; the volume control covers both the built-in speaker and headphones. See our metal detector headphones.

    Water and beach use with the Garrett ACE Apex

    Garrett says the ACE Apex searchcoil and lower stem are fully submersible, but the control box should never be submerged. The control box is rainproof: Garrett builds it to keep rain and blowing rain out of the housing, provided the rubber covers are firmly seated in the USB and headphone openings. That makes the ACE Apex a good fit for wet sand, the water's edge and shallow creeks and swimming areas, with the control box kept dry and above the waterline. For someone who needs a fully submersible detector, we recommend the Garrett Vortex VX7 or VX9; see our waterproof metal detectors.

    Battery, weight and build

    A built-in rechargeable lithium-ion battery gives up to approximately 15 hours of use, depending on settings. Garrett lists a recharge time of 4 hours from any USB port with the detector off, longer if it is on, and recommends charging for 4 to 5 hours before first use; the rapid charging system needs 500 mA for the fastest charge. The aluminum stem adjusts from 40 to 53 inches (1.016 to 1.35 m) with push-pin locks and camlocks. Garrett lists the ACE Apex at 2.5 lbs (1.13 kg) with the Viper coil. Garrett makes its metal detectors in America.

    Getting started with the Garrett ACE Apex

    We would start with a suitable factory search mode, such as Coins, then learn the difference between Multi-Frequency and Multi-Salt, ground balance, Iron Audio and discrimination. One mistake to avoid is assuming that because the searchcoil is waterproof, the entire detector can be submerged: the ACE Apex control housing is not designed for underwater submersion. Our Garrett Apex review covers the platform's background in more depth.

    Garrett ACE Apex specifications

    Specification Garrett ACE Apex
    Garrett part 1142320
    Technology Multi-Flex
    Frequencies 5, 10, 15 and 20 kHz single; Multi-Frequency and Multi-Salt simultaneous
    Frequency channels 8 per frequency (48 adjustments)
    Search modes 6: Zero, Coins, US Coins, Jewelry, Relics, Custom, plus Pinpoint
    Ground balance Automatic, high resolution, 175 points, ferrous ground to saltwater
    Discrimination 20 notch pixels, including 8 iron pixels
    Iron Audio and Iron Volume Iron Audio; 8 Iron Volume adjustments
    Sensitivity 8 adjustments
    Target ID 0 to 99, large numbers on a backlit LCD; depth indicator
    Audio 5 tones, hybrid binary and proportional; built-in speaker; 1/8 in headphone jack
    Wireless Built-in Z-Lynk transmitter, up to 6 times faster than Bluetooth
    Searchcoil 6 x 11 in DD Multi-Flex Viper, 1.3 lbs out of the box, cover included
    Water Searchcoil and lower stem fully submersible; rainproof control box, never submerged
    Length 40 to 53 in (1.016 to 1.35 m)
    Weight 2.5 lbs (1.13 kg) with the Viper coil
    Battery Built-in rechargeable lithium-ion, up to approximately 15 hours; Micro-USB, 4 hours recharge with the detector off
    Made in America
    Warranty 3 years, limited parts and labor

    Garrett covers the ACE Apex with a 3-year limited warranty covering defects in materials and workmanship.

    For our full Garrett ACE Apex guide, settings advice and comparisons, see the Garrett ACE Apex collection.

    Product Specifications
    Specification Name Specification Value
    Detection
    Detector Type Treasure & Relic Detectors
    Skill Level Beginner / Intermediate
    Detection Technology Multi-Frequency (MF or SMF)
    Brand Technology Multi-Flex
    Frequencies 5 kHz, 10 kHz, 15 kHz, and 20 kHz
    Number of Frequencies 6
    Frequency Type Simultaneous and Selectable
    Search Modes Zero, Coins, US Coins, Jewelry, Relics, and Custom
    Number of Search Modes 6
    All Metal Mode No
    Target ID 0-99
    Target ID Segments 0-99 (100 segments)
    Programmable Target ID Yes
    Discrimination 20 segments
    Sensitivity 1-8
    Ground Balance Automatic
    Pinpoint Mode Yes
    Depth Indicator Yes
    Controls & Audio
    Display LCD
    Backlit Display Yes
    Tone Options 5 tones
    Adjustable Iron Volume Yes
    Volume Control Yes
    Threshold None
    Headphone Jack 1/8"
    Wireless Audio Compatible
    Wireless Audio System Garrett Z-Lynk
    Bluetooth No
    Coil
    Stock Coil Viper 6" x 11" (15 x 28 cm) waterproof DD
    Coil Size 6" x 11" (15 x 28 cm)
    Coil Type Double-D (DD)
    Coil Shape Elliptical
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof Coil and Water Resistant
    Power
    Battery Type Lithium-Ion
    Battery Quantity 1
    Battery Life 15 hours
    Rechargeable Yes
    Charge Time 4 hours
    Build
    Weight 2.5 lb / 1.13 kg
    Length (Min) 40 in (102 cm)
    Length (Max) 53 in (135 cm)
    Adjustable Shaft Yes
    Armrest Adjustable
    Armrest Strap Yes
    Details
    Color Black
    Box & Warranty
    Warranty 3 Years
    Service & Support

    Warranty & Product Assurance

    At Serious Detecting, we stand behind the quality of every product we offer. Warranty coverage is provided directly by the manufacturer and may vary depending on the item. We’re here to help you understand your coverage and assist with the warranty process when needed. If you ever have questions or need support navigating a warranty claim, our team is happy to guide you.

    Technical Support & Expert Guidance

    Whether you’re setting up new gear, optimizing performance, or troubleshooting an issue in the field, our knowledgeable support team is here to help. We use this equipment ourselves, so we can offer real-world tips and step-by-step assistance to get you detecting with confidence. Message us anytime and we’ll do our best to get you pointed in the right direction fast.

    Manuals, Resources & Downloads

    Access user manuals, setup guides, safety tips, and technical documentation in our online support center. These resources help you understand your equipment, learn recommended settings, and get the most out of every hunt.

    Replacement Parts & Accessories

    Keep your equipment running strong with genuine parts and accessories. We carry coils, batteries, chargers, protective gear, digging tools, and more — fully compatible with your detector and backed by manufacturer standards. Not sure what fits your model? Just ask — we’re here to help.

    Training & Tutorials

    New to detecting or upgrading to advanced equipment? Our resource library includes helpful guides, maintenance tips, how-to videos, and expert advice from experienced detectorists. From ground balancing and coil choices to target ID basics and field technique, you’ll find the knowledge you need to level up your success.

    Customer Questions & Expert Answers

    Get real answers from outdoor explorers and our product experts. Browse questions about performance, features, and setup — or ask your own to make sure this gear fits your next adventure.

    Does an open box Garrett ACE Apex come with a warranty?

    Yes, an open box Garrett ACE Apex comes with a warranty: the full Garrett manufacturer warranty applies, the same as on a new ACE Apex, and Garrett now gives its detectors a 3-year warranty. See all our used and open box metal detectors.

    Answered by John W. · September 2026

    What is the difference between the Garrett ACE Apex Viper coil and Raider coil?

    The difference between the Garrett ACE Apex Viper coil and Raider coil is size: the Viper is a 6 x 11 inch DD and the Raider an 8.5 x 11 inch coil. The Viper is the tighter of the two, separating targets well in trashy sites and slipping between roots and rocks at the cost of some coverage per swing. The Raider covers more ground per swing in open fields. Our Garrett ACE Apex collection has both configurations.

    Answered by Dan P. · September 2026

    Is the Garrett ACE Apex waterproof?

    The Garrett ACE Apex is waterproof only in part: the 6 x 11 inch Viper coil and the lower stem can go under water, so you can hunt the surf line, creeks and wet sand, but the control box is rainproof only and must stay above the surface. If you want a detector you can dunk completely, look at the Garrett AT Max.

    Answered by Richard T. · September 2026
