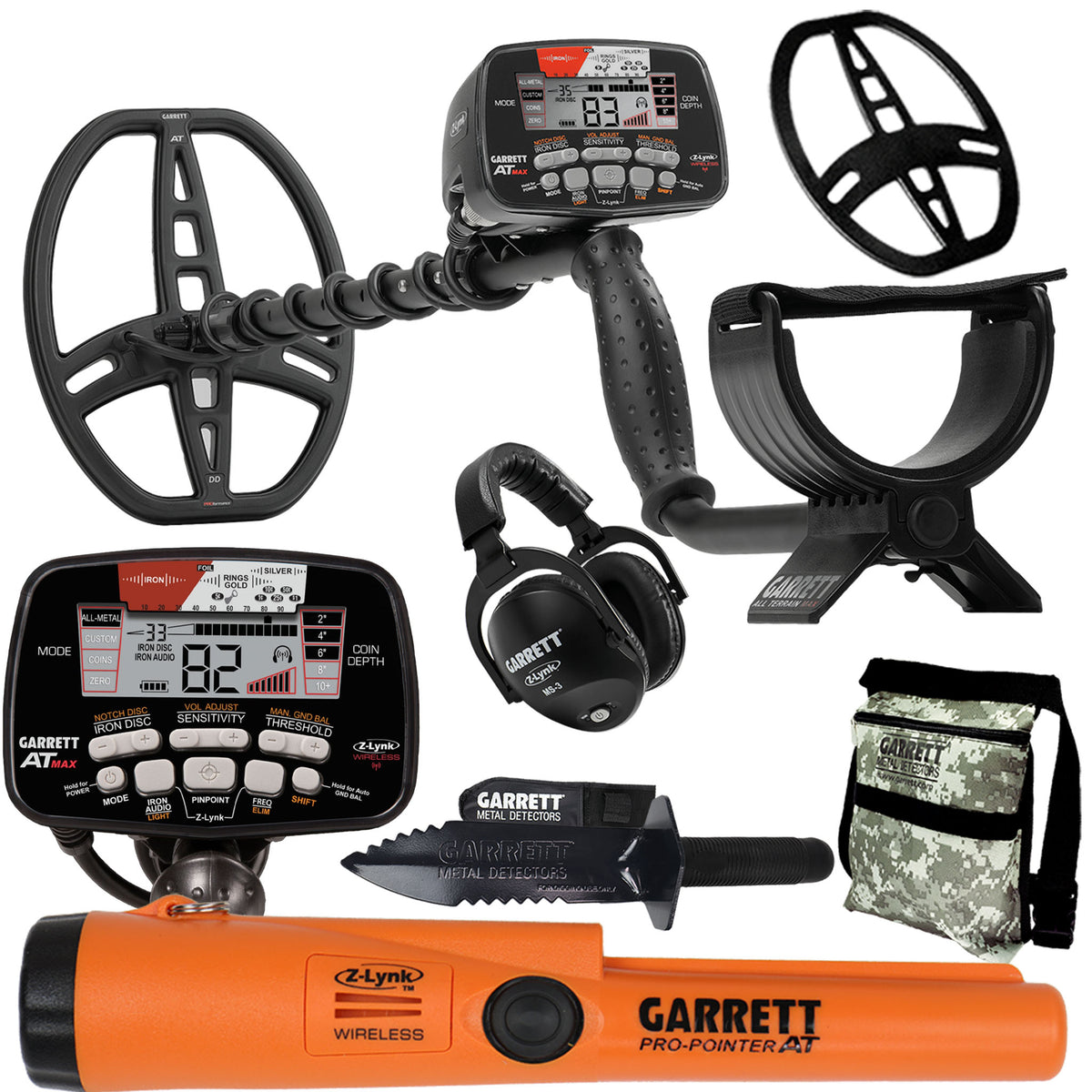

Garrett AT Max Metal Detector with Pro-Pointer AT Z-Lynk, Edge Digger and Camo Digger's Pouch

The Garrett AT Max pinpointer, digger and pouch bundle pairs Garrett's standard AT Max box (the AT Max, an 8.5 x 11 inch PROformance DD searchcoil and Garrett MS-3 Z-Lynk wireless headphones) with a Garrett Pro-Pointer AT Z-Lynk pinpointer with holster, a Garrett Edge Digger with sheath and a Garrett Camo Digger's Pouch. The AT Max runs at 13.6 kHz and is waterproof to 10 feet (3 meters). We recommend it to experienced coin and relic hunters who want a waterproof detector with wireless audio and substantial control.

What is in the box with this Garrett AT Max bundle

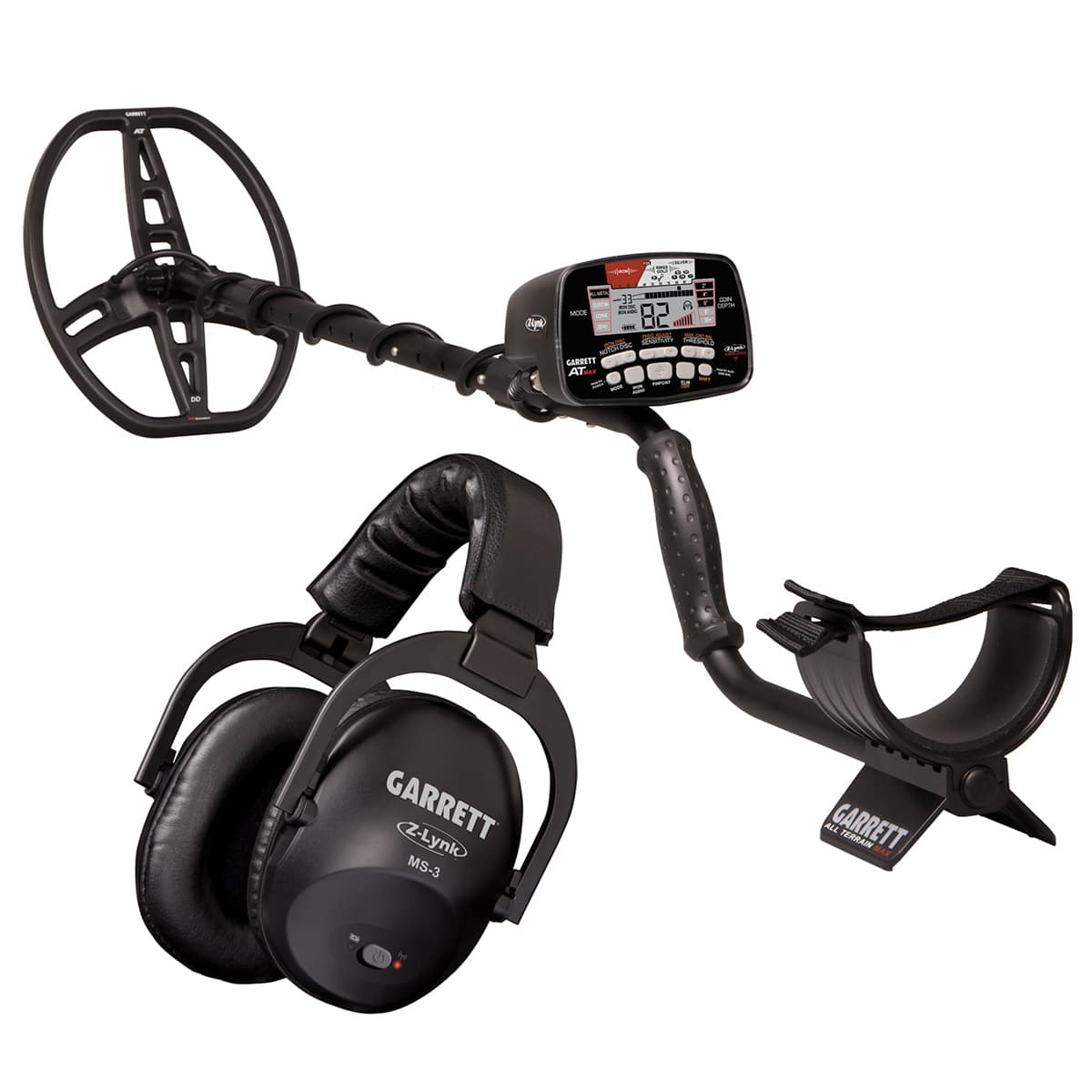

Garrett's standard contents for the AT Max (Garrett part 1142060)

• Garrett AT Max control housing with built-in Z-Lynk wireless transmitter, grip and S-shaped stem
• Upper and lower stem with push-pin locks and camlocks
• Adjustable arm strap and cuff
• 8.5 x 11 inch PROformance DD searchcoil with coil cover and the cable that connects it to the control housing
• Searchcoil mounting hardware: nut, bolt and mounting washers
• Garrett MS-3 Z-Lynk wireless headphones
• USB charging cable for the headphones
• Four AA batteries, installed
• Owner's manual

This Garrett AT Max bundle also includes

• Garrett Pro-Pointer AT Z-Lynk pinpointer with holster and 9V battery (Garrett part 1142200)
• Garrett Edge Digger with carry sheath (Garrett part 1626200)
• Garrett Camo Digger's Pouch (Garrett part 1612900)

What the add-ons in this Garrett AT Max bundle do

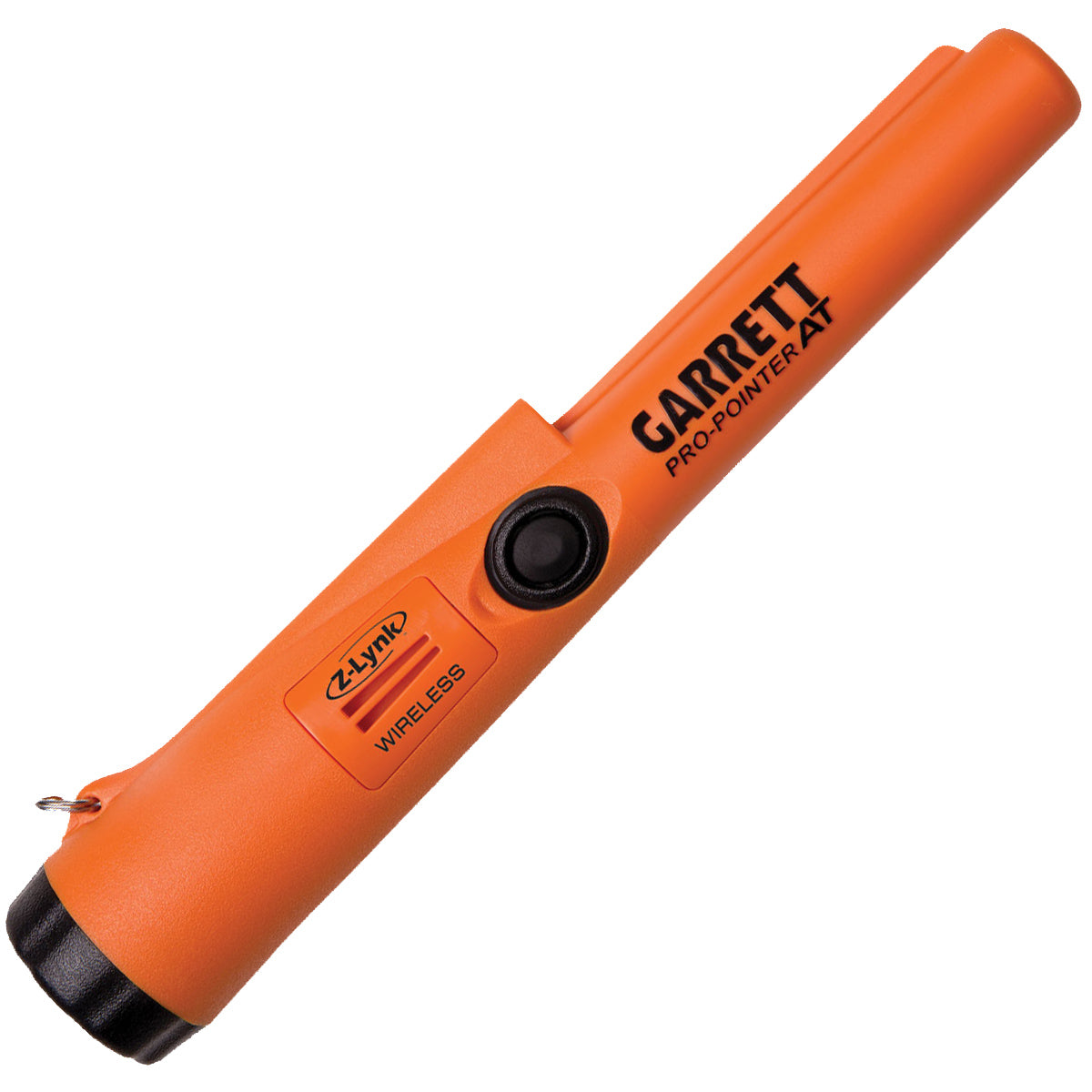

Garrett Pro-Pointer AT Z-Lynk pinpointer: the AT Max narrows down where to dig; once the hole is open, the pinpointer finds the target in the loose soil. It carries Garrett's Z-Lynk wireless technology with a 17 millisecond audio delay and pairs with Garrett MS-3 Z-Lynk wireless headphones, so its alerts can come through a wireless headset. Garrett rates it waterproof to 20 feet (6 meters), IP68, while the AT Max itself is rated to 10 feet (3 meters). It runs on a single 9V battery, weighs 6.5 oz (0.2 kg) with the battery, has a lost pinpointer alarm that starts after 5 minutes without a button press, and Garrett lists a 3-year limited parts and labor warranty for it. See our Garrett pinpointers.

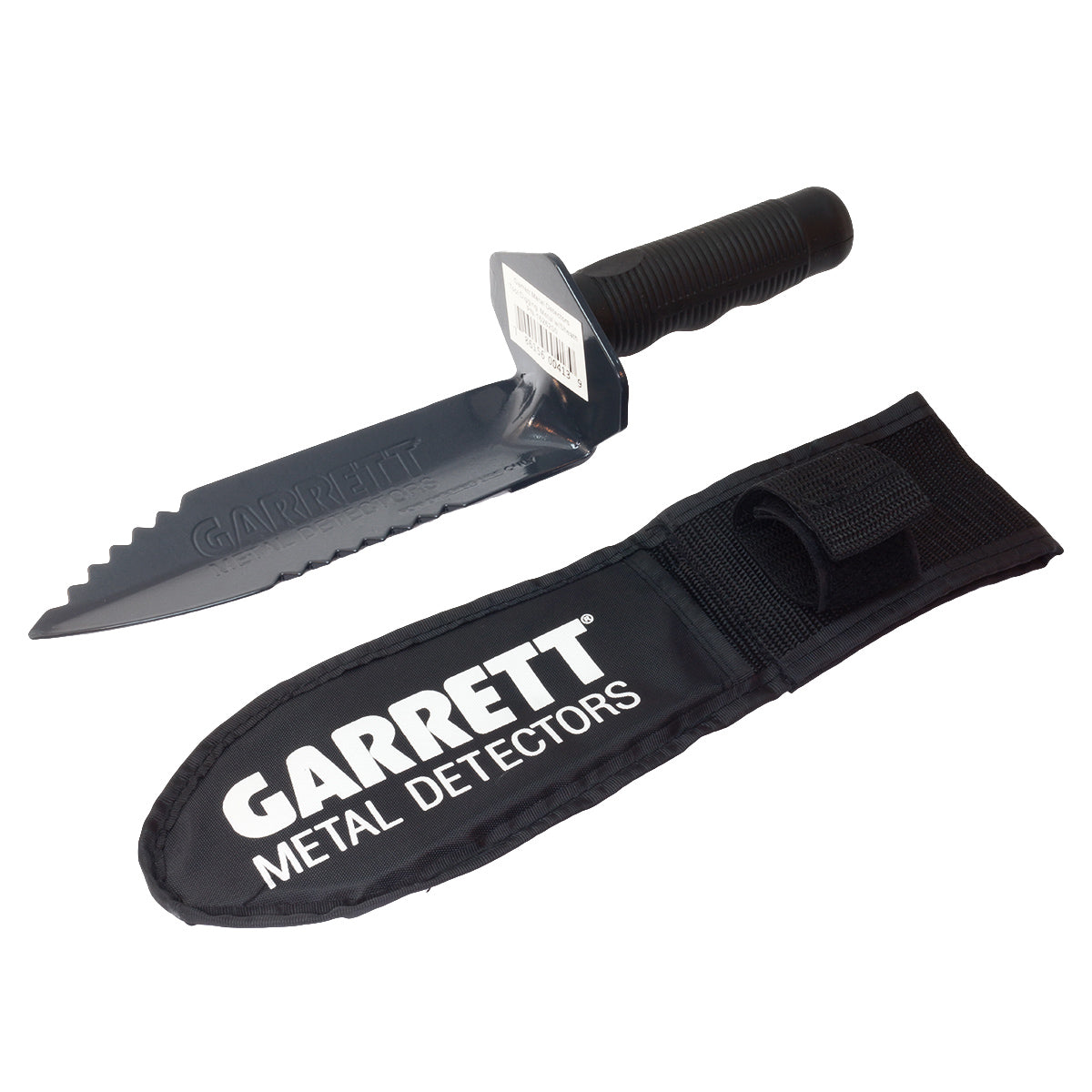

Garrett Edge Digger: a carbon steel digger with a 7.5 inch serrated blade to cut through roots, 12 inches overall, with a non-slip blade guard and a comfortable rubber handle. Garrett's carry sheath mounts it on your belt, so it stays at hand for every signal you decide to recover. See our shovels, diggers and picks.

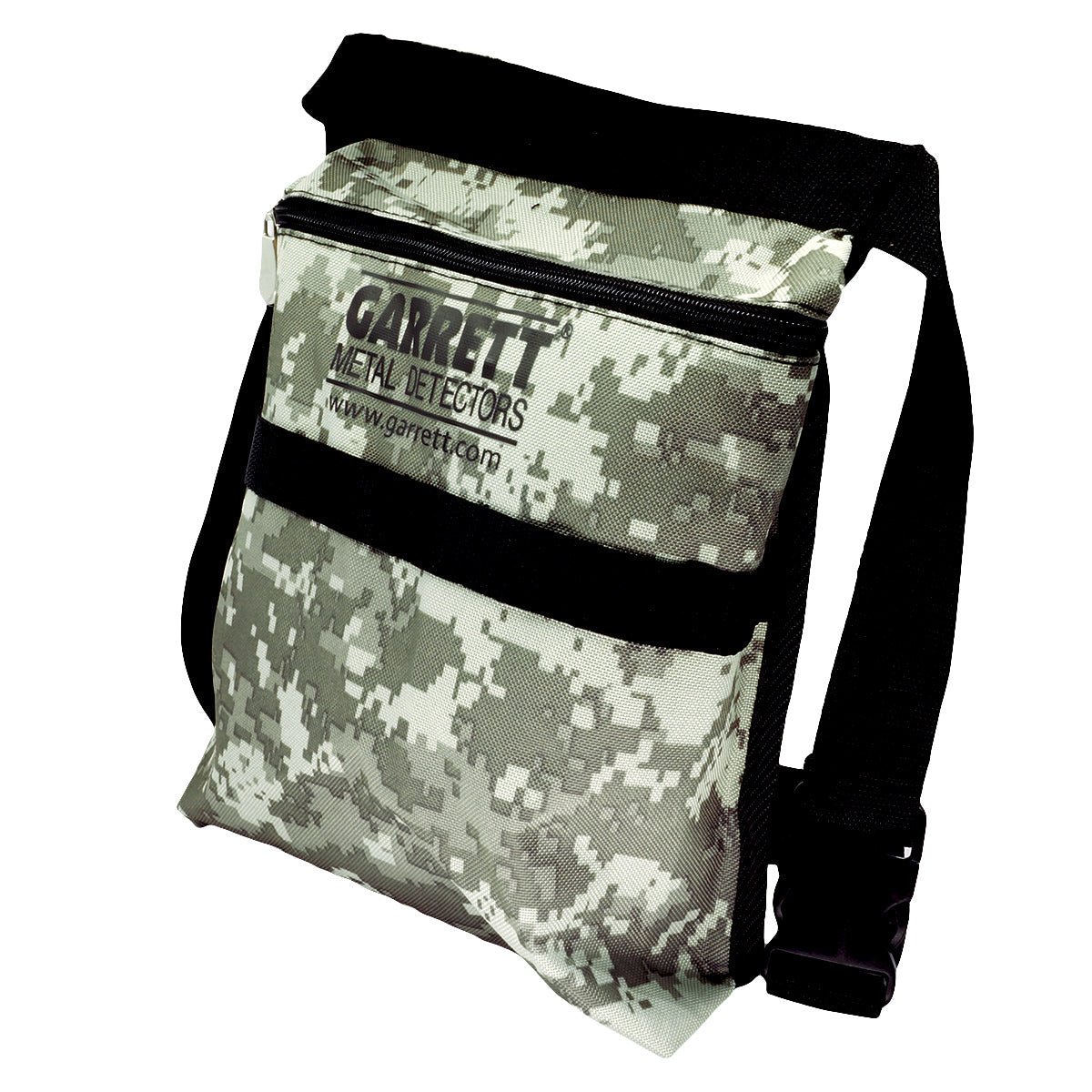

Garrett Camo Digger's Pouch: an all-purpose digging pouch with multiple pockets, a 10 inch deep zippered treasure bag and an interior zippered pocket to separate trash from treasure. The belt fits up to a 60 inch waist, and the exterior MOLLE-type webbing grid takes a Pro-Pointer and tools. See our Garrett carry bags and pouches.

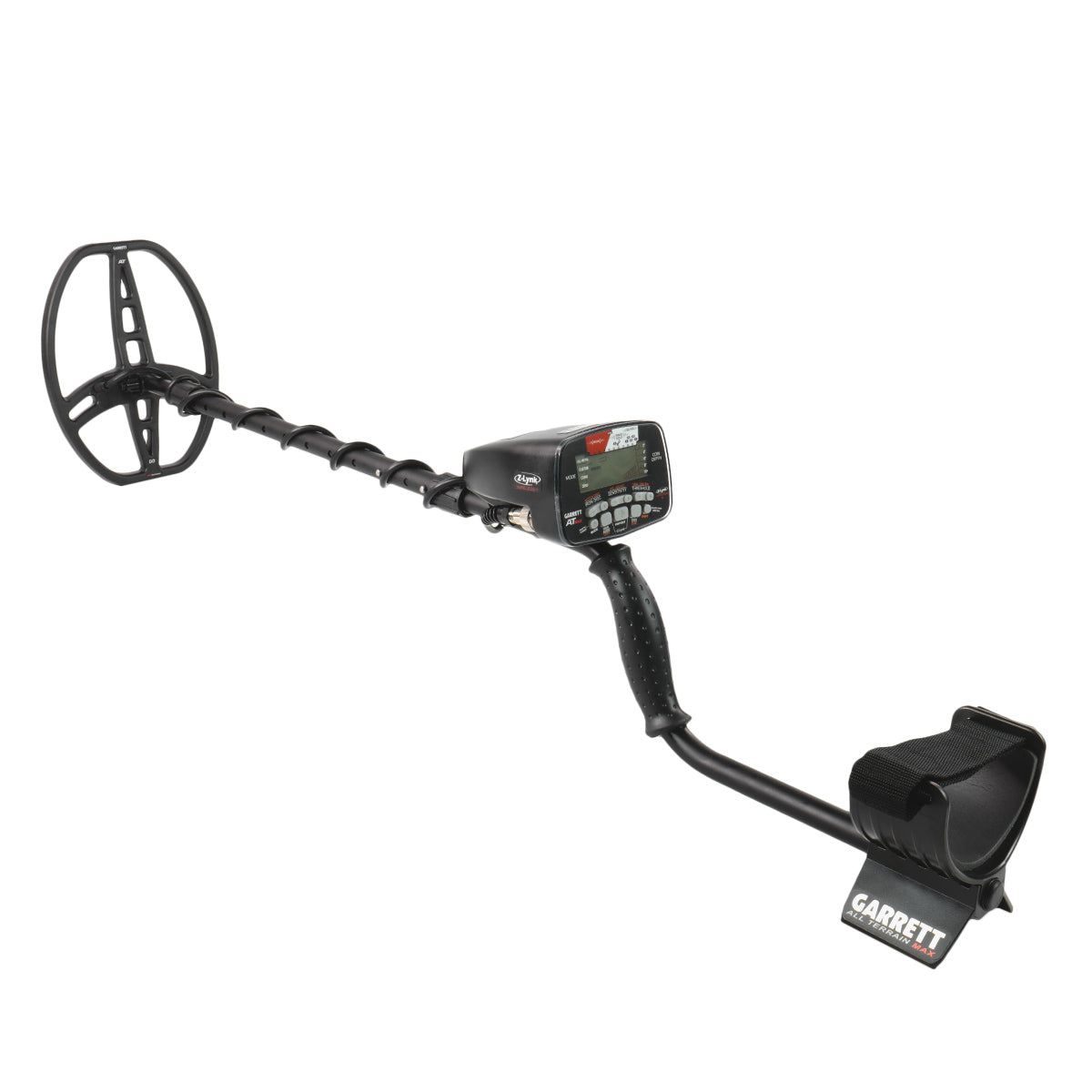

About the Garrett AT Max

The Garrett AT Max combines the familiar AT series design with extra convenience and ground handling features. Garrett calls it its most powerful all terrain, single-frequency detector: it runs at 13.6 kHz, with built-in Z-Lynk wireless audio, a backlit display, adjustable ground balance and a housing Garrett rates fully waterproof to 10 feet (3 meters).

What we like most about the AT Max is its true All Metal mode, together with the waterproof build, built-in Z-Lynk wireless audio and the extra ground handling features it adds over the 15 kHz Garrett AT Pro. We would choose it for serious all-terrain detecting when wireless audio and All Metal operation matter.

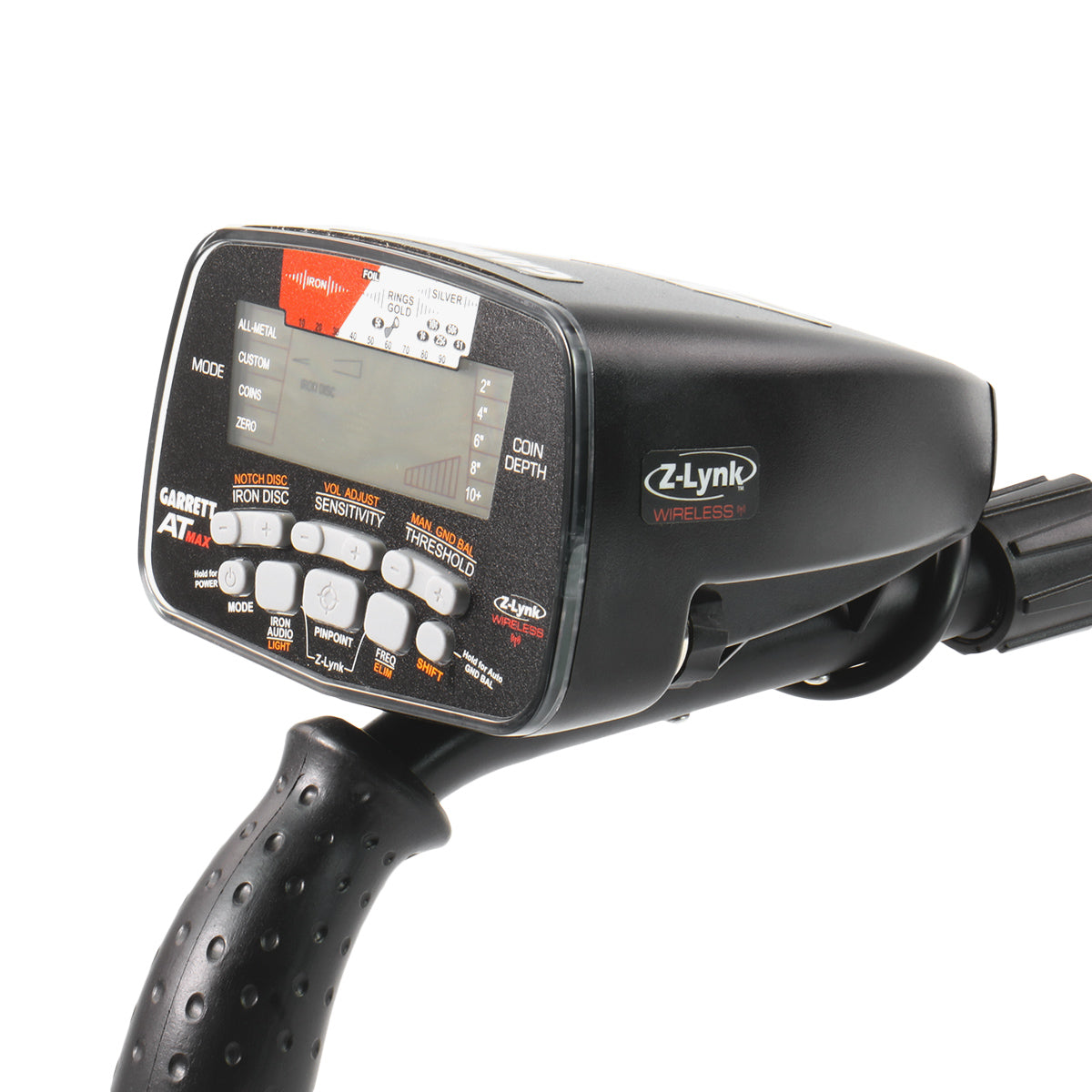

Garrett AT Max search modes and key settings

• Four search modes, all with Pro audio: a true All Metal mode plus three discrimination modes (Custom, Coins and Zero), with three audio tone levels. All Metal responds to both ferrous and non-ferrous targets, so you hear iron and junk as well as good targets.
• Iron discrimination and Iron Audio: iron discrimination adjusts from 0 to 44, and Iron Audio works in all four modes, including All Metal. Some iron discrimination must be set for Iron Audio to work.
• Ground balance: automatic and manual, with 175 points of resolution and an automatic Ground Balance Window that accommodates a broader range of ground around the selected balance point.
• Sensitivity, threshold and frequency adjust: eight sensitivity levels, an adjustable audio threshold and four minor frequency adjustments (F1 to F4).
• Display: a 0 to 99 digital target ID on a backlit screen.

Z-Lynk wireless audio on the Garrett AT Max

The AT Max has a built-in Z-Lynk wireless transmitter that syncs to the Garrett MS-3 Z-Lynk wireless headphones in the box. Z-Lynk is designed for low-latency audio, and Garrett lists the delay between the detector and the headphones at 17 milliseconds. If the link drops, the AT Max searches for the receiver for 30 seconds. Expect 15 to 25 hours from four AA batteries without wireless headphones and 10 to 20 hours with them.

Water and beach hunting with the Garrett AT Max

Garrett rates the AT Max fully waterproof to 10 feet (3 meters). The wireless headphones are not waterproof: Garrett rates its MS-3 Z-Lynk headphones for protection against light rain and says they should never be submerged, and for underwater detecting Garrett specifies its waterproof headphones. For someone who mainly searches saltwater beaches, we would recommend the Garrett Vortex VX7 or Garrett Vortex VX9 instead. See our waterproof metal detectors.

Where the Garrett AT Max works well, and where it does not

Coin and relic hunting suits the AT Max best, for experienced detectorists who want a waterproof detector with wireless audio and substantial control. See our relic and treasure metal detectors. For dedicated small-gold prospecting, we would point you to the Garrett Goldmaster 24K instead.

Garrett AT Max coil, batteries and build

Garrett pairs the AT Max with an 8.5 x 11 inch PROformance Double-D searchcoil. Garrett lists the detector at 3.03 lbs (1.4 kg) with a stem adjusting from 43 to 56 inches (1.09 to 1.4 m). It runs on four AA batteries, installed at the factory; alkaline or rechargeable cells work, and lithium cells are fine only at 1.5 V per cell, because Garrett warns that 3.7 V lithium cells damage the detector. Our coil guide explains what coil size and shape change.

Getting started with the Garrett AT Max

On an older farm field where targets may be relatively deep, we begin with a stable ground balance and sensitivity, then use All Metal mode to investigate faint responses. The settings worth learning first are ground balance, the Ground Balance Window, All Metal mode, threshold and Iron Audio. A common mistake is assuming maximum sensitivity always gives better usable depth: in difficult ground, excessive sensitivity can make faint signals harder to interpret.

Garrett AT Max specifications

Garrett covers the AT Max with a 3-year warranty; Garrett's MS-3 Z-Lynk wireless headphones carry their own 2-year limited parts and labor warranty.

For our full Garrett AT Max guide, settings advice and comparisons, see the Garrett AT Max collection.
