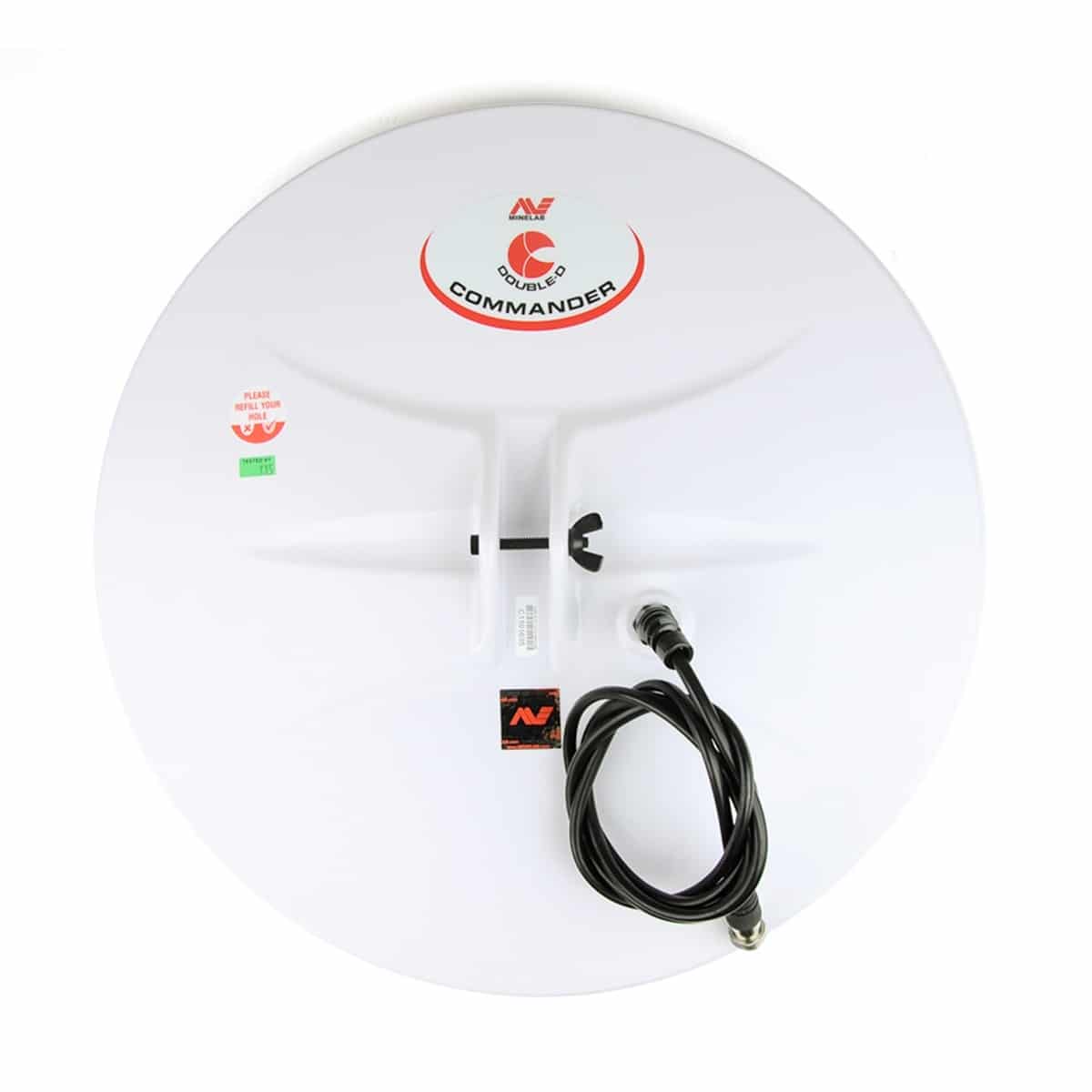

Minelab 18" Round Commander Double-D Coil for GPX, GP, and SD Series Detectors

The 18-inch Commander DD coil is compatible with Minelab GPX 5000, GPX 4800, GPX 4500, GPX 4000, GP Extreme, GP 3500, GP 3000, and the SD series including SD 2200d, SD 2200v2, SD 2100e, SD 2100v2, SD 2100, and SD 2000 detectors. This coil is compatible with all listed models and works across the entire GPX, GP, and SD platform. Detectorists upgrading from an 11-inch or 14-inch Commander coil to the 18-inch model gain immediate depth improvement on their existing detector. The coil's MPS-optimized design delivers full performance across the entire GPX and GP platform, making it a versatile choice for prospectors working mineralized goldfields.

The Commander DD coil uses a Monoloop winding (Minelab's term for their proprietary Double-D configuration) built with multi-strand Litz wire, which has higher surface area than single-strand wire and improves signal transmission efficiency. Standard DD coils from other manufacturers use conventional winding techniques and lower-grade wire. The Commander series also features gold-plated connectors and low-noise shielded cable to reduce interference in mineralized ground. Minelab designed the Commander line specifically for the GPX platform's Multi-Period Sensing technology, so it extracts more depth and sensitivity than aftermarket coils not engineered to MPS specifications. The high-quality components and robust construction make Commander coils well-suited for rugged goldfield conditions.

The 18-inch Commander coil is water resistant but not waterproof or submersible. You can use it in light rain and wet grass without damage, but do not submerge the coil in water or use it for shallow-water detecting. The coil body is not rated for immersion, so detectorists prospecting in dry washes and desert claims have no concerns, while those working creeks or rivers need a fully waterproof coil. If you plan to detect in water, consider a coil rated for submersion rather than risking damage to the Commander's electronics. For more waterproof coil options across detector platforms, visit our metal detector search coils collection.

The 18-inch Commander coil is the deepest seeking of all the Commander coils and finds very deep gold in mineralized soil. Actual detection depth depends on nugget size, ground mineralization, and detector settings. This coil trades small-target sensitivity for maximum depth, it is not the right choice for sub-gram nuggets near the surface but excels at finding larger gold that smaller coils miss. GPX operators working old claims where the shallow gold is gone rely on the 18-inch Commander to reach the deeper layer that has been overlooked. Ground conditions matter significantly, highly mineralized soil with hot rocks reduces effective depth compared to mild ground. The coil's large footprint provides excellent ground coverage for prospecting open goldfields.

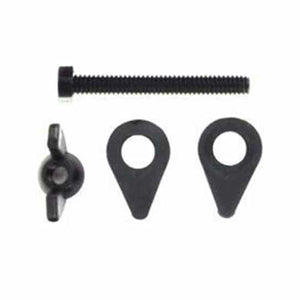

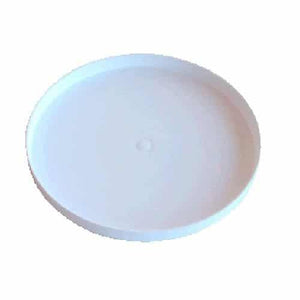

The 18-inch Commander coil package includes the coil itself with attached cable and gold-plated connector, a protective coil cover to prevent abrasion during field use, and mounting hardware (bolts and washers) to attach the coil to your GPX, GP, or SD detector's lower shaft. The coil cover is essential for prospecting, rocks and brush damage unprotected coils quickly. The coil is compatible with all listed Minelab models. Some detectorists also add a skid plate for extra protection in rocky terrain, but that is sold separately and not included with the Commander coil. The included hardware ensures you have everything needed to mount the coil to your detector.

The 18-inch Commander coil is engineered for gold prospecting in mineralized ground, not coin and relic hunting. Its Monoloop design prioritizes depth on conductive targets like gold nuggets but lacks the target separation and sensitivity to small high-conductors (clad coins, jewelry) that coin hunters need. The coil's large footprint also makes it difficult to maneuver in trashy parks or urban sites where target density is high. This coil is specifically designed for the GPX platform and optimized for finding gold nuggets in challenging mineralized soil conditions. If you want a Minelab detector for coins and relics, consider the Equinox or Manticore platforms with their multi-frequency VLF technology and smaller round metal detector search coils.

The 18-inch Commander coil is the deepest seeking of all the Commander coils and offers maximum ground coverage, making it ideal for finding very deep gold that smaller coils miss. This coil is not sensitive to very small gold nuggets, so it trades small-target sensitivity for maximum depth performance. Detectorists hunting open goldfields with scattered larger nuggets prefer the 18-inch for its ability to reach deeper targets. The larger size provides excellent ground coverage for prospecting virgin ground and old claims where shallow gold has been removed. The coil's robust construction and MPS-optimized design deliver full performance on GPX, GP, and SD detectors. Experienced prospectors select coil size based on the claim's characteristics and the type of gold they expect to find.
