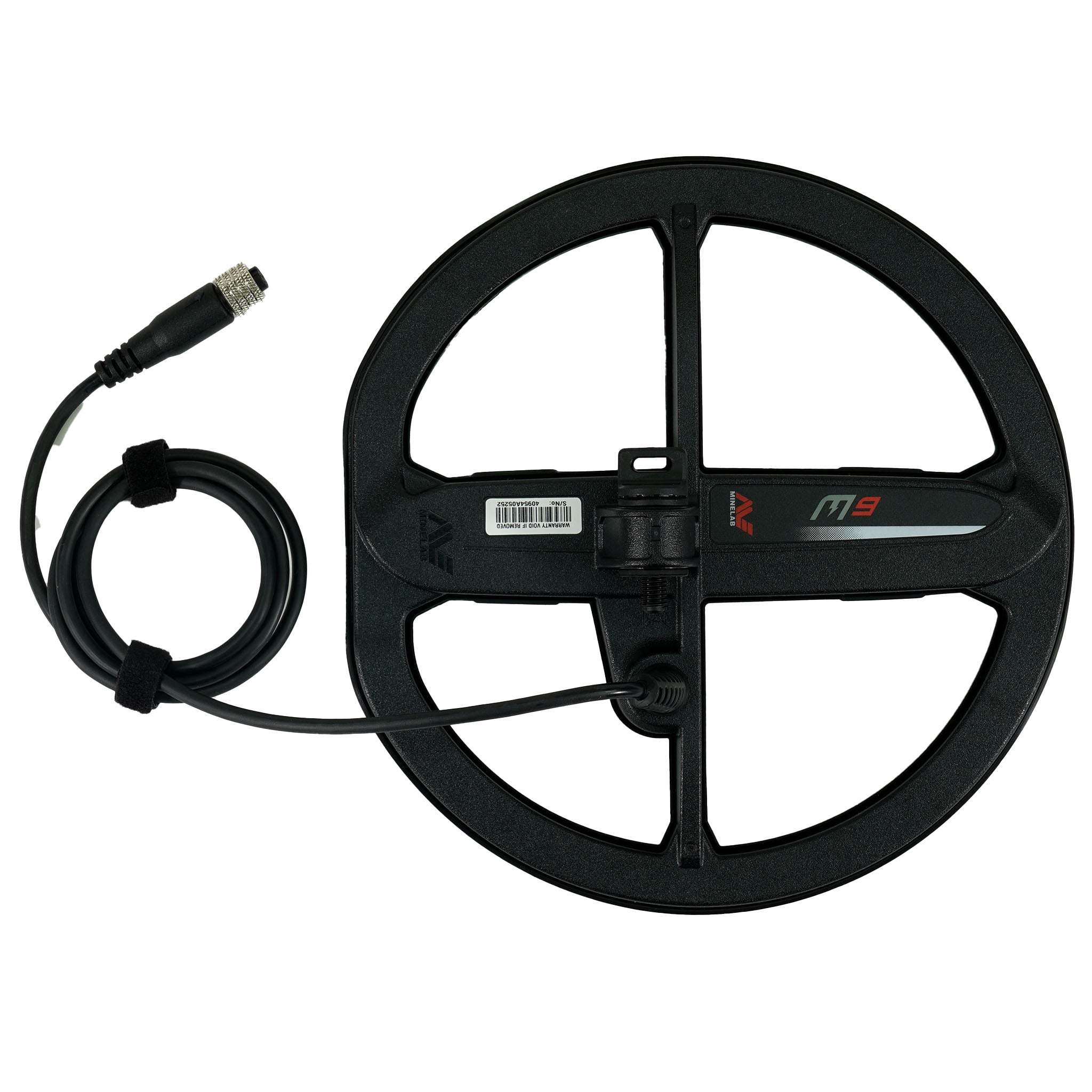

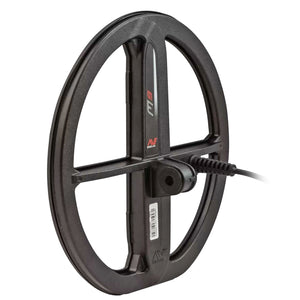

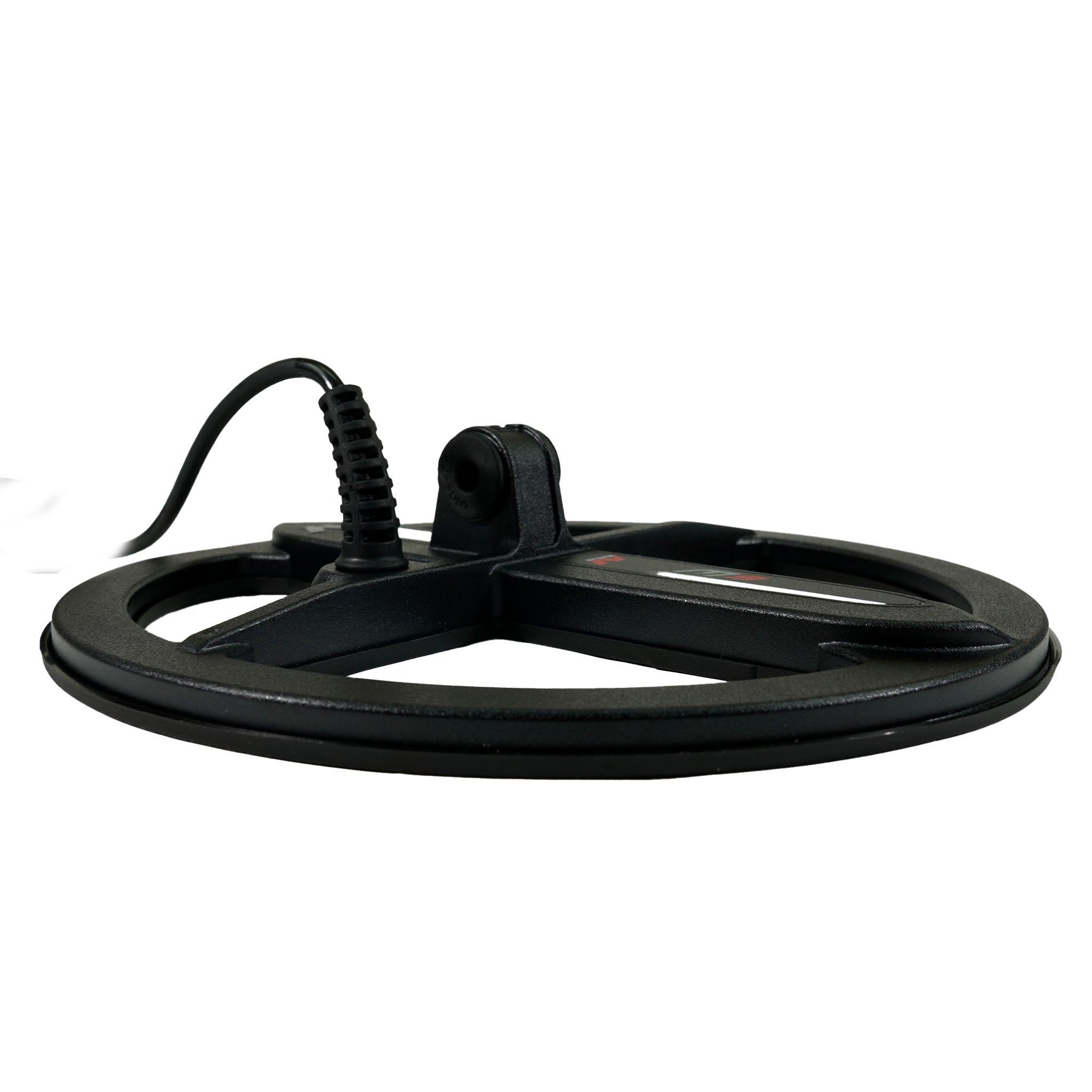

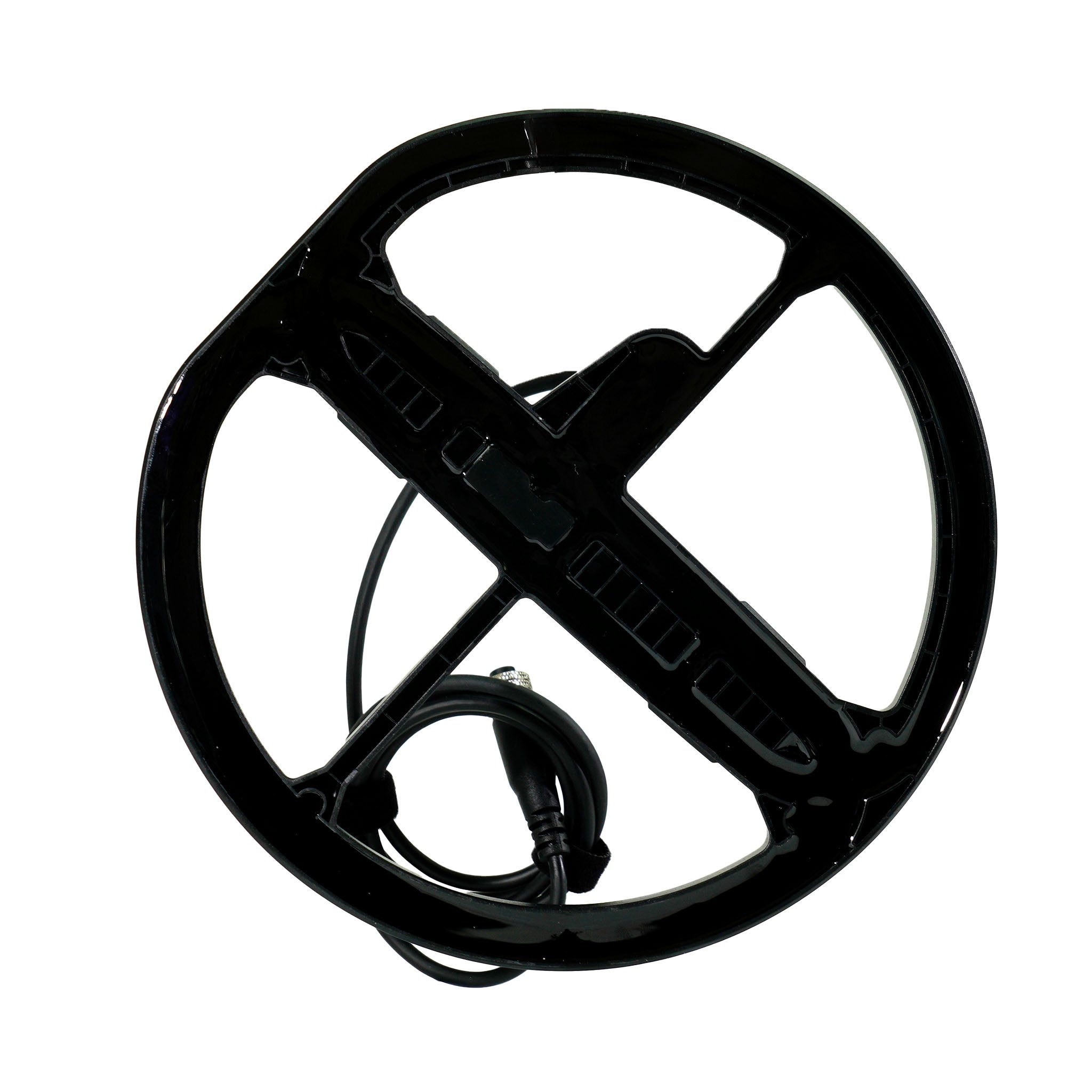

The Minelab M9 is the 9 inch round Double-D search coil for the Minelab Manticore. Part number 3011-0473. Minelab calls it the lightest Manticore coil, and its low profile makes it easy to sweep through water.
Who the M9 is for
The M9 suits Manticore owners who want a compact coil without moving all the way down to the narrow M8. It sits between the M8 and the M11: the round shape is convenient for general detecting, and the smaller size makes it easier to work around obstacles than the standard M11.
How we use the M9
We suggest the M9 to owners who find the M11 cumbersome in moderately cluttered sites but still want a general purpose coil. After fitting it, recheck Noise Cancel and Ground Balance where appropriate. Do not assume the previous coil's sensitivity setting will be equally stable on the M9.
The mistake we see most is treating the M9 as a round version of the M8. The two coils have different dimensions and shapes, and they handle differently.
Key features
- 9 inch round footprint: more compact than the 11 inch M11, with a round shape for general detecting.
- Double-D winding: the winding Minelab uses on all four Manticore coils.
- Waterproof to 5 m (16 ft): Minelab's rating for the M9, the same as the Manticore detector.
- 366 g (0.81 lb) with skidplate: the weight of the coil with its protective skidplate fitted.
- 3 year Minelab warranty: Minelab covers Manticore accessories for 3 years.

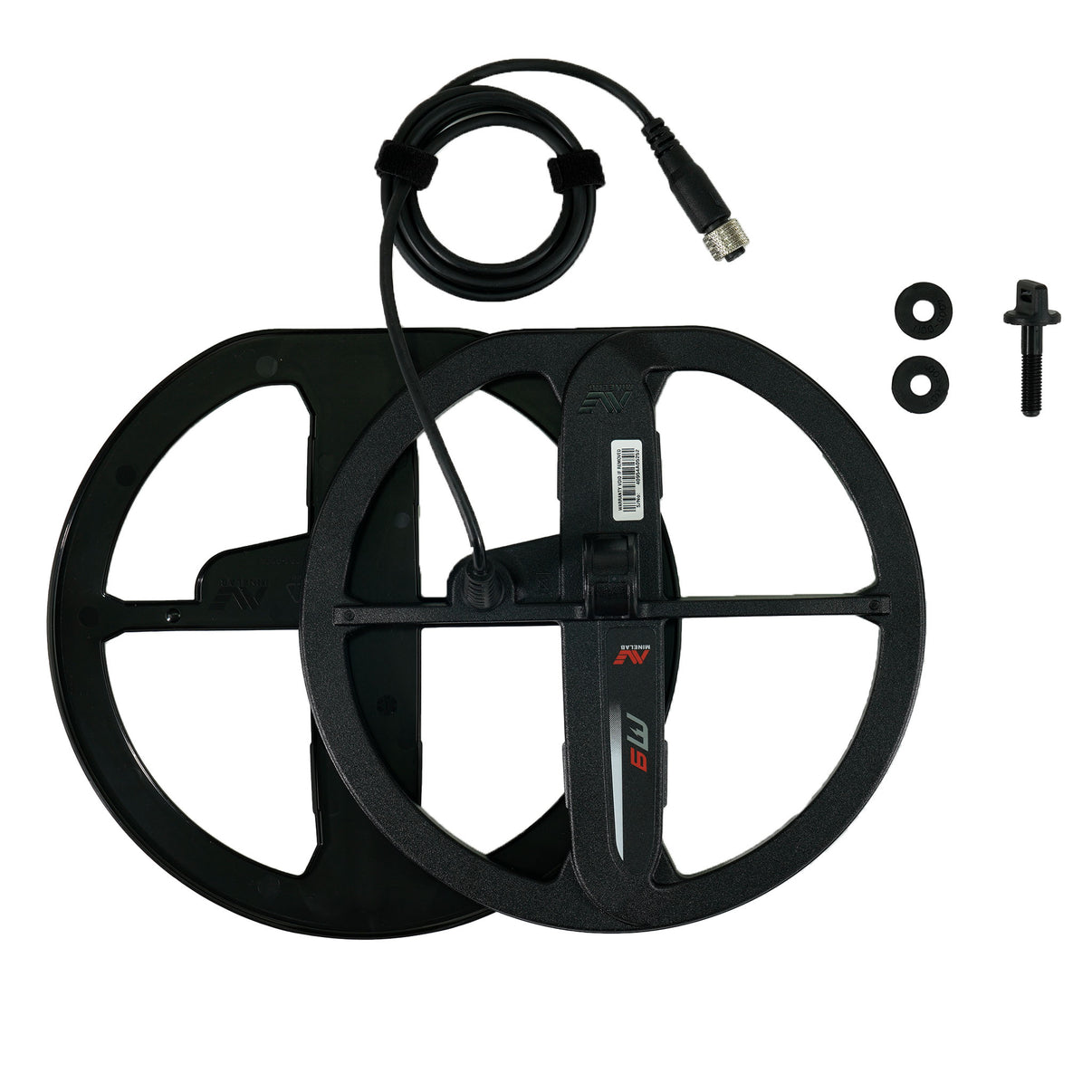

What is in the box
Minelab's standard contents
- Minelab M9 9 inch round Double-D search coil (3011-0473)

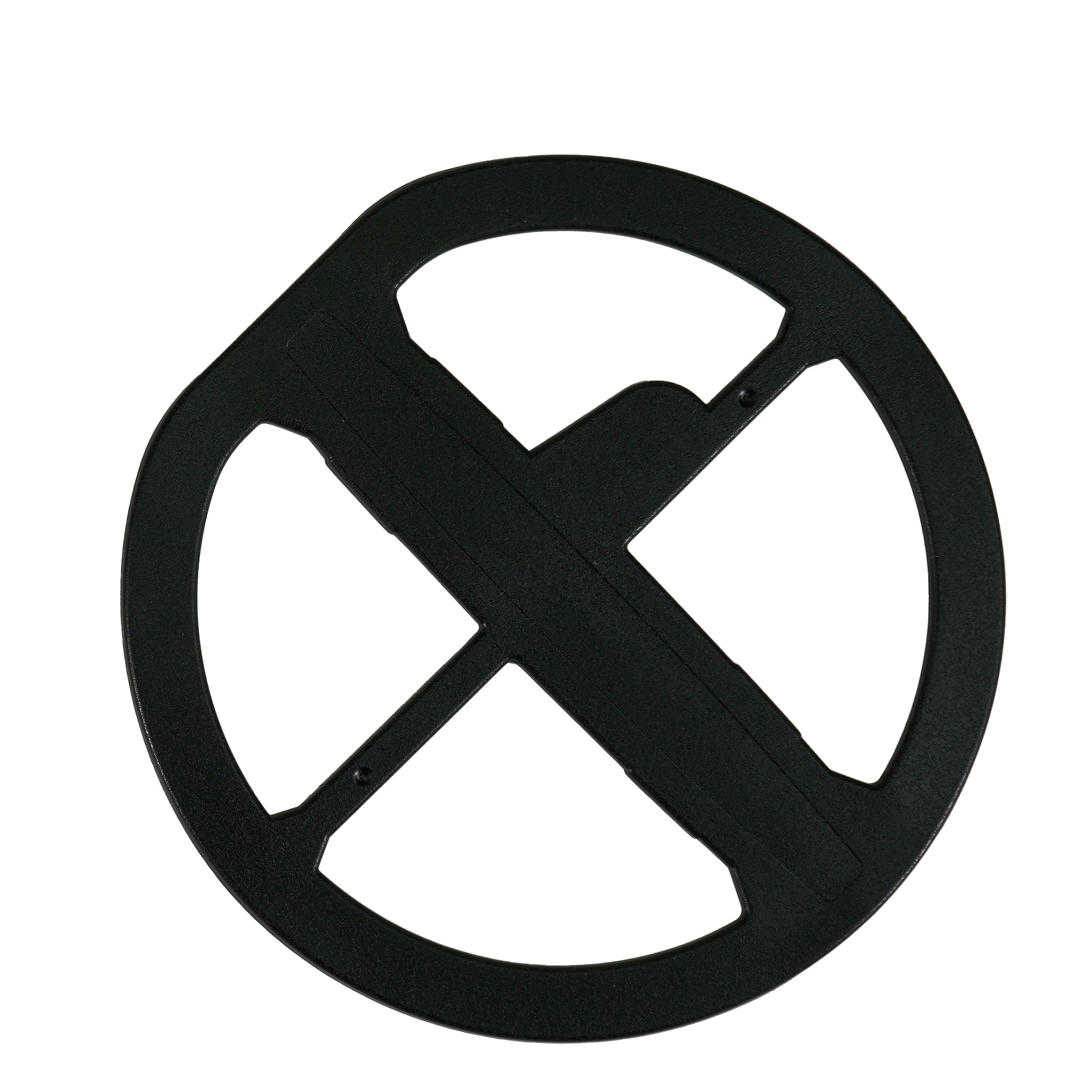

- Protective skidplate (pre-fitted)
- Coil mounting hardware
Compatibility
Minelab lists the M9 for the Manticore and for no other detector, and names only four Manticore coils: the M8, M9, M11 and M15. Owners weighing the round M9 against the narrower M8 can read our M8 vs M9 comparison.
How the M9 compares with the other Manticore coils
| Feature | M8 8 x 5.5 inch | M9 9 inch Round | M11 11 inch Round | M15 15 x 12 inch |
|---|---|---|---|---|
| Part number | 3011-0422 | 3011-0473 | 3011-0446 | 3011-0423 |
| Size | 8 x 5.5 inch | 9 inch | 11 inch | 15 x 12 inch |
| Shape | Elliptical | Round | Round | Elliptical |
| Winding | Double-D | Double-D | Double-D | Double-D |
| Waterproof | 5 m (16 ft) | 5 m (16 ft) | 5 m (16 ft) | 5 m (16 ft) |
| Supplied on the Manticore | Accessory coil | Accessory coil | Yes, standard coil | Accessory coil |
| Minelab's description | Sensitive to small targets, for high trash areas and difficult terrain | Low profile, easy to sweep through water | A general purpose coil for all treasure hunting | Maximum depth and wide ground coverage in open spaces |
At 366 g (0.81 lb) with skidplate, the M9 weighs less than the 390 g (0.86 lb) M8 and well under the 650 g (1.43 lb) M15. Our Manticore coils guide covers all four coils, and each is in our metal detector search coils collection.
Specifications
- Part number: 3011-0473
- Compatibility: Minelab Manticore
- Size: 9 inch
- Shape: Round
- Winding: Double-D
- Weight: 366 g (0.81 lb) with skidplate
- Waterproof: 5 m (16 ft)
- Warranty: 3 years (Minelab, Manticore accessories)
Serious Detecting is an authorized Minelab dealer, so the M9 ships as genuine Minelab stock with the full Minelab warranty. Browse the full Minelab range.
