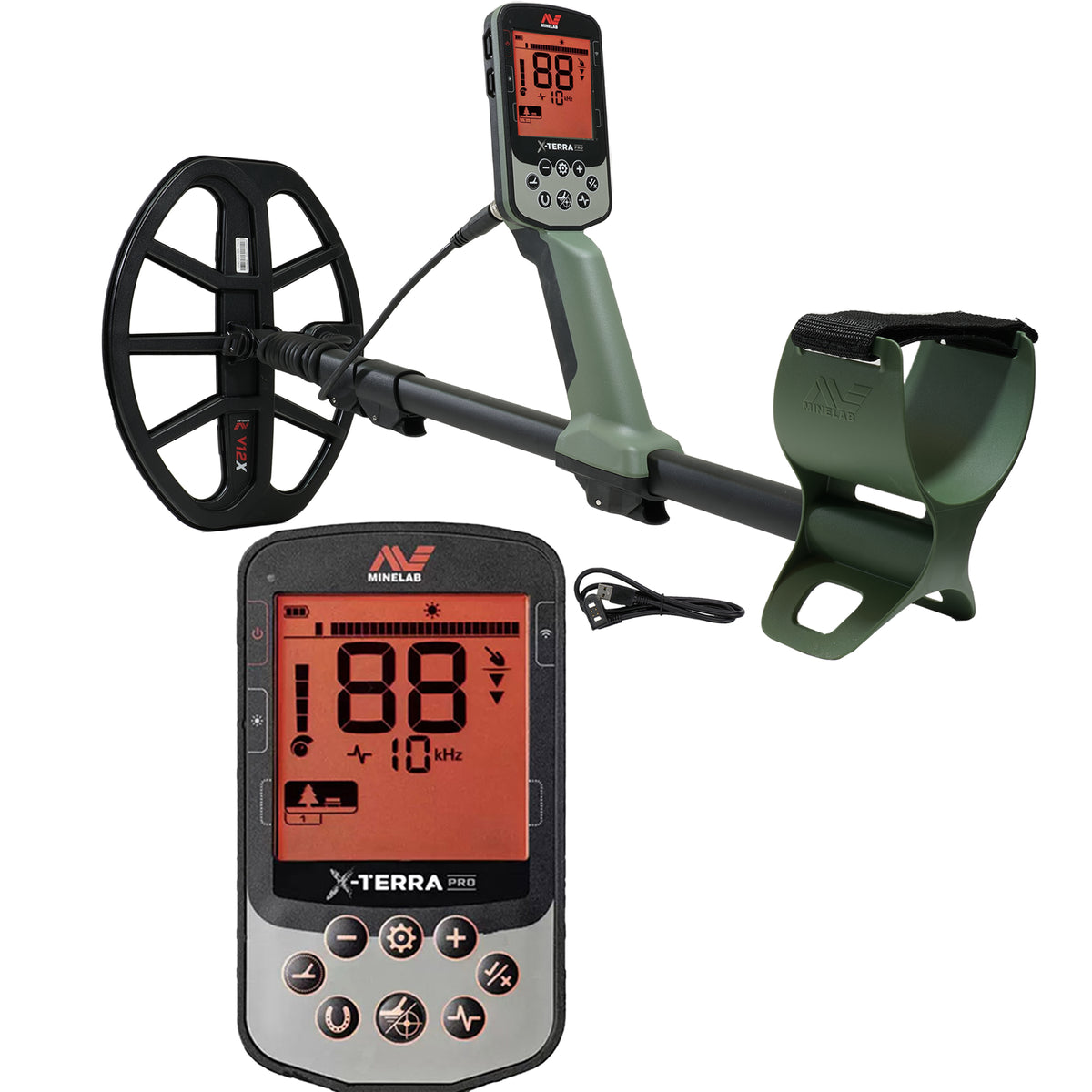

Minelab X-TERRA PRO Waterproof Metal Detector, V12X Coil

The Minelab X-TERRA PRO is a waterproof single-frequency metal detector for coins, jewelry and relics in parks, fields and on the beach. Minelab's PRO-SWITCH technology lets you choose the operating frequency yourself: 5, 10 or 15 kHz in the Park and Field modes, while Beach mode runs at 8 kHz. It runs one frequency at a time; it is not a simultaneous multi-frequency detector. It has three search modes with two profiles each, adjustable recovery speed, ground balance and discrimination, and Minelab rates it IP68, submersible to 5 meters (16 feet). Minelab ships it with the V12X 12 x 9 inch Double-D coil. It is a good detector for beginners, particularly beginners who want a detector they can grow into. For the rest of Minelab's range, see our Minelab metal detectors.

Who the Minelab X-TERRA PRO is for

One thing we appreciate about the X-TERRA PRO is that Minelab did not strip away the useful adjustments just to make an affordable detector. It is relatively easy to learn, but it still gives you control over recovery speed, ground balance, discrimination, audio and operating frequency. Some entry-level detectors are designed mainly around simplicity, which is fine if you just want to turn on a detector and find a few coins. The X-TERRA PRO lets you learn how different settings affect performance without spending considerably more money.

You can start with a factory search profile and begin detecting. Later, you can experiment with frequency, recovery speed, ground balance, discrimination and audio, so the detector leaves room to develop your skills. We think it makes the most sense for beginners who expect to stay with the hobby, casual coin hunters, freshwater beach detectorists and people who enjoy learning how their equipment works. We would not claim it is automatically better than every detector in its class; the right choice depends on what you hunt and where.

How PRO-SWITCH frequencies work on the Minelab X-TERRA PRO

The X-TERRA PRO uses selectable single frequencies, which means it operates at one selected frequency at a time. In Park and Field modes you choose 5, 10 or 15 kHz, and the frequency is saved per profile. Beach mode runs at 8 kHz only; the other frequencies cannot be selected there. Minelab recommends a noise cancel after every frequency change.

We would generally start at 10 kHz for ordinary coin hunting. It is a sensible middle ground for common coins, jewelry and other everyday targets, and it is the default in Park 1 and Field 1. If you are mainly after larger, higher-conductivity targets, experimenting with 5 kHz may be worthwhile. For smaller, lower-conductivity targets, 15 kHz can be useful; Minelab describes 15 kHz as the frequency for low conductors such as fine jewelry. We would not tell anyone that changing frequency automatically improves performance, though. Ground conditions, target size, depth and orientation all matter. The real advantage is the flexibility to experiment instead of being limited to one operating frequency.

Manually switching between single frequencies is not the same as simultaneous multi-frequency. Minelab's X-TERRA ELITE and EQUINOX detectors process multiple frequencies at once, which can help when one beach holds small gold jewelry, larger silver coins and difficult wet salt sand all together, without the operator having to pick a frequency. For parks, yards and ordinary soil, the X-TERRA PRO may give you everything you need.

Minelab X-TERRA PRO settings that matter in the field

• Recovery speed (1 to 3): set per profile. When a coin sits close to a rusty nail or aluminum trash around an old picnic area, the detector has to respond quickly enough to separate the two signals, and a faster recovery speed can help with that. A slower setting may give a stronger response from deeper, isolated targets. Three settings might not sound like much, but it is enough to show the principle. We would not run the fastest setting everywhere: slower for relatively clean ground, faster for heavily contaminated ground, and know why you are changing it.
• Ground balance (Auto, Manual, Tracking): the range is -9 to 99, and Auto ground balance is something you start yourself by holding the Accept/Reject button. Different soils carry different levels of mineralization, and a detector that is quiet in one place can turn noisy somewhere else. Learn the automatic procedure first, then try manual or tracking when the soil gets difficult. Minelab recommends Tracking for saltwater in Beach 2. Ground balance is not a substitute for sensible sensitivity or good technique; it is another tool for adapting to the conditions.
• Noise cancel and sensitivity (1 to 25): noise cancel is not automatic at power-on. You start Auto Noise Cancel from the settings menu, and it picks from 19 channels in a few seconds; Minelab's software update for the X-TERRA PRO adds a Continuous Auto Noise Cancel. One mistake we would caution beginners against is assuming maximum sensitivity means maximum useful depth. Near power lines or underground utilities, more sensitivity can make random signals worse. Run a noise cancel first, then set sensitivity where the detector stays reasonably quiet. We would rather see someone detect with a stable machine at moderate sensitivity than struggle with constant false signals at maximum.
• Discrimination and Target ID: Target IDs run from -19 to 0 for ferrous and 1 to 99 for non-ferrous, 119 in all, and you accept or reject them in 30 segments of four IDs each, or reject a target on the spot with the Accept/Reject button. The Field profiles reject IDs 1 to 4 by default. We would not rely entirely on the numbers. A faint signal with an inconsistent ID might be iron, an oddly shaped object or a deeper good target, so check it from several directions and listen for whether the audio repeats. Valuable targets do not always produce perfect numbers.
• Audio: Target Tones 1, 2, 5, All Tones and Depth, volume 0 to 25, an adjustable threshold, and a separate ferrous Tone Volume. We would start new owners on a simple tone setting and add more tones once common targets are familiar. Ferrous volume lets you turn iron down instead of silencing it, which helps on an old homesite: you do not want every nail loud, but hearing where the iron is can show you where people lived and worked.
• Flashlight, backlight and vibration: a flashlight in the control pod, a red display and keypad backlight, and handgrip vibration you can set for all targets and for ferrous targets. Before sunrise, the backlight makes the target information readable and the flashlight lights the ground, and vibration gives you another way to notice a target when audio is hard to hear. None of this adds depth; it makes long hours outdoors easier.

The six Minelab X-TERRA PRO search profiles

• Park 1 (General and Coins) and Park 2 (Fine Jewelry): Park 1 is a good starting point while you learn the detector, and runs 10 kHz by default. On a first trip to a local park you will hear coins, pull tabs, bottle caps and aluminum trash, and it pays to learn how those sound in Park 1 before making big adjustments. Park 2 starts at 15 kHz with a faster recovery speed, which is worth trying for smaller jewelry or closely spaced targets in trashy spots, although it does not guarantee every good target will separate from nearby junk.
• Field 1 (Coins and Artifacts) and Field 2 (Fine Coins and Artifacts): Minelab's profiles for coins and artifacts, at 10 kHz and 15 kHz by default.
• Beach 1 (Wet and Dry Sand) and Beach 2 (Underwater and Surf): both at 8 kHz. In Beach mode Minelab gives salt a Target ID of 0 so that low-conductive targets such as gold chains can still be detected.

Every profile can be changed, saved and reset to Minelab's factory settings. An All Metal shortcut button switches off the discrimination pattern so every target is heard.

Beach and water hunting with the Minelab X-TERRA PRO

The X-TERRA PRO works in freshwater and saltwater, with performance limits in challenging saltwater conditions. Minelab rates it IP68 and fully submersible to 5 meters (16 feet). On a Lake Michigan beach you can move between dry sand, wet sand and shallow freshwater without worrying about ordinary water exposure within that rating, and streams and shorelines are fine too.

Saltwater beaches are a different situation. Wet salt sand is electrically conductive and gives a ground response of its own. Beach 1 is designed for dry and wet sand; Beach 2 is meant for more demanding saltwater conditions, particularly with the coil submerged. Working from the upper beach toward the surf, we would start with Beach 1 when conditions allow and switch to Beach 2 when the environment calls for it. Beach 2 does not automatically give more depth; its settings put handling salt first, and that involves trade-offs. Because the X-TERRA PRO runs a single frequency, we would not expect it to match the stability of a good simultaneous multi-frequency detector in difficult saltwater. For occasional beach trips it is a sensible choice; if you mostly hunt ocean beaches, compare it with the X-TERRA ELITE. See our beach metal detectors.

Waterproof does not mean every accessory is waterproof. The built-in speaker is fine for ordinary detecting and wireless headphones are convenient on land, but in our experience wireless audio is not a practical underwater solution. If you plan to put the detector under, use Minelab's 3.5 mm waterproof headphones (part 3011-0372), which Minelab lists as compatible with the X-TERRA PRO. Do not take it underwater while it is charging or running from a power bank. See our metal detector headphones.

One mistake to avoid with the Minelab X-TERRA PRO

The X-TERRA PRO has enough adjustments that it is tempting to try everything at once. If you change frequency, sensitivity, recovery speed and discrimination at the same time, you will not know which change affected the results. Start with Park 1 for general coin hunting. Learn how common targets sound, practice pinpointing and pay attention to repeatable signals. Then experiment with one setting at a time. That teaches you much more about the detector than adjusting settings without a clear purpose.

Minelab X-TERRA PRO weight, battery and build

Minelab lists the X-TERRA PRO at 1.3 kg (2.9 lb) including batteries. The three-piece shaft extends to 138 cm (54 inches) and collapses to 63 cm (25 inches). The display is a monochrome LCD with a red backlight.

The 3.7 V, 5100 mAh lithium-ion battery is built into the handle. Minelab's manual gives approximately 16 hours of typical use, less with the backlight or flashlight on. Charging from flat takes about 5 to 6 hours with a USB charger of more than 2 A at 5 V; the magnetic USB cable is in the box. You can detect while running from a power bank, but not underwater. Minelab's manual says replacement batteries can be supplied and fitted by a Minelab authorized service center. Software updates install over the same magnetic cable from a Windows or Mac computer, and your settings are kept.

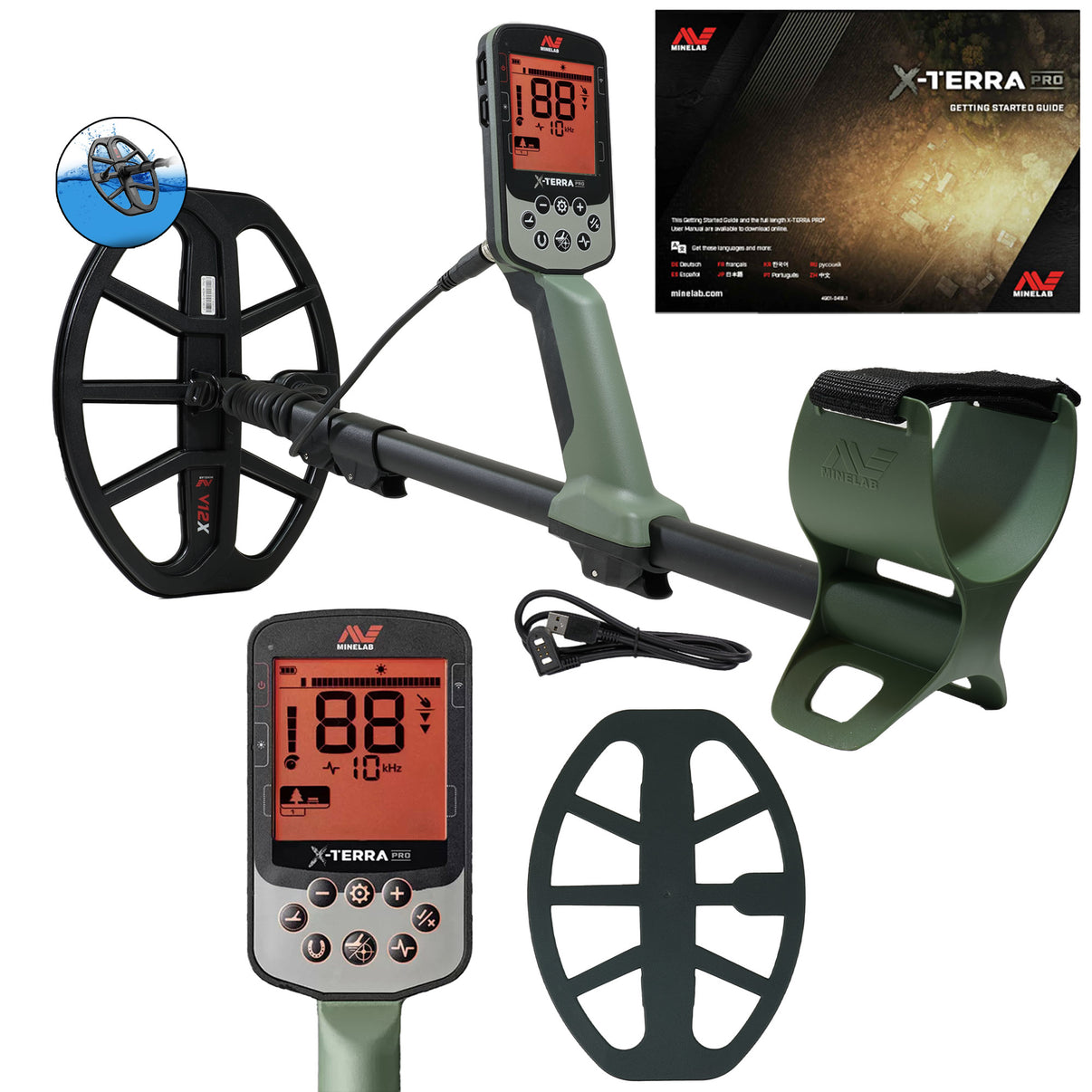

What is in the box with the Minelab X-TERRA PRO

Minelab's standard contents for the X-TERRA PRO:

• Minelab X-TERRA PRO detector with three-piece shaft
• V12X 12 x 9 inch elliptical Double-D search coil with skid plate
• USB charging cable with magnetic connector
• Getting Started Guide

Minelab covers the X-TERRA PRO control box and coil with a 3-year warranty in the USA.

Coils and accessories that fit the Minelab X-TERRA PRO

Search coils: the V12X 12 x 9 inch elliptical Double-D in the box is a practical size for a general-purpose detector, with good ground coverage without being excessively large. Minelab also makes the V10X (10 x 7 inch elliptical Double-D, part 3011-0458) and the V8X (8 x 5 inch elliptical Double-D, part 3011-0457), and lists the EQX 06, EQX 11 and EQX 15 coils in the same X-TERRA accessory range. Around an old house foundation full of nails, bolts and other debris, a smaller coil can make it easier to isolate individual targets and work around trees and rocks. The trade-off is less ground coverage and possibly less depth on some targets. We would not suggest buying extra coils right away: learn the V12X first and add a smaller coil if the places you hunt call for it. See our metal detector coils.

Headphones: the X-TERRA PRO has a built-in speaker, a 3.5 mm (1/8 inch) headphone socket with a waterproof dust cap, and Minelab low-latency wireless audio, which is not Bluetooth. Minelab recommends the ML 85 headphones and also lists the ML 105 and the WM09 wireless module, which lets you use your own 3.5 mm headphones wirelessly. Minelab's ML 80 and ML 100 are not compatible. For underwater use, choose Minelab's 3.5 mm waterproof headphones.

Pinpointing: the X-TERRA PRO has a pinpoint button and a 5-level depth indicator that Minelab calls a guide only. A separate handheld pinpointer still speeds up recovery.

Minelab X-TERRA PRO or X-TERRA ELITE

Choose the X-TERRA PRO for affordable, adjustable single-frequency detecting. Consider the Minelab X-TERRA ELITE when Multi-IQ is worth the extra cost to you. If you mostly hunt ordinary parks and fields, the PRO may be a very sensible purchase. If you regularly search saltwater beaches, want simultaneous multi-frequency, or would rather not pick frequencies yourself, we would point you to the ELITE. Multi-IQ is not simply another setting; it changes how the detector processes signals across multiple frequencies, which can help with different target types and difficult ground. We would not tell anyone they need Multi-IQ to find coins or jewelry, because the X-TERRA PRO is perfectly capable of finding them. Minelab's Equinox 900 is another simultaneous multi-frequency option worth comparing for ocean beaches.

Where the Minelab X-TERRA PRO works well, and where it does not

Parks and yards: In our experience, Park 1 and Park 2, three recovery speeds and 15 kHz for small targets cover most coin and jewelry hunting. Heavy trash still makes separation hard for any detector. In one of our park hunts, a 1936 Mercury dime at six inches read 86 to 87 on every sweep angle, and wheat cents sat at 80 to 82; once you learn where your targets live, the numbers mean something. Our Minelab X-TERRA PRO field test has the settings and finds from two months across three sites. See more beginner and intermediate metal detectors.

Fields and old homesites: the Field profiles, ground balance and ferrous volume help you read iron-heavy ground, and a smaller coil helps among the nails. On an 1880s farm field in mineralized clay, 5 kHz in Field 2 called an Indian Head cent at five inches with a nail four inches away, coin tone wrapped in iron grunt.

Freshwater beaches, lakes and streams: this is where the IP68 rating to 5 meters and the Beach profiles make the X-TERRA PRO a strong fit; Minelab's waterproof headphones are the ones to use underwater.

Saltwater beaches: usable, including wet sand, with Beach 1 and Beach 2. If ocean beaches are your main ground, a simultaneous multi-frequency detector such as the X-TERRA ELITE is the better fit. Our Vanquish 560 vs X-TERRA PRO comparison weighs the X-TERRA PRO against one of Minelab's multi-frequency detectors.

Gold: it finds gold jewelry, but there is no gold mode and Minelab does not position it as a prospecting detector. For natural gold, look at our gold detectors.

Minelab X-TERRA PRO specifications

Our advice: the X-TERRA PRO makes the most sense for someone who wants a capable, waterproof detector with useful adjustments at an affordable price. We like it not because it tries to compete with Minelab's top-end detectors, but because it gives you useful control, waterproof construction and room to develop your detecting skills without a major investment. If you mostly search saltwater beaches or want simultaneous multi-frequency, we would lean toward the X-TERRA ELITE. For the rest of the range, see our guide to the best Minelab metal detectors.
