Fusion Light is an easy-to-use ground scanner for treasure hunters who look for buried artifacts and hidden treasures in cavities such as tombs, tunnels and subterranean caches. The treasure detector is a special edition combining the favorite application properties of the powerful Fusion Professional with the flexibility and usability of Rover UC.

Entry-Level Ground Scanner Operating Modes

3D Ground Scan allows treasure hunters to detect gold treasures as well as underground anomalies and to visualize the scan data immediately on the Smartphone via Android App.

With its integrated Magnetometer the Fusion Light has the ablity to locate ferrous metals like militaria and iron boxes filled e.g. with silver and gold coins, valuables, and precious artifacts.

Discover a New Dimension of Treasure Hunting

This small delivery scope has everything you need for a fast and successful treasure hunt: Fusion Light, the lightweight among the metal detectors and 3D ground scanners, consists of a compact Control Unit with integrated sensors and is controlled via Android App. The operating modes Magnetometer and 3D Ground Scan are essential for successful treasure hunts. After scanning your target area, the measurement results are visualized graphically with the Android App directly on the Smartphone (or Tablet) and can be further analyzed with Visualizer 3D Studio software on the Windows notebook.

Detect Metal Objects with Magnetometer

With the operating mode Magnetometer, anomalies in the magnetic field are immediately visualized on the smartphone display. In this way, potential finds like artifacts, treasure chests, old ammunition, and further ferrous objects can be detected very easily. Experienced treasure hunters use the Magnetometer before scanning the target area with 3D Ground Scan in order to clear the scan field of smaller objects close to the surface.

Detect Anomalies with 3D Ground Scan

The 3D Ground Scan operating mode helps treasure hunters, military seekers and historians track down underground cavities and artifacts. Potential finds and discoveries can be displayed on the Android smartphone via OKM Fusion Light App and saved for further analysis. Treasure hunters get a more accurate 3D image by transferring the scan data to the notebook and analyze the images in the software Visualizer 3D Studio.

Analyze Scan Data with Detection Software Visualizer 3D Studio

Thanks to the Visualizer 3D Studio software, which is included on the USB flash drive for installation on your Windows notebook, the 3D Ground Scan data can be displayed in a detailed 3D graphic. After successfully transferring the stored scan data to your notebook, you can determine the position, size, and depth of potential treasures even more precisely.

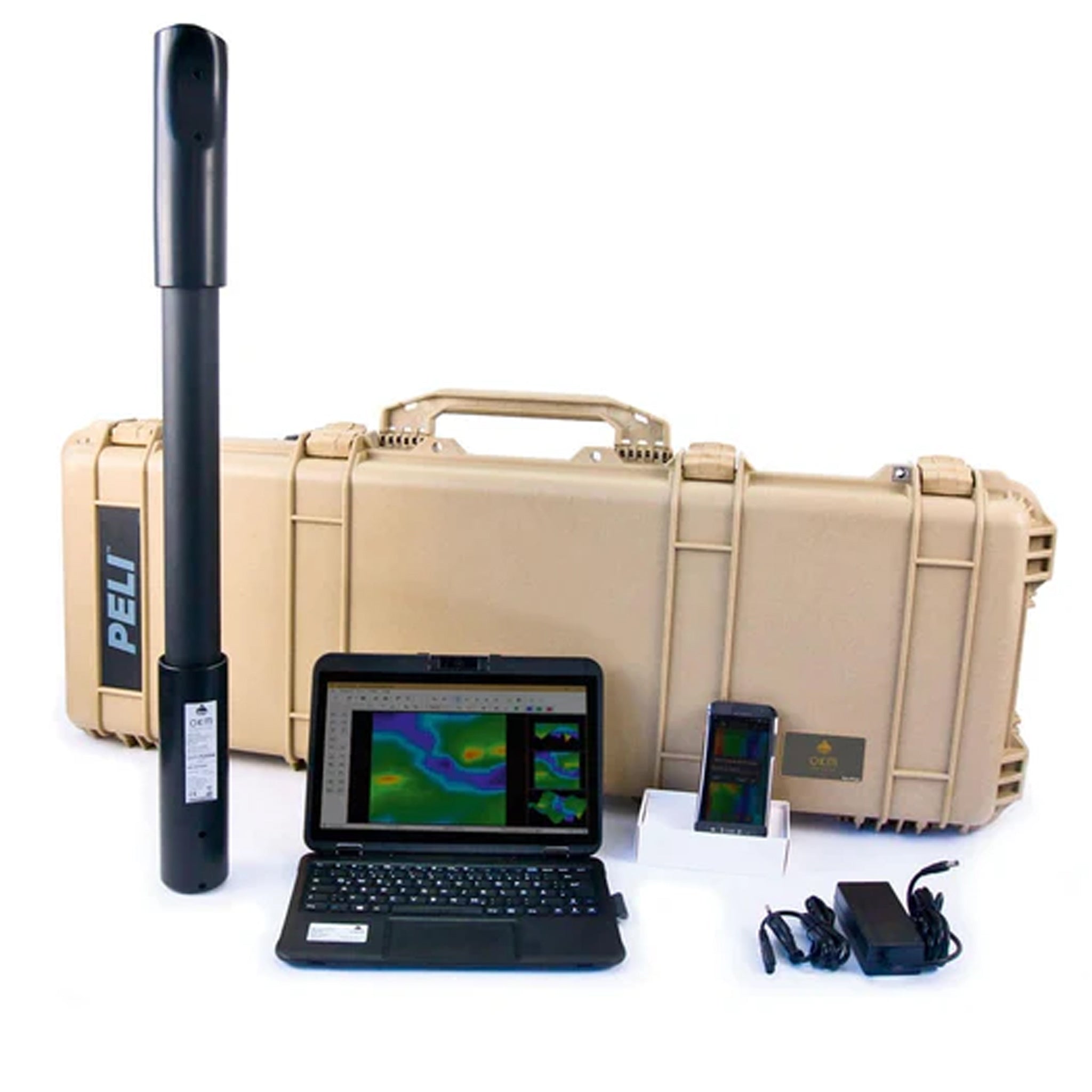

Factory Included Items:

• Control Unit

• Android Smartphone with pre-installed OKM App

• Windows Notebook with software OKM Visualizer 3D Studio Standard Edition
• Charger with charging cable
• Travel Adapter Set
• Waterproof and shock-resistant Protector Case
• Quick Start Guide


Specifications:

Control Unit

• Dimensions (H x W x D): 800 x 65 x 65 mm
• Weight: approx. 700 g
• Input voltage (max.): 19 V DC, 3.16 A
• Lithium-Ion baterry: 2600 mAh
• Operating time: approx. 12 h
• Charging Time: approx. 3 h
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Waterproof: No
• Sensor technology / Coil technology: SCMI-15-D
• Air humidity: 5% – 75%
• Protection Type: IP40

Data Transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer Minimum Requirements for Visualizer 3D Studio

• Interface (data transmission): USB 2.0
• Free disk space: minimum 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10
