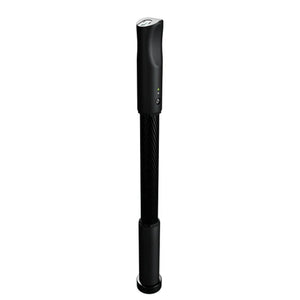

OKM Fusion Professional Metal Detector with SRIS Coil

OKM Fusion Professional Metal Detector with SRIS Coil

The metal detector and 3D ground scanner Fusion Professional is the redesigned and improved version of the Future 2018 Anniversary Edition. It has been designed for 3D scan beginners and offers easy operation as well as advanced measurement features.

The 3D ground scanner Fusion supports treasure hunters, gold seekers, adventurers and archaeologists to discover lost treasures, buried artifacts, hidden places and other historical items.

The version Fusion Professional is perfect for beginners and advanced users.

The probe of the Fusion Professional edition is used in vertical orientation and offers the operating modes 3D Ground Scan and Live Sound (Magnetometer):

• Live Sound (Magnetometer)

  An acoustic magnetic field measurement to detect ferrous metals.

  With Live Sound (Magnetometer) treasure hunters and archaeologists can detect metal objects near the surface in real-time. This mode is used to clear the scan field before performing a 3D Ground Scan.

• 3D Ground Scan

  A measurement to receive 3D images of the underground for detailed analysis with OKM detection software.

  With 3D Ground Scan treasure hunters can visualize detected structures and objects in three-dimensional representations. These scan images allow detector users to determine the position, size, and depth of targets.

Locate Shallow Metal Objects with the SRIS Search Coil

The SRIS Search Coil can be used to locate metallic objects close to the surface. This coil can be activated manually by the operator while setting up the operating modes Live Sound and 3D Ground Scan.

Even though it seems easy to detect the position of a buried object with the 3D ground scanner and metal detector OKM Fusion, it can become harder to localize the exact spot as soon as you start digging. In order to solve this problem you may activate the SRIS search coil and check the excavated soil with it. In this way, you are able to exactly match the correct spots of hidden items and won’t miss any small object like:

• wedding bands and rings
• earrings, brooches, bracelets, and necklace
• coins, buttons, badges, and pins

Visualize Underground Treasures in 3D

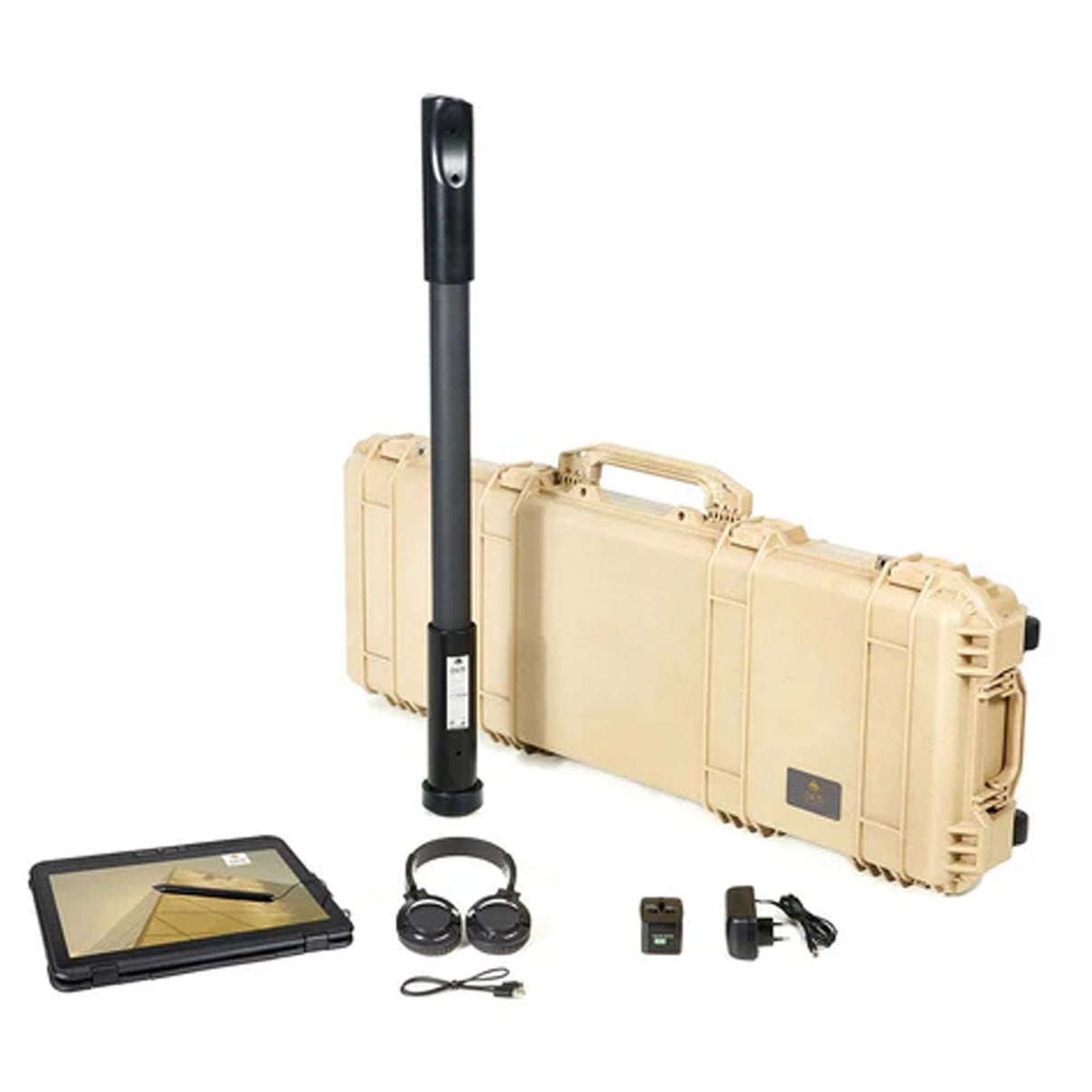

Factory Included Items:

• Control Unit

• Pre-configured Windows Notebook

• USB Flash Drive with OKM Visualizer 3D Studio Standard Edition

• Bluetooth Headphones with charging cable

• Charger with charging cable

• Travel Adapter Set

• Waterproof and shock-resistant Protector Case

• Quick Start Guide

Control Unit

• Dimensions (H x W x D): 37" -  2 / 3"
• Weight: 2.2lbs
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Bluetooth Headphones
• Waterproof: No
• Sensor technology / Coil technology: SCMI-15-D / SRIS-18K
• Air humidity: 5% – 75%
• Protection Type: IP40
• Charging Time: approx. 3 h (internal battery)
• Operating time: approx. 12 h (internal battery)
• Input (for Charger): 19 V DC / 3.16 A

Data Transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer Minimum Requirements

• Interface (data transmission): USB 2.0
• Free disk space: minimum 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10
