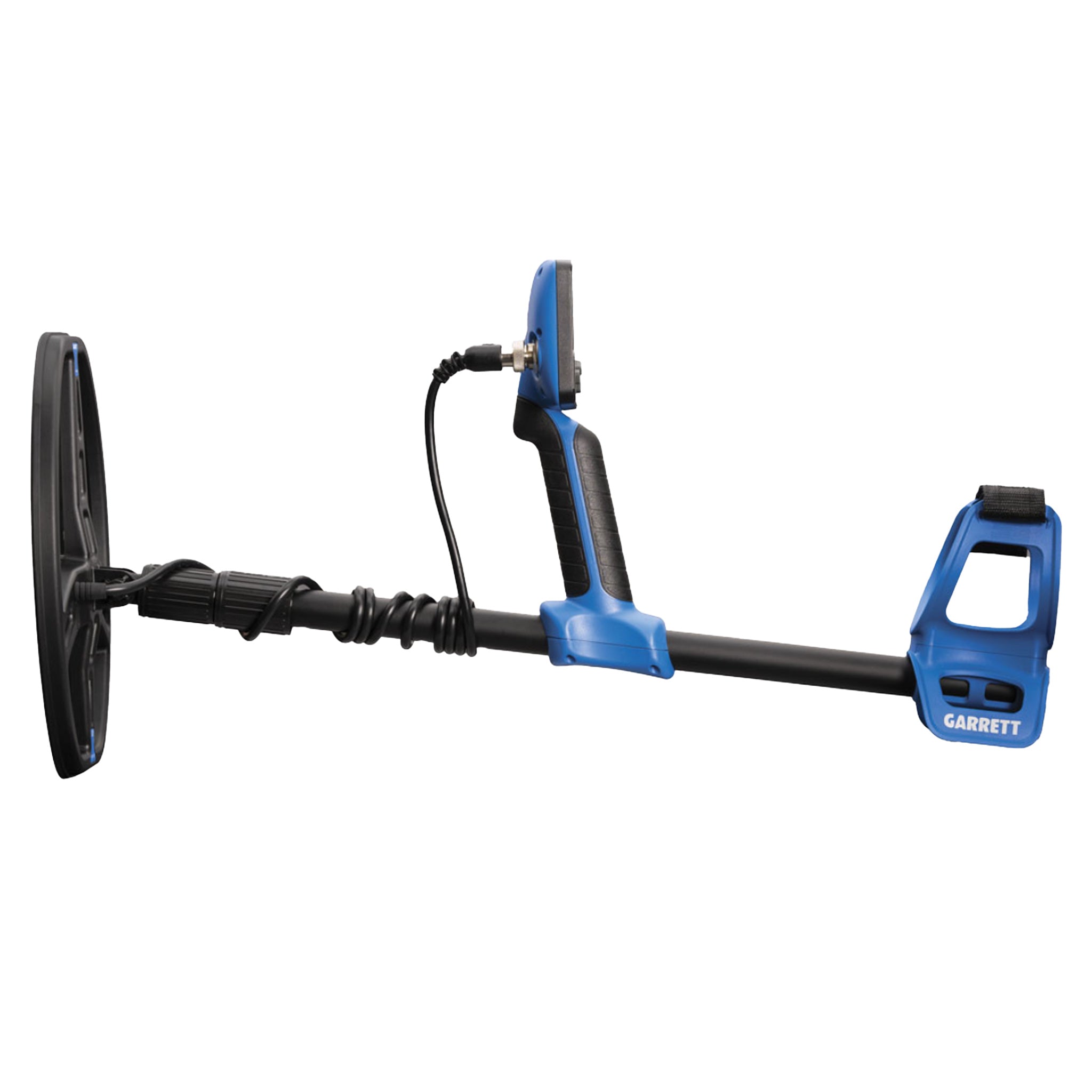

    • Garrett Vortex VX9 metal detector collapsed, showing blue and black shaft, control box and search coil
    • A male scuba diver is using the Garrett Vortex VX9 metal detector to scan a sandy ocean floor.
    Sale!

    Garrett Vortex VX9 Multi-Frequency Metal Detector (Open Box)

    SKU: OBWS_1143060
    Sale Price $539.99 Regular Price $599.99

    Hurry up! Only 1 left

    4.9 from 3,100+ verified reviews · 4.8 on Google
    • Authorized U.S. dealer Genuine Garrett, full manufacturer warranty.
    • Free shipping, ships today Order by 3 PM ET Mon to Fri, noon ET Sat. Contiguous U.S.
    • 30-day free returns Prepaid return label included.
    • Talk to a detectorist (844) 771-0707, Mon to Fri, 10 AM to 4 PM ET.

    Found it lower at an authorized U.S. dealer? We'll match it.

    Payment & Security

    Your payment is secure. We don’t store or see your card details.

    • Amazon
    • American Express
    • Apple Pay
    • Bizum
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Satispay
    • Shop Pay
    • USDC
    • Visa

    Best for

    Highlighted icons show the targets, ground and experience level this detector is built for.

    An open box Garrett Vortex VX9 brings Garrett's professional Vortex model, with a 3-tier target ID, seven search modes and Multi-Salt, to coin, relic and beach hunters at a discount, with Garrett's 3-year warranty. Garrett rates the whole detector waterproof to 16 feet (5 meters).

    Configuration
    Condition Open box
    Detector Garrett Vortex VX9 with built-in Z-Lynk wireless and speaker
    Coil(s) 8.5 x 11 in DD Raider with coil cover
    Power Internal lithium-ion battery, USB-C charging

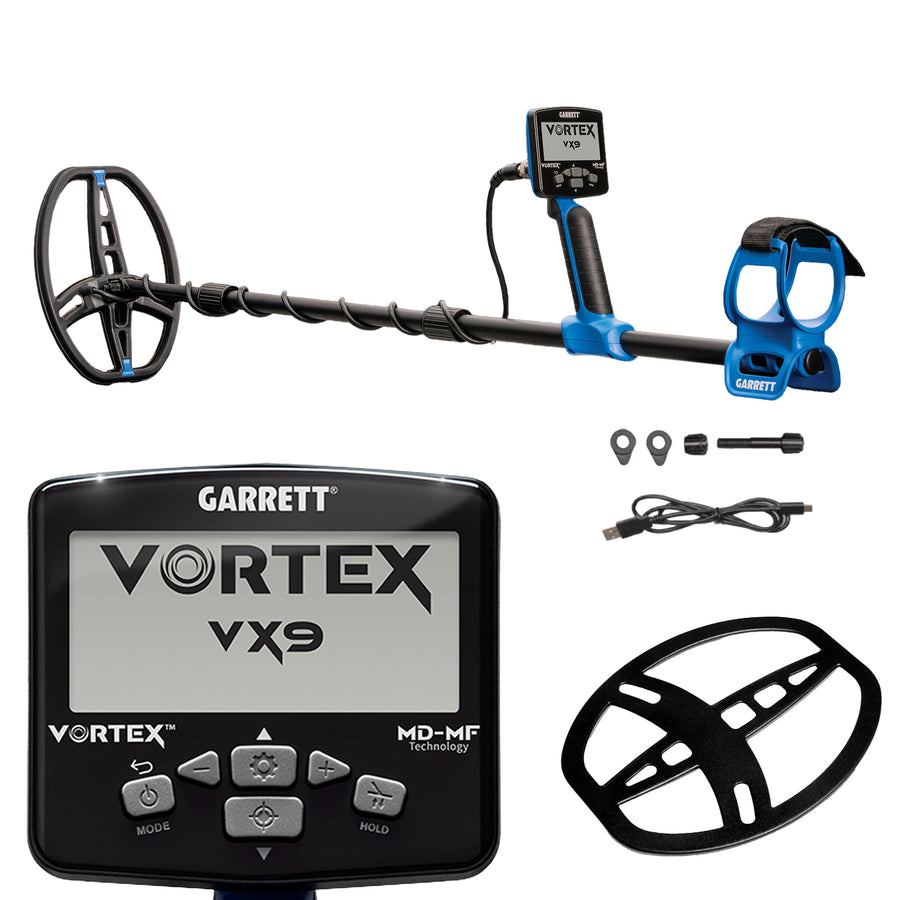

    Garrett Vortex VX9 metal detector with blue and black shaft and 8.5 x 11 inch DD Raider coil

    What is in the box with this open box Garrett Vortex VX9

    Garrett's standard contents for the Vortex VX9 (Garrett part 1143060)

    • Garrett Vortex VX9 control box on its straight stem, with upper and lower stem
    • Arm cuff with strap
    • 8.5 x 11 inch DD Raider searchcoil with coil cover installed
    • Coil nut, bolt and washers
    • USB-C charging cable
    • Quick-Start Guide

    About this open box Garrett Vortex VX9

    Open Box: Metal detectors with damaged or opened packaging, offered at a reduced price. Full manufacturer’s warranty included. Questions about a specific unit? Call us.

    Garrett's 3-year warranty applies to our open box Vortex VX9 the same as on a new one. Every open box and demo detector we have is in our open box collection.

    Garrett Vortex VX9 control box with the three-tier MD-MF target ID display

    About the Garrett Vortex VX9

    The Garrett Vortex VX9 is, in Garrett's words, the professional Vortex model: a fully submersible multi-frequency detector with a 3-tier MD-MF (Multi-Dimensional Multi-Frequency) target ID display, seven search modes, three recovery speeds and the widest frequency choice in the series. It runs simultaneous Multi-Freq. or Multi-Salt, or single frequencies of 5, 9, 13, 18 and 25 kHz, and Garrett rates the whole detector waterproof to 16 feet (5 meters).

    Garrett Vortex VX9 search modes and key settings

    • Seven search modes: Zero, Standard, USA Coins, Thin Coins, Beach, Custom and Fast, plus a Pinpoint button you hold to locate a target precisely. Thin Coins and Fast are VX9 only.
    • Frequencies and channels: Multi-Freq., Multi-Salt, 5, 9, 13, 18 and 25 kHz, with eight channels, independent frequency shifts, for each one.
    • Three-tier target ID: the top scale shows flat, tricky or complex ferrous items, the center scale non-ferrous targets and the lower scale common ferrous targets.
    • Iron tools: Bottlecap Reject and Iron Boundary each with six settings (0 to 5), notch discrimination, high-resolution iron discrimination, Iron Audio for distinctive responses on iron and steel targets, and Iron Volume with eight levels.
    • Recovery speed and audio: recovery speed 1 to 3, and a choice of 2-tone, 3-tone or 5-tone audio.
    • Sensitivity, ground balance and display: eight sensitivity levels, automatic ground balance with 175 points of resolution, a backlit LCD with battery condition indicator, and a depth indicator in 2 inch (5 cm) steps for a coin-sized target.

    Water and beach hunting with the Garrett Vortex VX9

    Garrett engineers the Vortex for submersible operation down to 16 feet (5 meters), control box included. A button lock keeps the keys from changing settings when you dive below 6 feet (2 meters). Z-Lynk wireless audio stops at the surface: Garrett's manual says radio signals do not transmit through water, so wired headphones must be used under water, through the 1/8 inch headphone jack, and Garrett makes fully submersible Vortex dive headphones for it. For salt water the VX9 has Beach mode and Multi-Salt, which uses a blend of frequencies to help overcome the negative effects of saltwater beaches; Garrett's troubleshooting advice is to use Multi-Salt when the ground balance reads below 50. See our beach metal detectors and waterproof metal detectors.

    Where the Garrett Vortex VX9 works well, and where it does not

    The VX9 is the Vortex we recommend to experienced coin, jewelry and relic hunters who enjoy learning advanced settings, and to anyone who regularly searches ocean beaches. Picture a farmhouse site from the nineteenth century full of rusty square nails and iron fragments with the occasional older coin close to the iron: the three-tier display and adjustable recovery give more information to judge those complicated responses, though no setting guarantees that a coin next to iron will be detected. We would not recommend the VX9 for small natural gold in difficult goldfields; that calls for the Garrett Goldmaster 24k or the Garrett Axiom, depending on ground and budget. For an occasional detectorist who does not need the extra controls, the Garrett Vortex VX5 may be enough, and the Garrett Vortex VX7 sits between the two. See our relic and treasure metal detectors.

    Garrett Vortex VX9 battery, charging and build

    The VX9 runs on an internal lithium-ion battery that Garrett rates at 15 hours typical, depending on settings. It charges through a USB-C port behind a protective cap on the back of the control box; Garrett recommends a 10 W (2 A) or greater power source for the fastest charge, and charging is faster with the detector switched off. The Vortex can also run while plugged into a 5 V USB power pack. Garrett lists the VX9 at 3 lbs (1.38 kg) with the 8.5 x 11 inch coil, adjustable from 24.75 to 56.75 inches (62.86 to 144.14 cm), and the stem collapses to the short length for travel.

    Z-Lynk wireless is built in for Garrett Z-Lynk headphones on land, the built-in speaker shares the overall volume control with the headphones, and any wired headphones with a 1/8 inch plug work.

    Getting started with the Garrett Vortex VX9

    Begin in Multi-Freq. for general detecting and use Multi-Salt in saltwater conditions. Experiment with the three recovery speeds according to target density, learn how Iron Boundary changes mixed ferrous and non-ferrous signals, and keep Bottlecap Reject at moderate settings in parks. Thin Coins mode is worth learning for certain thin, low-conductivity coins, and Fast mode for particularly trashy sites. The common mistake is changing recovery speed, Iron Boundary, Bottlecap Reject and sensitivity all at once: when the responses change, you cannot tell which adjustment caused it.

    Garrett Vortex VX9 specifications

    Specification Garrett Vortex VX9
    Frequencies 5, 9, 13, 18 and 25 kHz, Multi-Freq., Multi-Salt
    Search modes Zero, Standard, USA Coins, Thin Coins, Beach, Custom, Fast
    Target ID 3-tier MD-MF scales
    Recovery speed 3 settings
    Bottlecap Reject and Iron Boundary 6 settings each
    Audio tones 2, 3 or 5
    Increased sensitivity/depth Yes
    Sensitivity 8 levels
    Iron Volume 8 levels
    Channels 8 per frequency
    Ground balance Automatic, 175 points of resolution
    Waterproof Fully waterproof to 16 ft (5 m)
    Searchcoil 8.5 x 11 in DD Raider
    Battery Internal lithium-ion, 15 hours typical, USB-C charging
    Audio Built-in Z-Lynk wireless, speaker, 1/8 in headphone jack
    Length 24.75 to 56.75 in (62.86 to 144.14 cm)
    Weight 3 lbs (1.38 kg) with 8.5 x 11 in coil
    Warranty 3 years, limited parts and labor

    Garrett lists a 3-year limited parts and labor warranty for the Vortex VX9.

    Serious Detecting is a family-owned, authorized Garrett dealer with a showroom in Ypsilanti, Michigan, and our staff help by phone or email.

    See all our Garrett metal detectors.

    Product Specifications
    Specification Name Specification Value
    Detection
    Detector Type Treasure & Relic Detectors and Beach & Underwater Detectors
    Skill Level Beginner / Intermediate and Advanced / Expert
    Detection Technology Multi-Frequency (MF or SMF)
    Frequencies Multi-Frequency, Multi-Salt, 5 kHz, 9 kHz, 13 kHz, 18 kHz, and 25 kHz
    Number of Frequencies 7
    Frequency Type Simultaneous and Selectable
    Search Modes Zero, Standard, USA Coins, Thin Coins, Beach, Custom, and Fast
    Number of Search Modes 7
    All Metal Mode Yes
    Target ID 0-99
    Target ID Segments 0-99 (100 segments)
    Discrimination Adjustable
    Sensitivity 1-8
    Recovery Speed 1-3
    Ground Balance Automatic
    Pinpoint Mode Yes
    Depth Indicator Yes
    Controls & Audio
    Display LCD
    Backlit Display Yes
    Keypad Backlight Yes
    Tone Options 2 tones, 3 tones, and 5 tones
    Adjustable Tone Break Yes
    Adjustable Iron Volume Yes
    Volume Control Yes
    Headphone Jack 1/8"
    Wireless Audio Compatible
    Wireless Audio System Garrett Z-Lynk
    Coil
    Stock Coil Raider 8.5" x 11" (22 x 28 cm) waterproof DD
    Coil Size 8.5" x 11" (22 x 28 cm)
    Coil Type Double-D (DD)
    Coil Shape Elliptical
    Coil Connection Wired
    Waterproofing
    Water Resistance Waterproof
    Waterproof Depth 16 Feet
    Power
    Battery Type Lithium-Ion
    Battery Life 15 hours
    Rechargeable Yes
    Build
    Weight 3 lb / 1.38 kg
    Length (Min) 24.75 in (63 cm)
    Length (Max) 56.75 in (144 cm)
    Adjustable Shaft Yes
    Details
    Color Black and Blue
    Box & Warranty
    Warranty 3 Years
    Service & Support

    Warranty & Product Assurance

    At Serious Detecting, we stand behind the quality of every product we offer. Warranty coverage is provided directly by the manufacturer and may vary depending on the item. We’re here to help you understand your coverage and assist with the warranty process when needed. If you ever have questions or need support navigating a warranty claim, our team is happy to guide you.

    Technical Support & Expert Guidance

    Whether you’re setting up new gear, optimizing performance, or troubleshooting an issue in the field, our knowledgeable support team is here to help. We use this equipment ourselves, so we can offer real-world tips and step-by-step assistance to get you detecting with confidence. Message us anytime and we’ll do our best to get you pointed in the right direction fast.

    Manuals, Resources & Downloads

    Access user manuals, setup guides, safety tips, and technical documentation in our online support center. These resources help you understand your equipment, learn recommended settings, and get the most out of every hunt.

    Replacement Parts & Accessories

    Keep your equipment running strong with genuine parts and accessories. We carry coils, batteries, chargers, protective gear, digging tools, and more — fully compatible with your detector and backed by manufacturer standards. Not sure what fits your model? Just ask — we’re here to help.

    Training & Tutorials

    New to detecting or upgrading to advanced equipment? Our resource library includes helpful guides, maintenance tips, how-to videos, and expert advice from experienced detectorists. From ground balancing and coil choices to target ID basics and field technique, you’ll find the knowledge you need to level up your success.

    Customer Questions & Expert Answers

    Get real answers from outdoor explorers and our product experts. Browse questions about performance, features, and setup — or ask your own to make sure this gear fits your next adventure.

    Does the open box VX9 have the same warranty as a new one?

    Yes. Garrett covers the Vortex VX9 with a 3-year limited parts and labor warranty, and that applies to this open box unit exactly as it does to a sealed one. The warranty runs from your purchase date with us as an authorized dealer, and we handle the paperwork if a claim ever comes up. Open box here means the carton was opened and the detector was inspected by our team; it is complete and fully functional. If you'd rather have a factory-sealed unit, the Garrett Vortex VX9 new is also in stock.

    Answered by Dan P. · September 2026

    What's the difference between the VX9 and the VX7?

    The VX9 adds the full three-tier Target ID scale with two ferrous scales, the Multi-Salt frequency option for saltwater beaches, the Thin Coins and Fast modes, three recovery-speed settings, and 25 kHz and 5 kHz single frequencies on top of the VX7's set. The VX7 is a very capable multi-frequency machine for coins and relics on land; the VX9 is the one to buy if you hunt wet salt sand, competition events, or iron-infested sites where recovery speed and iron sorting decide what you find. Both are submersible to 16 feet and share the same coils. Compare the mid-range model in our Garrett Vortex VX7 collection.

    Answered by Richard T. · September 2026

    Are headphones included with the VX9?

    No. Garrett ships the VX9 with the detector, 8.5" x 11" DD Raider coil, USB charging cable, arm strap, and quick-start guide, and the built-in speaker works fine on its own. The detector has Z-Lynk wireless built in, so the natural add-on is the Garrett MS-3 Z-Lynk headphones, which pair with one press and also carry audio from a Pro-Pointer AT Z-Lynk. For water hunting, Garrett's wired submersible Vortex headphones plug into the 1/8-inch jack. Both are in our metal detector headphones collection.

    Answered by John W. · September 2026

    Can I use the VX9 in saltwater and how deep can it go?

    Yes. The VX9 is fully submersible to 16 feet (5 meters), and Beach mode with the Multi-Salt frequency option is designed for wet salt sand and surf. Multi-Salt runs simultaneous frequencies that cancel the salt response, so the detector stays quiet on the wet slope where single-frequency machines chatter. Rinse the detector in fresh water after every salt session and keep the charging port cap sealed. Other machines built for the same conditions are in our beach metal detectors collection.

    Answered by Dan P. · September 2026

    Which coils fit the Vortex VX9?

    The VX9 uses the Garrett Vortex coil family, and all of them fit the VX5, VX7, and VX9 alike. The 8.5" x 11" DD Raider in the box is the all-purpose coil. The 5" x 8" DD Ripper is the choice for trashy parks and tight spaces, the 6" x 11" DD Viper splits the difference, and the 14" x 11" DD Reaper adds depth and coverage on open fields and beaches. All are submersible with the detector. See the full set in our Garrett Vortex VX9 collection.

    Answered by Richard T. · September 2026

    How do you inspect open box detectors before selling them?

    Each open box unit is unpacked, checked for completeness against Garrett's box contents, powered on, and function-tested by a member of our team who hunts with Garrett equipment. We confirm the display, audio, coil connection, charging, and all search modes work, then repack it. Cosmetically you may see minor handling marks on the carton; the detector itself is in new condition. Because the 3-year warranty, free shipping, 30-day return window, and price match all still apply, open box is simply the same detector for less. Browse everything currently available in our open box and demo detectors collection.

    Answered by John W. · September 2026
