Gold Cube 4 Stack Deluxe Kit with Gold Trommel and Pump

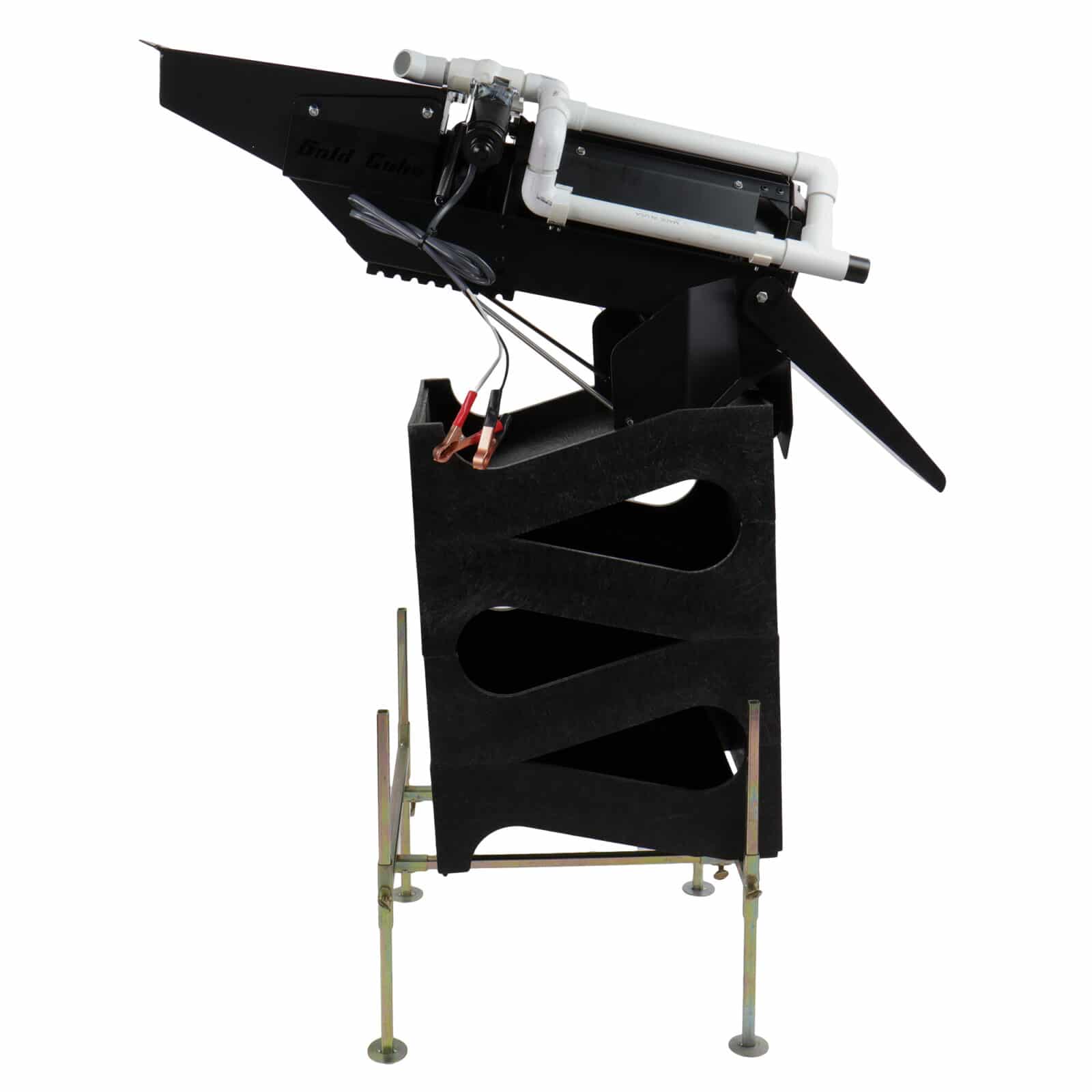

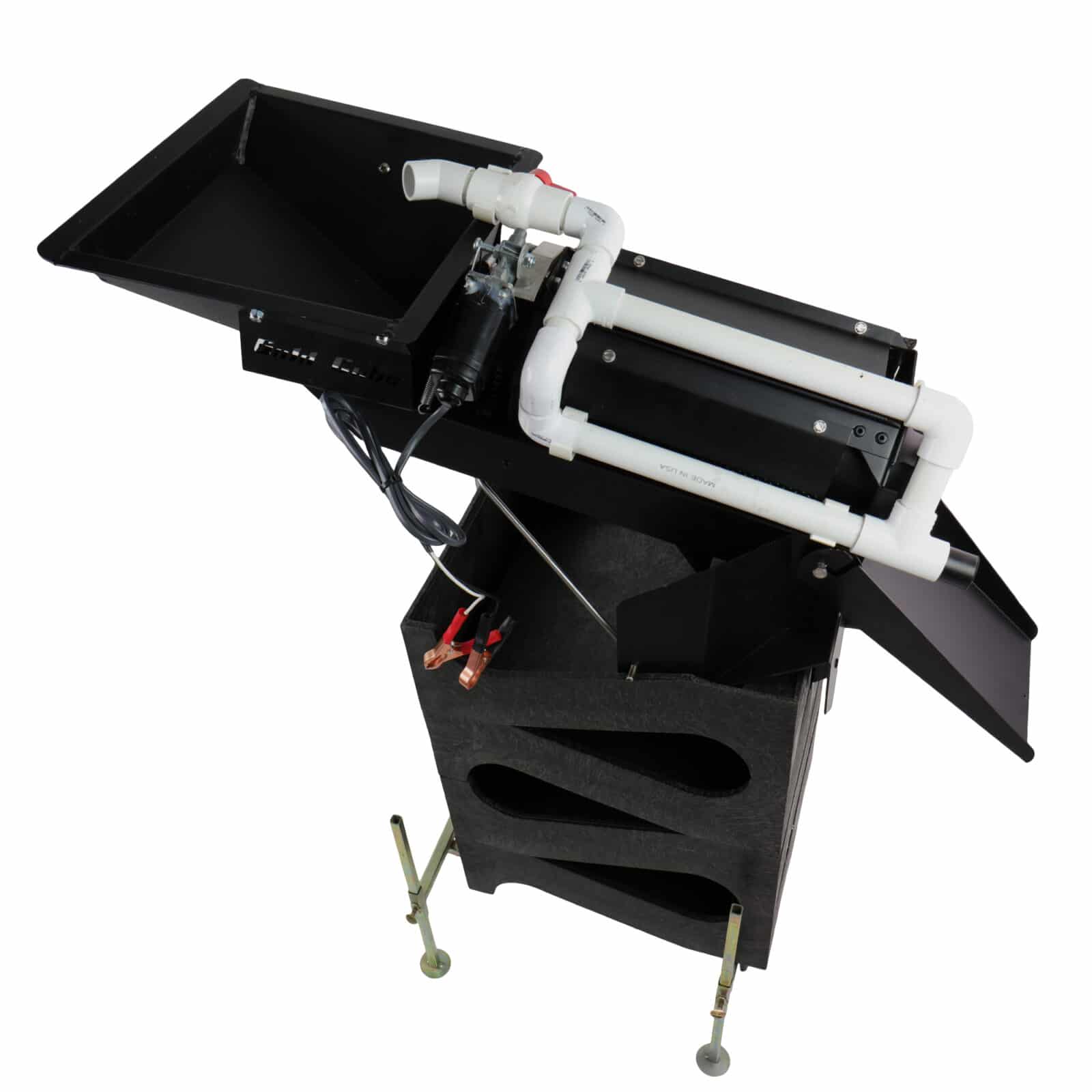

The Gold Cube 4 Stack Deluxe Kit with Gold Trommel is for prospectors who are tired of losing half the day to a classifier bucket. You feed raw dirt into the trommel on top, it screens and washes the material on the way through, and the sluice concentrator below takes what falls out. One person can keep it fed continuously instead of trading off between screening and running.

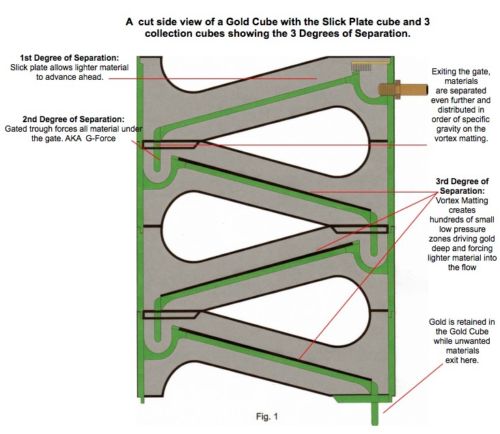

The 4 Stack is the four-tray configuration: one slick plate and three separator trays. That extra tray over the 3 Stack exists for flat gold. Very flat gold, what prospectors call glitter gold, drifts over the riffles of a conventional sluice because water surface tension lets it ride. The Gold Cube forces everything under a gate and below the water line, which breaks that tension and drops the gold into an axial trough. The flatter your gold, the more separation stages you want working on it.

Is the 4 Stack Right for Your Ground, or Is It More Than You Need?

Three cases where something else is the better buy. If your claim sits close to the source and produces chunky, rounded gold, the extra tray is not earning its keep and the 3 Stack Deluxe with the same trommel saves you money for the same workflow. If you already own a Gold Cube, do not buy a second one: the trommel is sold on its own and retrofits to the machine you have. And if you want to process at the water's edge without carrying buckets back to the setup, the version with the Nugget Zone highbanker adds that stage.

Where this kit pays for itself is volume: unscreened material, no pre-classifying, one person feeding all day.

Running the Trommel in the Field

Pitch is the control that earns its money. Raise it and material moves through fast, which suits light creek gravels. Drop it and the barrel holds material longer, giving heavy sand more time under the sprayers before it reaches the Cube. Creek gravel and beach sand behave nothing alike, and without pitch adjustment you end up buying for one and compromising on the other.

Both the hopper and the barrel carry their own sprayers, so material is washed automatically on the way through and the Cube below receives water at the right volume without you managing flow separately. The trommel drives off a low-energy 12-volt gear motor and retrofits to the pump supplied in this kit, so you are not hauling a second pump or a second power source to the water.

The trommel also comes back off. Pull it when you want to run the Cube bare, then remount it for the next trip. If you run the trommel most of the time, a blank tray covers the tray position it occupies.

What's in the Kit

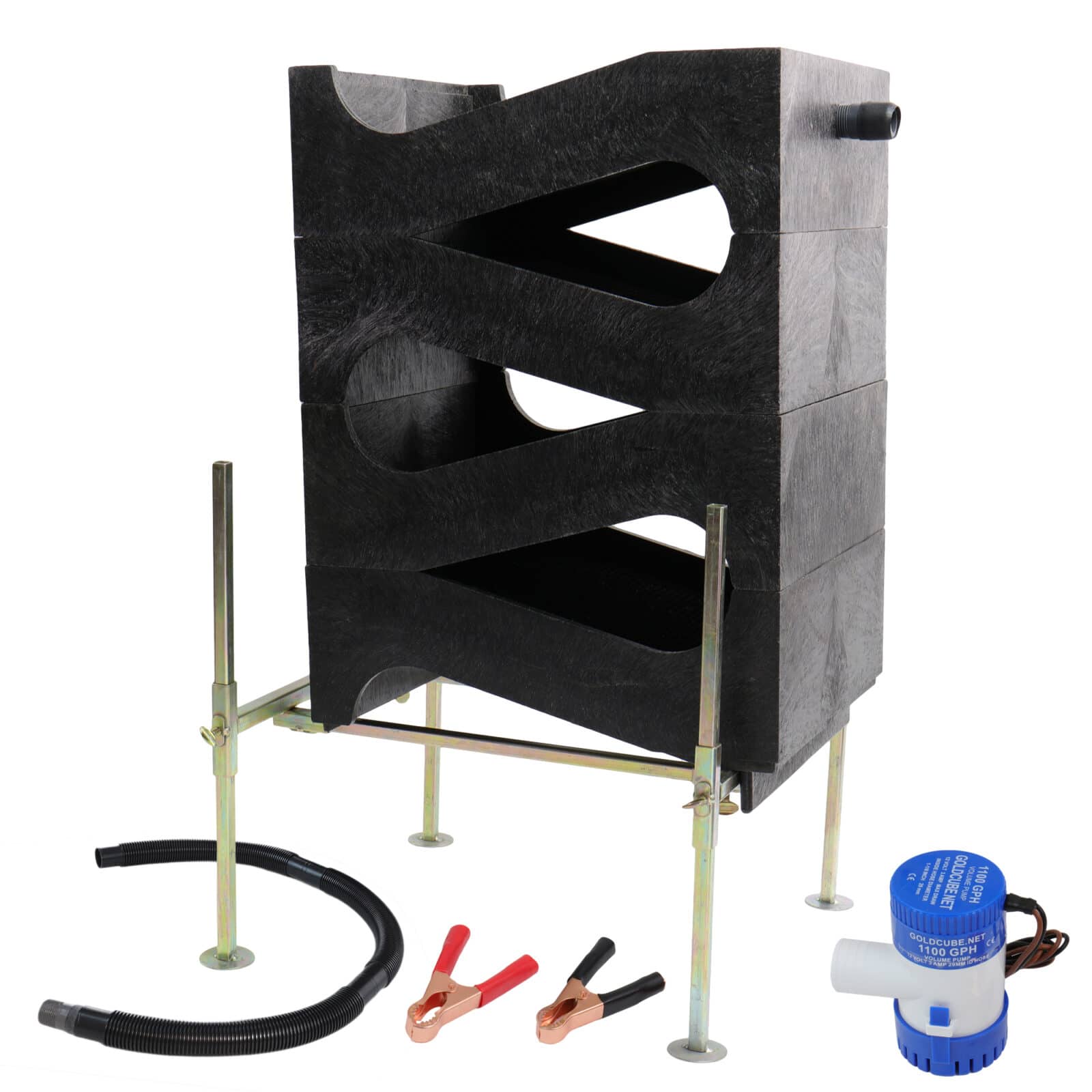

• Gold Cube 4 Stack: one slick plate and three separator trays
• Stand

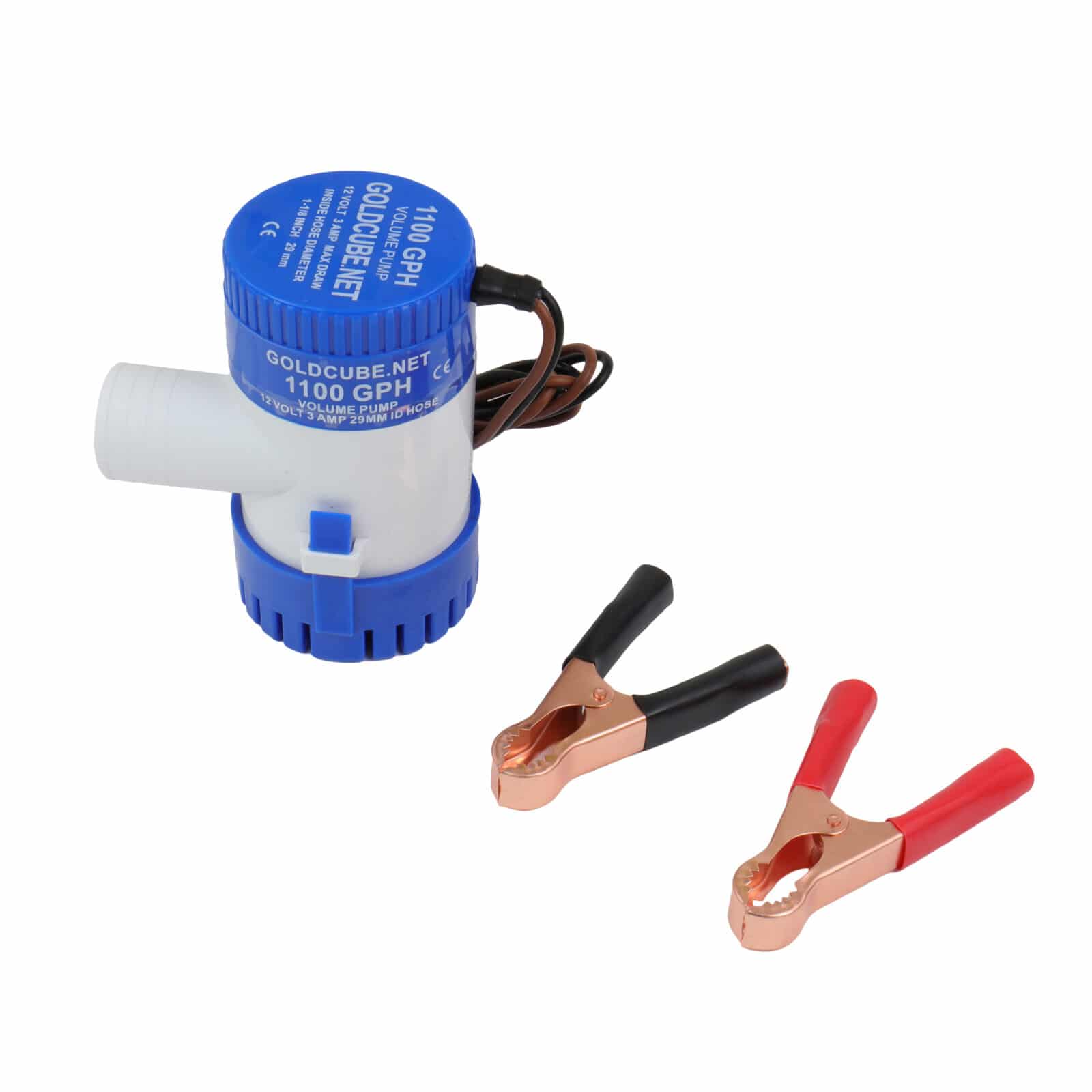

• Pump
• Hose and hose adapters

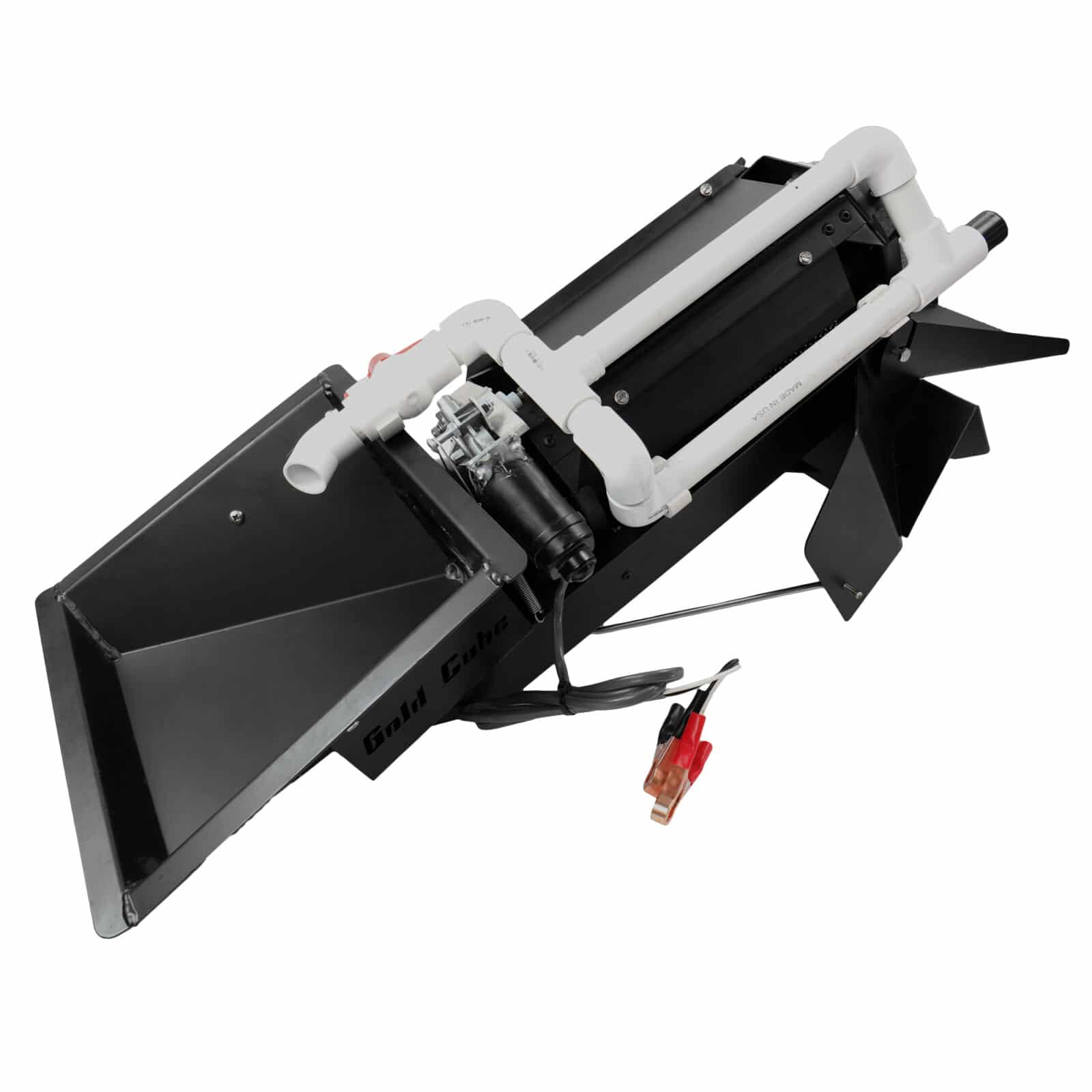

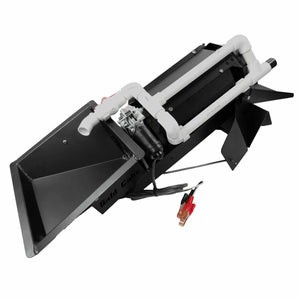

• Gold Cube Trommel with adjustable pitch and low-energy 12V gear motor
• Trommel mounting hardware and drilling template

The trommel is the piece that changes how the day runs. On its own, a Gold Cube expects material already classified to roughly 1/8 inch, which means someone stands over a bucket and a screen. The trommel does that job continuously at 3/16 inch while washing the material, so the Cube sees a clean, consistent feed and you stay on the shovel. This kit does not include a 120-volt wall power supply; that is a separate configuration.

Specifications

Why Buy from Serious Detecting

We are an authorized Gold Cube dealer, so this kit ships with full manufacturer warranty coverage on both the Cube and the trommel. Free shipping, a 30-day return policy, and a price-match guarantee apply to every order. Our team runs this equipment and can talk through pump sizing, stack configuration, or whether your ground actually needs the fourth tray before you spend the money. Browse the rest of the Gold Cube range, or the wider gold prospecting equipment catalog.
