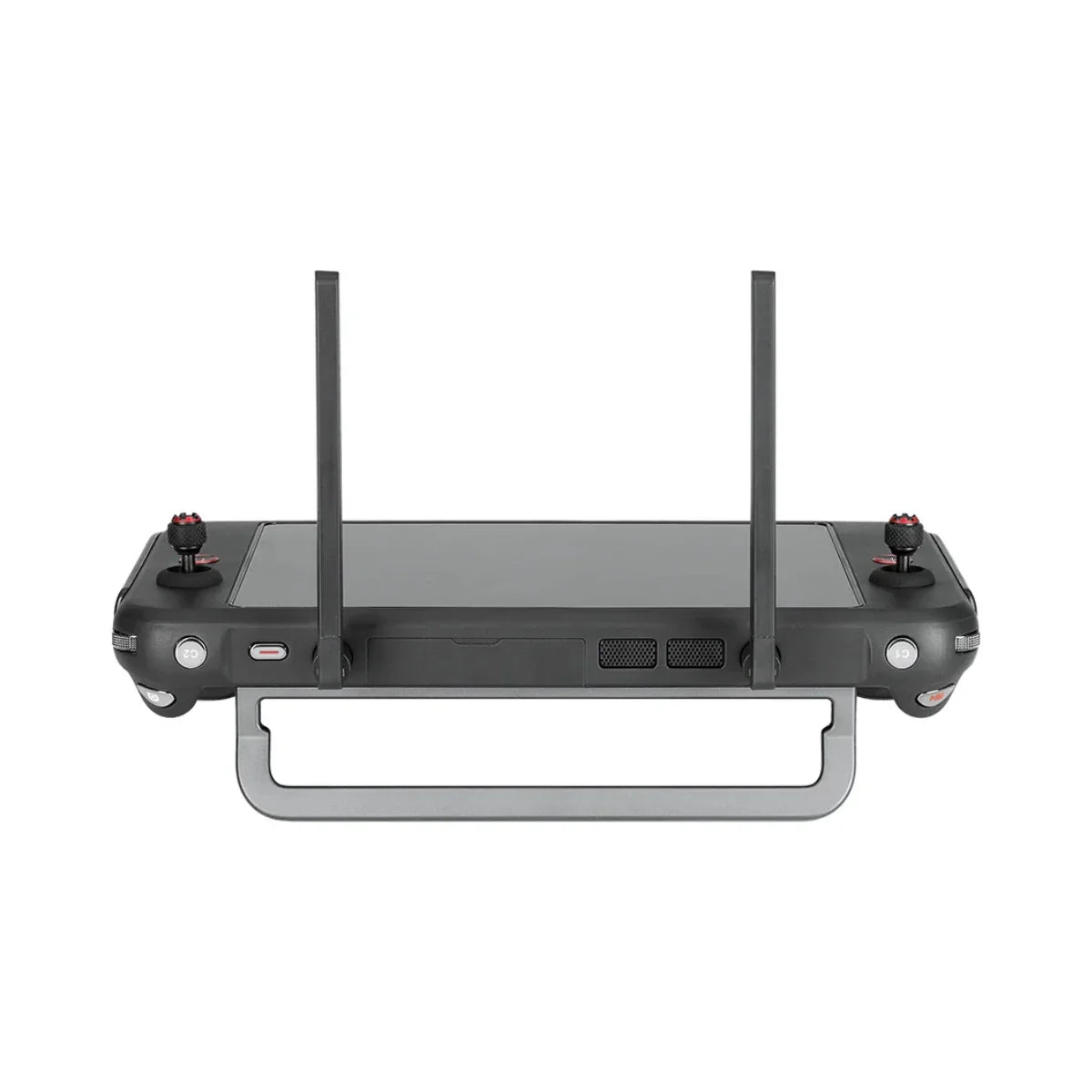

Autel 7.9-inch Smart Controller for EVO II V3 Drones: ultra-bright enterprise control for precision Autel operations
The Autel 7.9-inch Smart Controller for EVO II V3 Drones is a high-performance remote controller designed to deliver reliable control, visibility, and workflow flexibility for professional Autel EVO II enterprise missions. Built around an ultra-bright QHD display, SkyLink 2.0 video transmission, and a customizable Android operating system, the controller enables stable long-range flight operations in demanding environments. Its rugged construction, detachable antennas, and multi-port connectivity support inspection, mapping, and public safety workflows where situational awareness and system responsiveness are critical.
System highlights
- 7.9-inch QHD touchscreen: delivers clear visual feedback during enterprise missions
- 2000-nit maximum brightness: maintains visibility under direct sunlight conditions
- 2048 × 1536 resolution: provides sharp, detailed imagery at 60 Hz
- SkyLink 2.0 transmission: supports multi-band adaptive frequency hopping
- Qualcomm 8-core processor: enables smooth 4K video playback and system performance
- Customized Android OS: supports third-party apps and flexible workflows
- 128 GB internal storage: stores flight logs and media without external cards

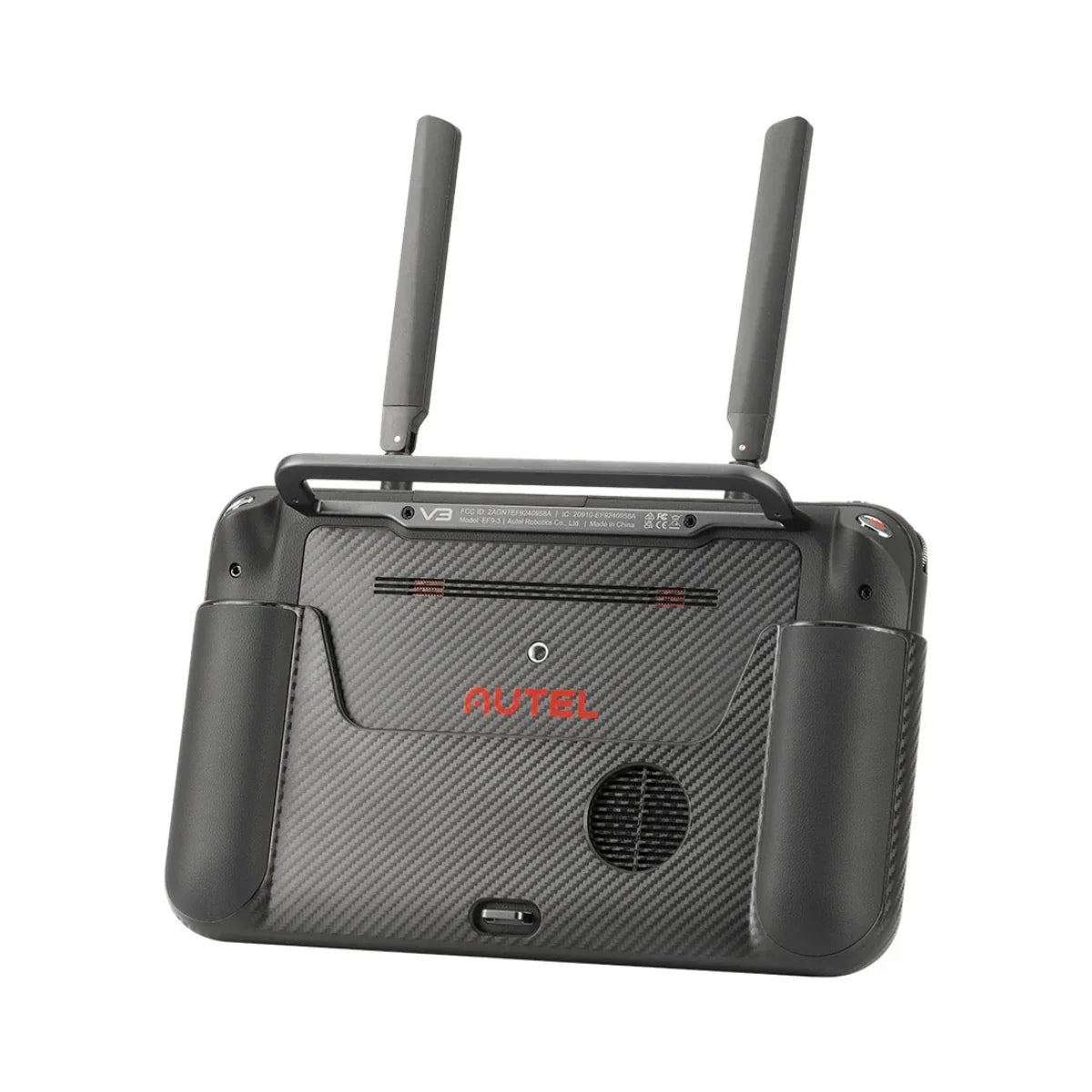

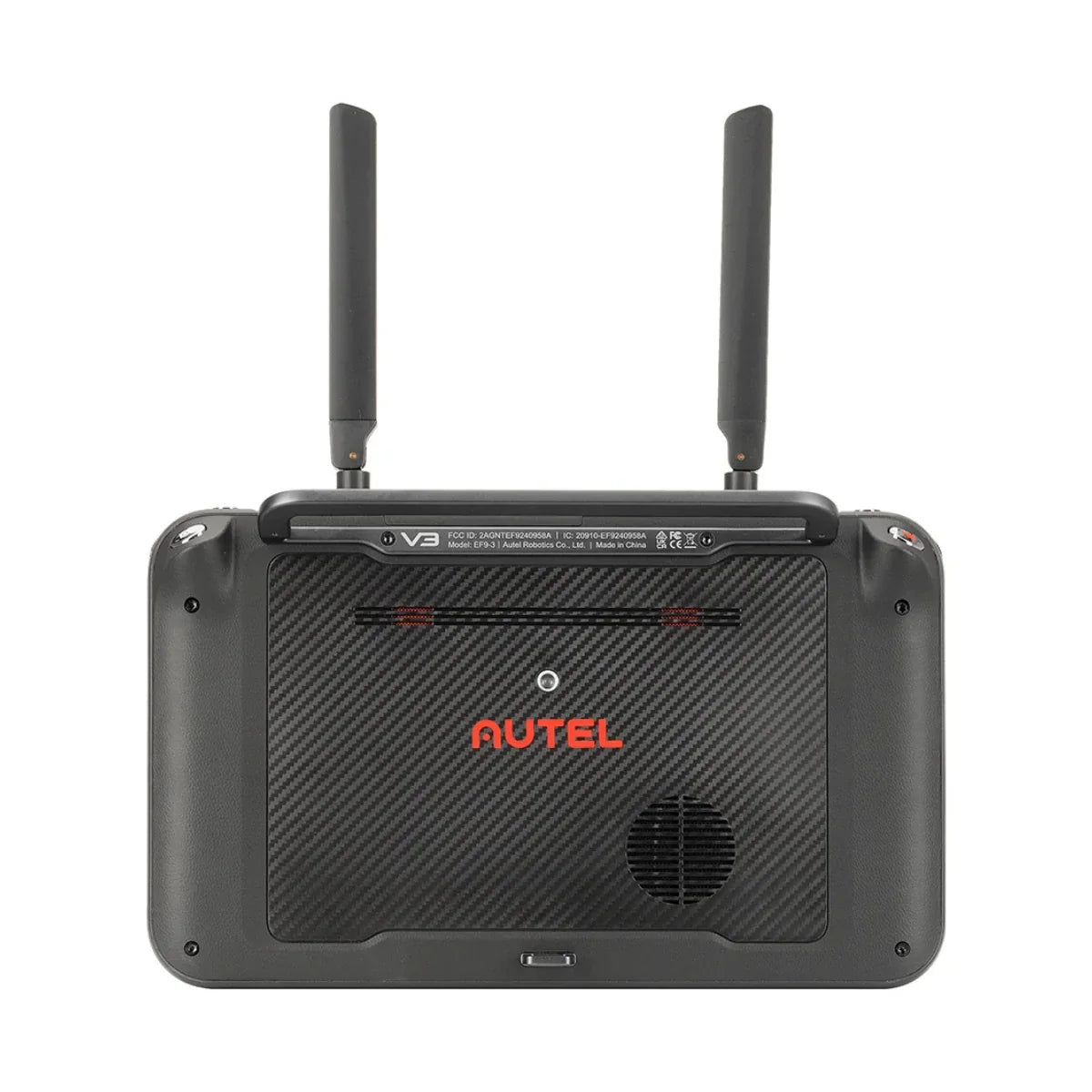

- Detachable dual antennas: allow replacement or upgraded antenna configurations

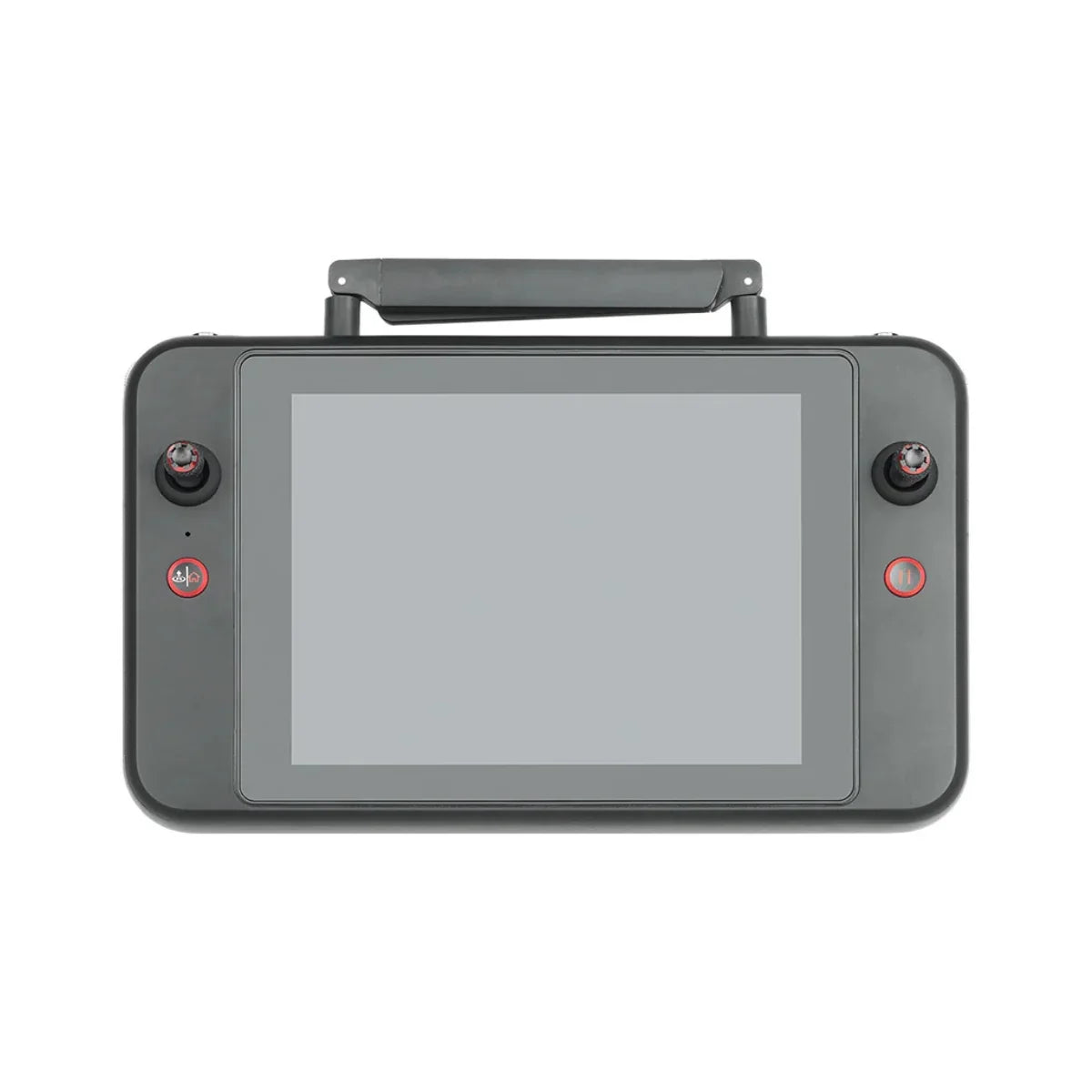

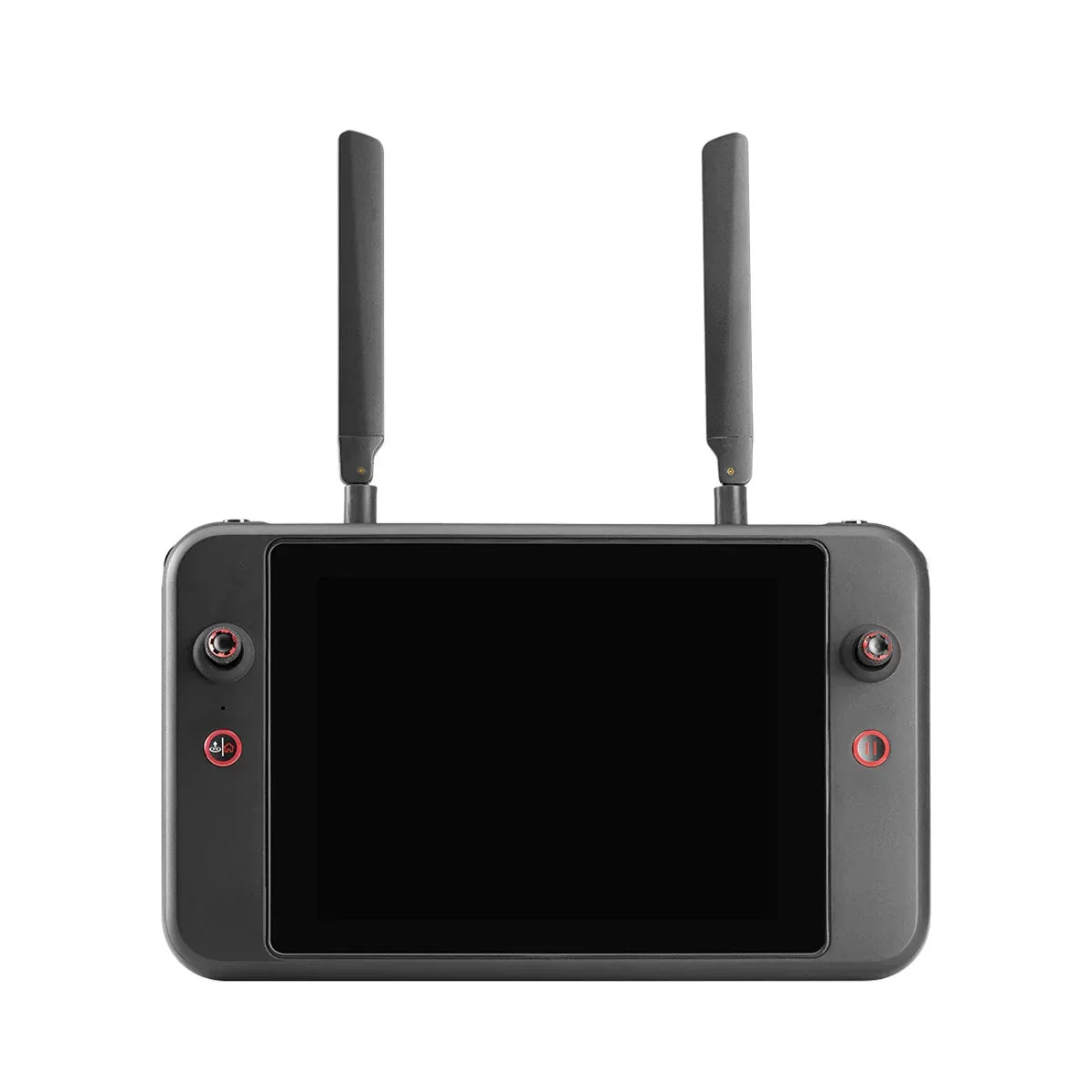

Ultra-bright QHD display built for direct-sunlight operations
The Smart Controller features a 7.9-inch Ultra-HD touchscreen with a native resolution of 2048 × 1536 and a maximum brightness of 2000 nits. Anti-glare coatings and integrated True Tone technology dynamically adjust white balance to improve readability across changing lighting conditions. This display performance allows pilots to maintain clear visual awareness during inspections, mapping flights, and public safety operations conducted under intense sunlight.
SkyLink 2.0 video transmission with adaptive frequency hopping
SkyLink 2.0 supports transmission across 900 MHz, 2.4 GHz, 5.1 GHz, 5.7 GHz, and 5.8 GHz bands, automatically hopping frequencies to minimize interference. The system delivers 2.7K video at up to 0.6 miles (1 km) and maintains 1080p HD video across longer ranges up to approximately 9+ miles (15 km, FCC) in unobstructed environments. This adaptive transmission design supports stable video and control links in complex RF environments.
Flexible Android platform with enterprise connectivity options
Running on a customized Android operating system, the Smart Controller supports third-party applications and workflow customization beyond standard flight control. HDMI, USB-A, and USB-C ports enable live streaming and data connectivity, while SMA antenna connectors allow operators to upgrade antennas as needed. Integrated Wi-Fi and Bluetooth support additional peripherals and network-based workflows for enterprise teams.

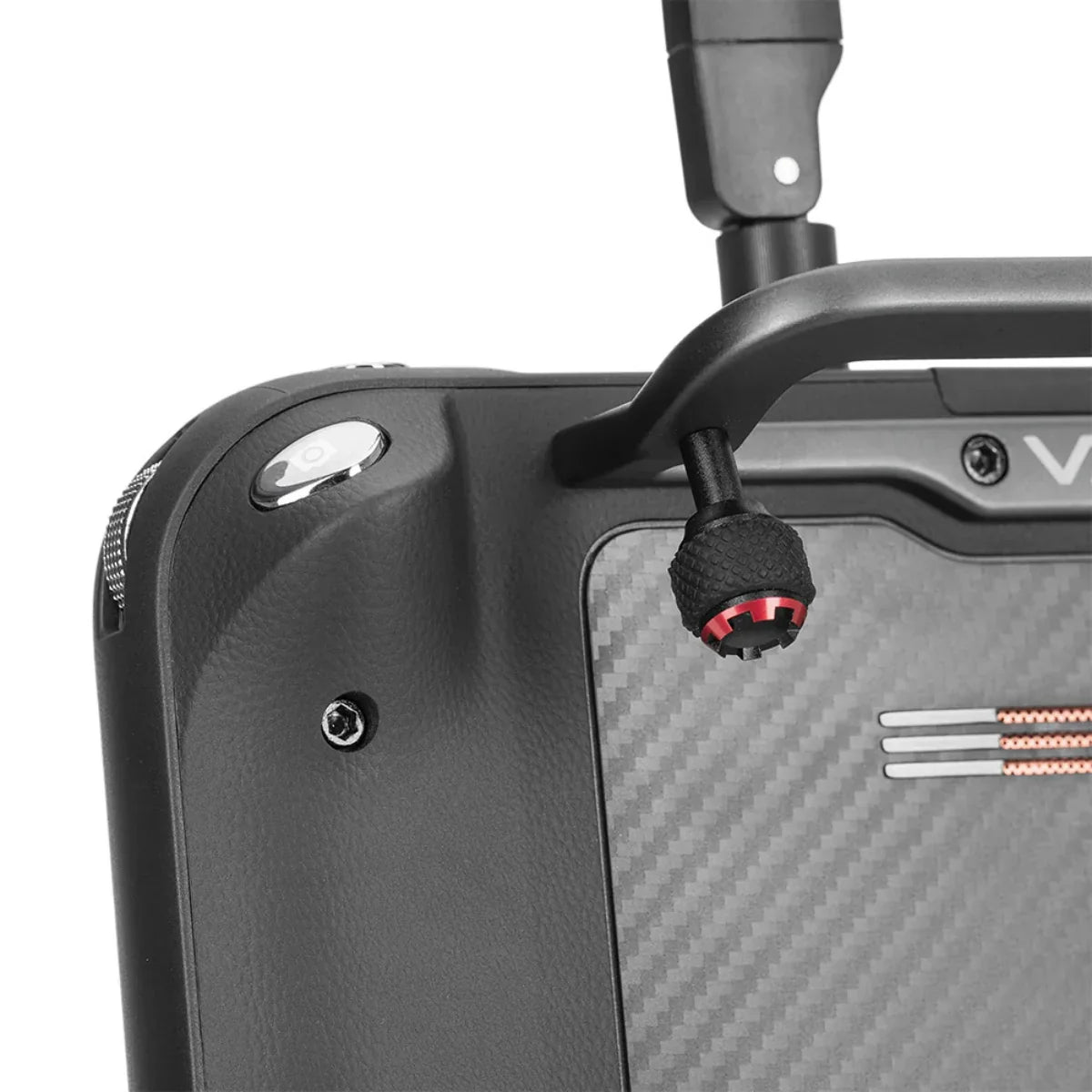

Battery endurance and rugged field-ready construction
The controller is powered by a 5800 mAh lithium battery, delivering up to approximately four hours of operation at 50 percent screen brightness and around 2.5 hours at maximum brightness. Fast charging completes in roughly two hours. Reinforced composite materials, laser-engraved texturing, and an IP43 protection rating support durability in real-world field conditions. The controller operates reliably in temperatures from -4°F to 104°F (-20°C to 40°C).
Supported Autel aircraft platforms
- Autel EVO II Pro V3
- Autel EVO II Dual 640T V3
- Autel EVO II RTK Series V3
- Autel EVO II Enterprise V3
Professional enterprise mission scenarios
- Infrastructure inspection: maintain visual clarity during detailed asset assessments
- Public safety response: support situational awareness in dynamic environments
- Mapping and surveying: execute precise missions with stable telemetry visibility
- Thermal inspections: monitor infrared and visual feeds simultaneously
- Industrial site monitoring: manage operations across large facilities efficiently
- Environmental analysis: collect data under variable lighting conditions
- Search and rescue operations: maintain control visibility during extended missions
- Utility inspections: operate reliably along linear asset corridors
Designed for dependable Autel enterprise deployment
The Autel 7.9-inch Smart Controller is engineered to support professional EVO II V3 operations requiring high display performance, adaptive transmission, and workflow flexibility. Its combination of brightness, processing power, and connectivity options reduces operational friction during complex missions.
The Autel 7.9-inch Smart Controller provides a reliable control interface for enterprise Autel drone operations. DSLRPros supports professional teams with practical guidance and deployment experience, helping integrate this controller into EVO II V3 workflows with confidence—purchase today to support precision aerial missions.
